Tractor · 1944Unverified

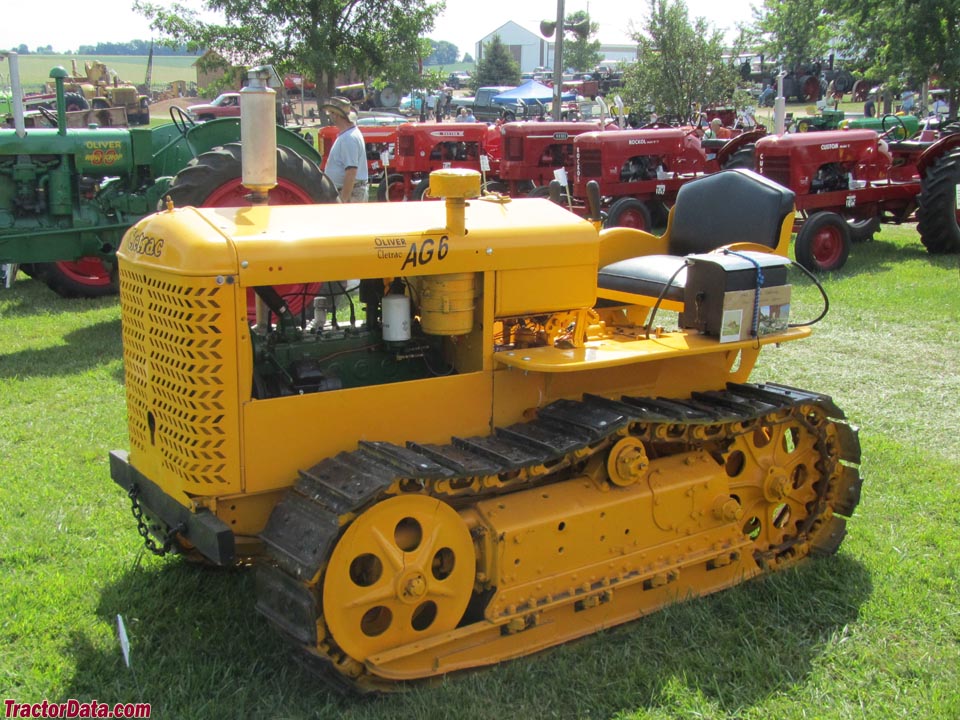

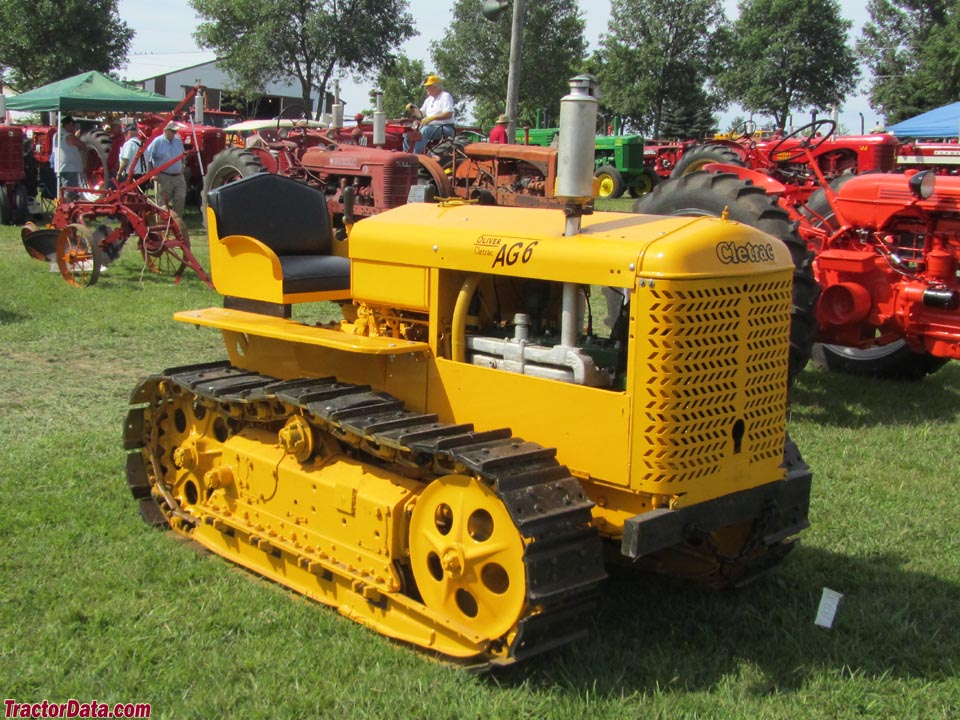

Cletrac AG-6

Name: Cletrac AG-6
Brand: Cletrac

Cletrac AG-6 — Agricultural Crawler tractor · 31 hp. Reference specifications; pending source verification.

The Cletrac AG-6 is a compact tractor model, boasting a rated output of 31 hp. Produced from 1944 to 1957, this model features a 6-cylinder petrol liquid-cooled engine. It is equipped with a 3-speed gearbox and a tracked undercarriage, with a listed weight of 3214 kg. The Cletrac AG-6 is suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

31 hp

Weight

3214 kg

Catalogue coverage

Variants represented

Richest spec table

53 rows

Recorded power

31 hp

Recorded weight

3214 kg

Transmissions

3-speed gear

Production years

1944-1957

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCletrac (a part of Oliver)Reference

Agricultural Crawler tractorReference

DrivecrawlerReference

Steeringwet band brakes with differentialReference

Open operator station.Reference

Engine

Continental 3.7L 6-cyl gasolineReference

Fuel tank68.1 LReference

Drawbar (claimed)22.8 kWReference

Belt (claimed)28.9 kWReference

Plows3 (14-inch)Reference

Continental F226Reference

gasolineReference

6-cylinderReference

liquid-cooledReference

Displacement3.7 LReference

Bore/Stroke84 x 111 mmReference

Fuel systemTillotson 1.125" carburetorReference

Air cleaneroil bathReference

Rated RPM1530Reference

Firing order1-5-3-6-2-4Reference

Oil capacity7.6 LReference

Coolant capacity18.9 LReference

Sparkplug gap0.559 mmReference

Transmission

3-speed gearReference

TypegearReference

Gears3 forward and 1 reverseReference

Clutchdry discReference

PTO & Hydraulics

Rear PTO Type540Reference

Dimensions

Wheelbase157 cmReference

Weight3214 kgReference

12-inch tracksReference

Length262 cmReference

Height137 cmReference

Shipping weight3214 kgReference

Ground clearance30 cmReference

Gauge106 cmReference

Gauge127 cmReference

AG-6 Serial Numbers

19443X0000Reference

19453X1512Reference

19463X3260Reference

19473X4586Reference

19483X6062Reference

19493X7644Reference

19503X8452Reference

19513X8456Reference

FAQ: How to read a serial number table.Reference

Capacities

Diameter26 cmReference

Width21 cmReference

RPM1071Reference

Speed897.33 meters/minReference

Electrical

Charging systemDelco-Remy generatorReference

Battery volts6Reference

Cletrac AG-6 Tracks

Width30 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
