Tractor · 1938Unverified

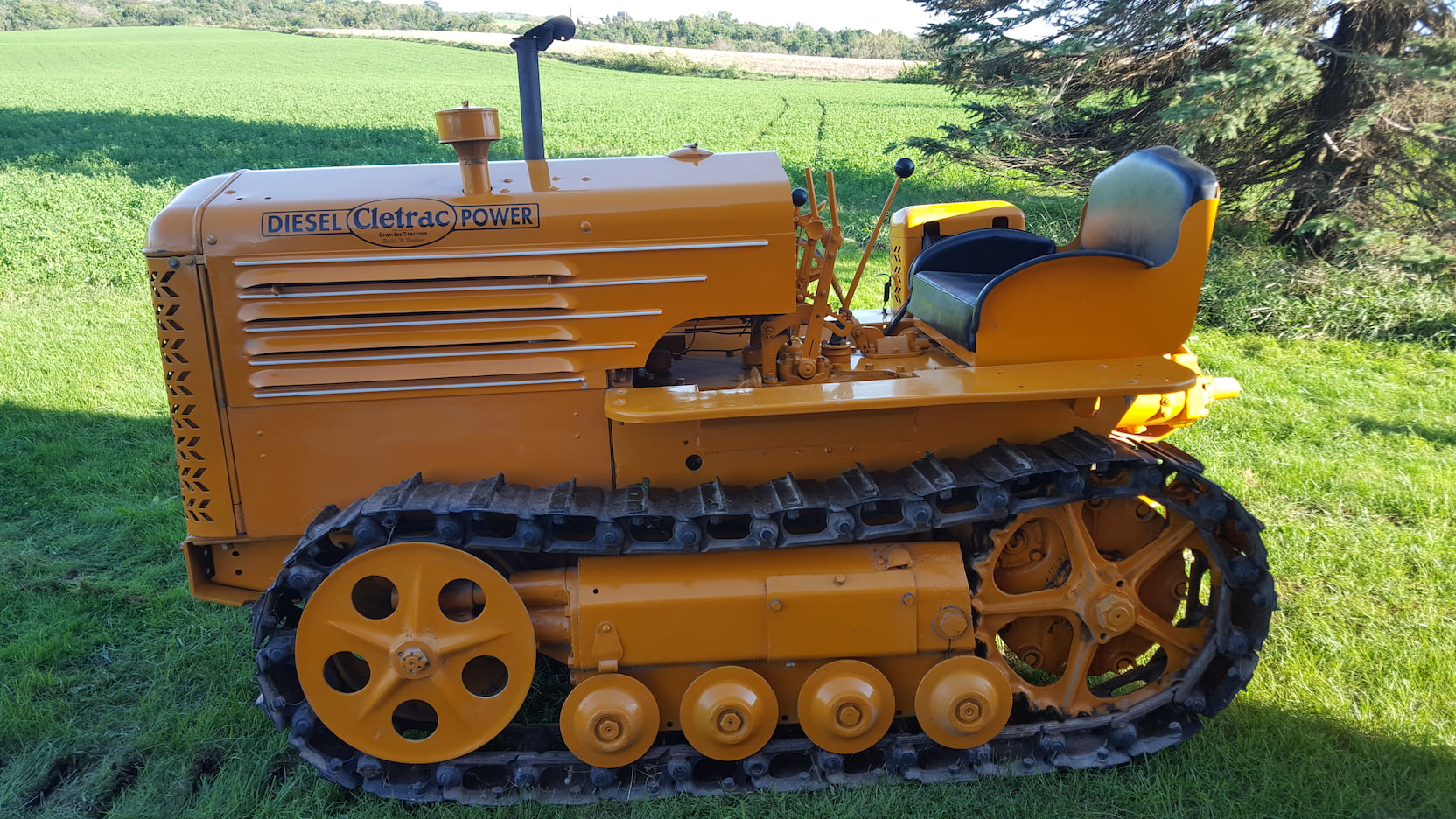

Cletrac ED
Cletrac ED — Agricultural Crawler tractor · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
2698 kg
Hover a source tag to verify
Overview
ManufacturerCletracReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Open operator station.Reference
Variants
EHercules gas engineReference
EDHercules diesel engineReference
ED2Buda diesel engineReference
Engine
Hercules 3.7L 4-cyl dieselReference
Drawbar (claimed)22.7 kWReference
Belt (claimed)28.3 kWReference
HerculesReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.7 LReference
Bore/Stroke102 x 114 mmReference
Rated RPM1530Reference
Starter typeelectricReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Dimensions
Weight2698 kgReference
8-inch tracksReference
Length267 cmReference
Height (steering wheel)140 cmReference
Gauge96 cmReference
Gauge106 cmReference
ED Serial Numbers
19381AA00 (ED-38)Reference
19391AA78 (ED-38)Reference
Final1AA98 (ED-38)Reference
19385AA00 (ED-42)Reference
19395AA90 (ED-42)Reference
19407AA24 (ED-42)Reference
19418AA92 (ED-42)Reference
Final9AA00 (ED-42)Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter26 cmReference
Width21 cmReference
Speed847.34 meters/minReference
Cletrac ED Tracks
Width20 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
