Tractor · 1920Unverified

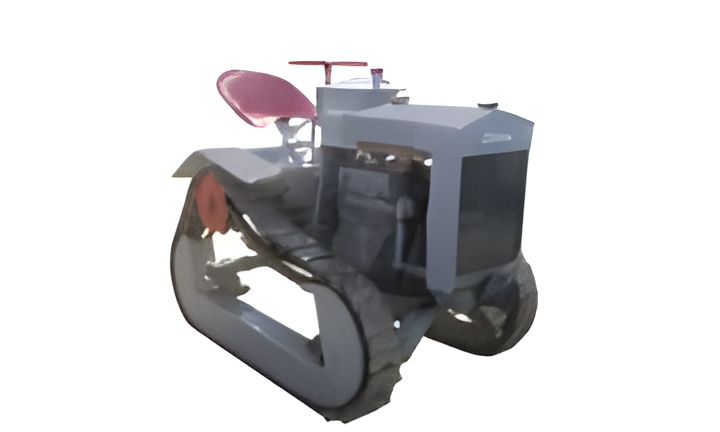

Cletrac F 9-16
Cletrac F 9-16 — Agricultural Crawler tractor · 9 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
9 hp
Max power
9.8 kW
Weight
845 kg
Hover a source tag to verify
Overview
ManufacturerCletracReference
Agricultural Crawler tractorReference
Built in Cleveland, Ohio, USAReference
Original price was $595 in 1922Reference
DrivecrawlerReference
Open operator station.Reference
Engine
Cletrac 2.4L 4-cyl keroseneReference
Drawbar (claimed)6.7 kWReference
Belt (claimed)11.9 kWReference
Plows2 (12-inch)Reference
Drawbar (tested)9.8 kWReference
Belt (tested)14.6 kWReference
CletracReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke83 x 114 mmReference
Rated RPM1600Reference
Belt power (max)14.6 kWReference
Max power9.8 kWReference
Transmission
1-speed gearReference
TypegearReference
Gears1 forward and reverseReference
Dimensions
Weight845 kgReference
5.5-inch tracksReference
Length210 cmReference
Width109 cmReference
Height127 cmReference
F 9-16 Serial Number Location
Serial number plate on top of differential housing.Reference
Capacities
Diameter19 cmReference
Width15 cmReference
RPM1600Reference
Speed914.40 meters/minReference
Cletrac F 9-16 Tracks
Width13 cmReference
Test results
Kerosene crawlerApril 14 - 20, 1922Link: Nebraska Tractor Test 85 fileReference
Drawbar performanceReference
Gear 1 used for power test.Reference
Max pull807 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
