Tractor · 1936Unverified

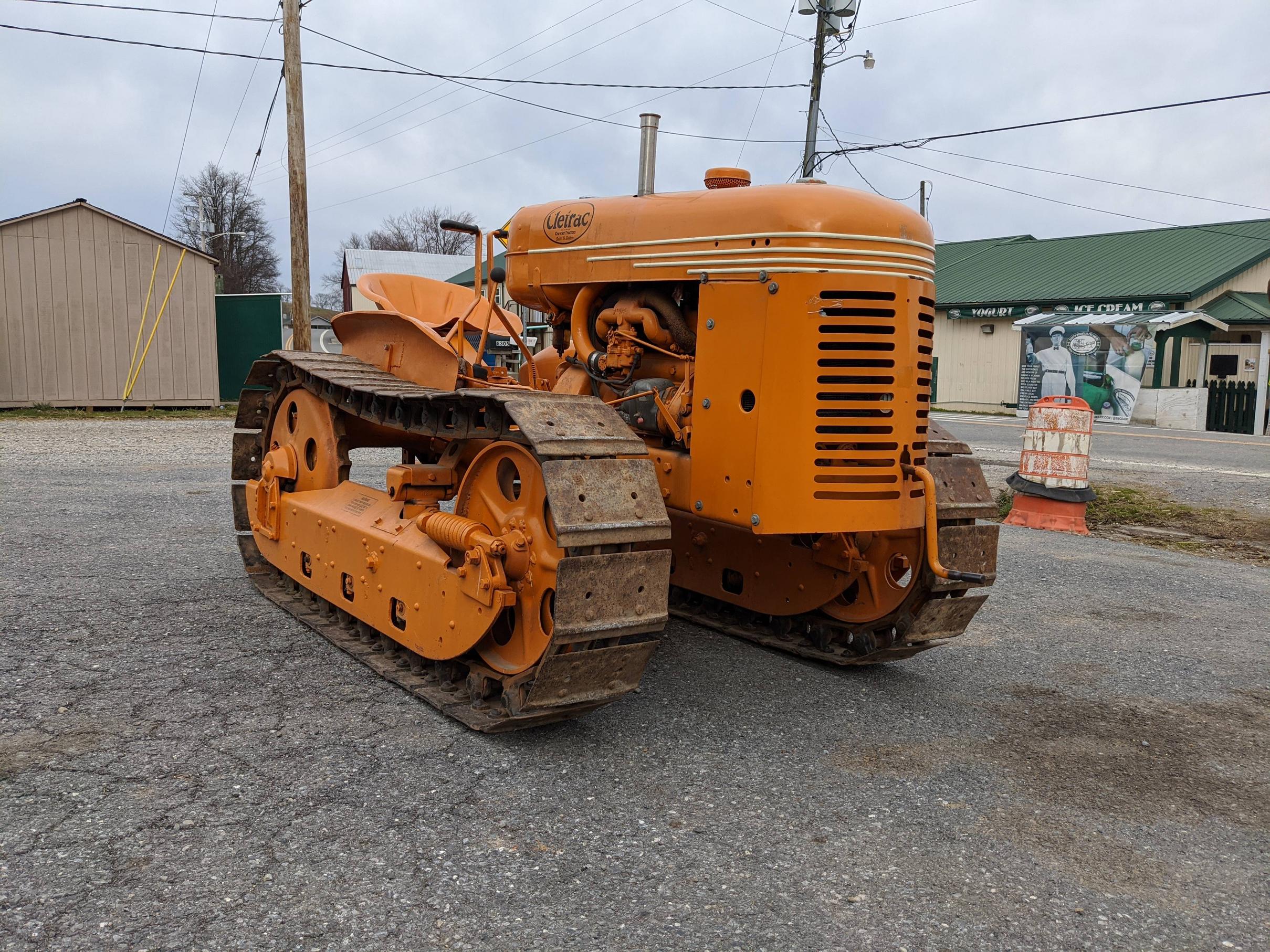

Cletrac FD
Cletrac FD — Agricultural Crawler tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Max power
68.0 kW
Weight
11702 kg
Hover a source tag to verify
Overview
ManufacturerCletracReference
Agricultural Crawler tractorReference
Built in Cleveland, Ohio, USAReference
DrivecrawlerReference
Open operator station.Reference
Variants
FGgasolineReference
FDdieselReference
Engine
Hercules 11.6L 6-cyl dieselReference
Drawbar (claimed)44.7 kWReference
Belt (claimed)59.7 kWReference
Drawbar (tested)68.0 kWReference
Belt (tested)80.0 kWReference
Hercules DHXBReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement11.6 LReference
Bore/Stroke127 x 152 mmReference
Rated RPM1300Reference
Starter typeelectricReference
Belt power (max)80.0 kWReference
Max power68.0 kWReference
Transmission
3-speed gearReference
4-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
ClutchdryReference
Gears4 forward and 2 reverseReference
Dimensions
Weight11702 kgReference
20-inch tracksReference
Length439 cmReference
Width240 cmReference
Height213 cmReference
Gauge170 cmReference
FD Serial Numbers
19366322Reference
19376512Reference
19386690Reference
19398Y094Reference
19408Y366Reference
19418Y474Reference
19428Y684Reference
19438Y772Reference
19448Y910Reference
Final9Y228Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter62 cmReference
Width38 cmReference
RPM535Reference
Speed1021.08 meters/minReference
Cletrac FD Tracks
Width50 cmReference
Test results
Diesel 4-speed crawlerAugust 17 - 30, 1939Link: Nebraska Tractor Test 326 fileReference
Drawbar performanceReference
Gear 1 used for power test.Reference
Max pull9902 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
