Tractor · 1919Unverified

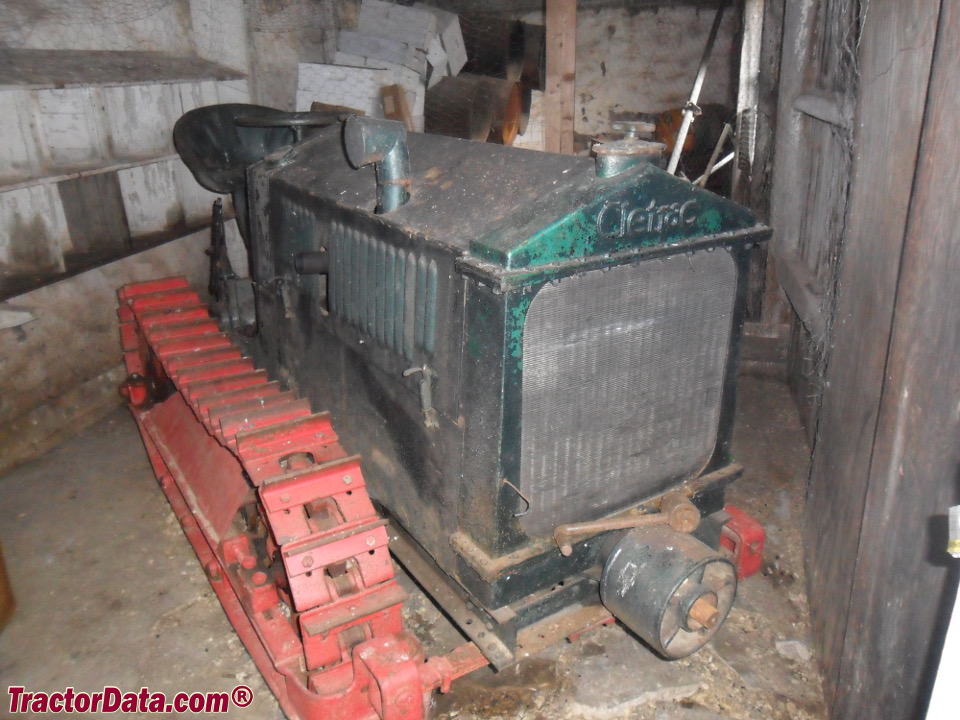

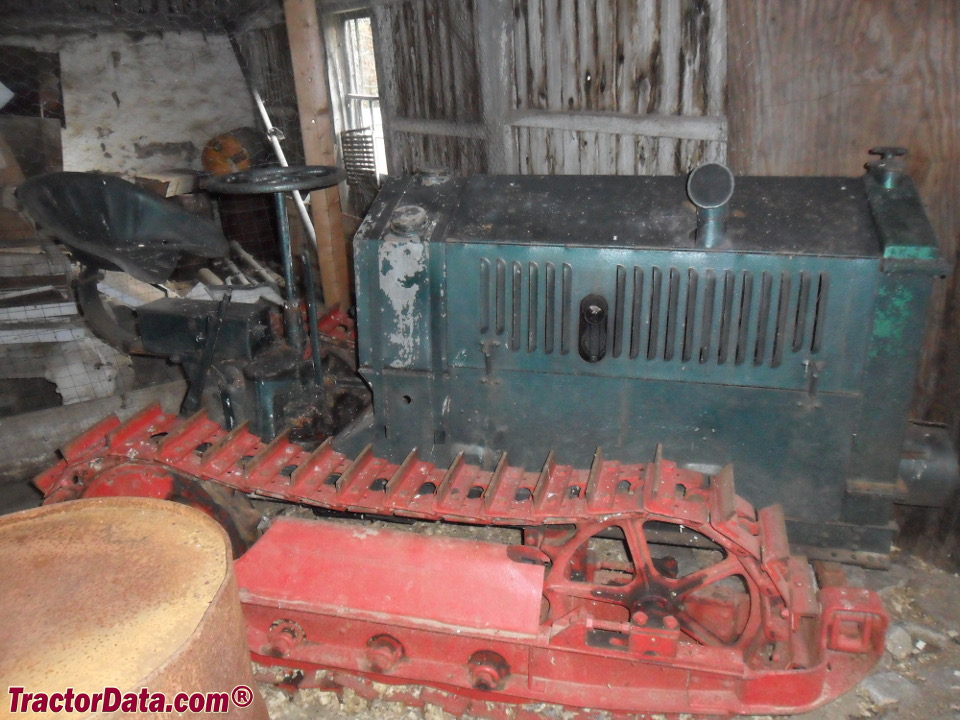

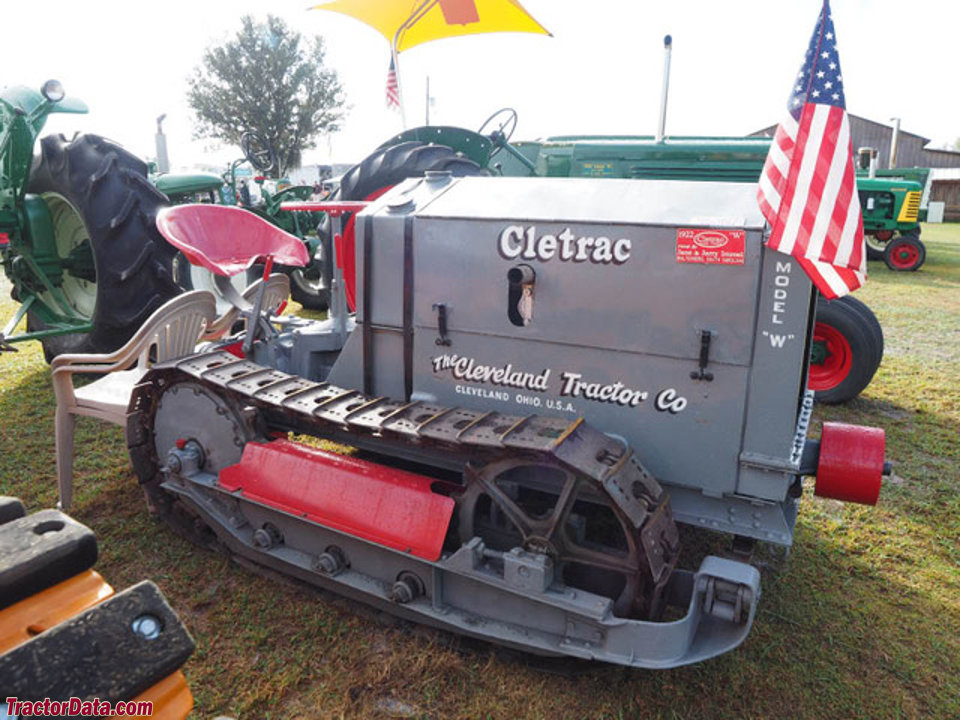

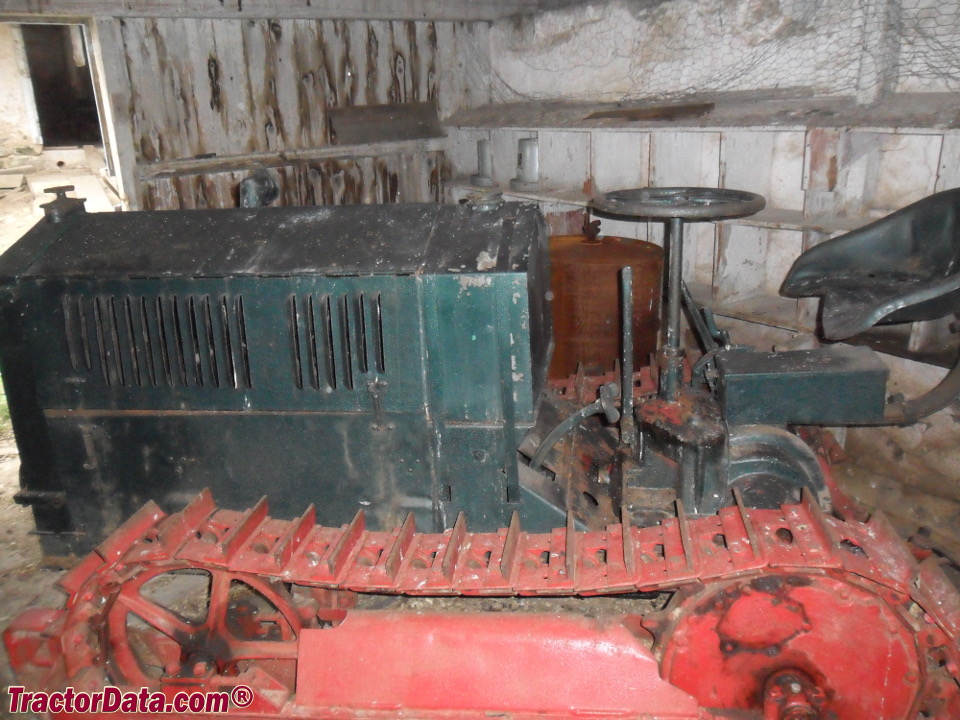

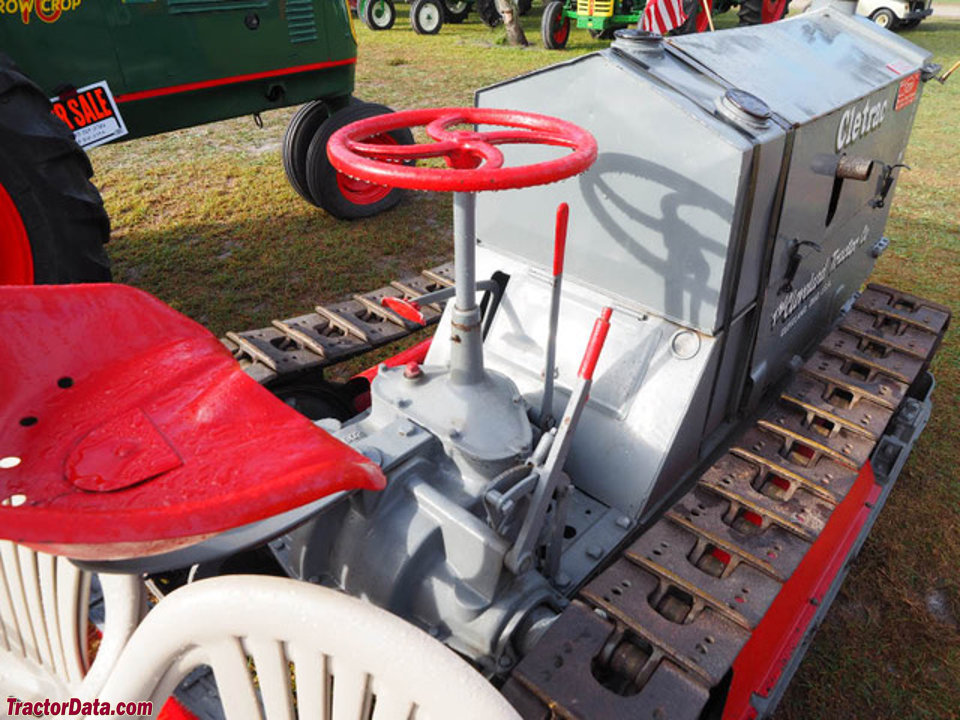

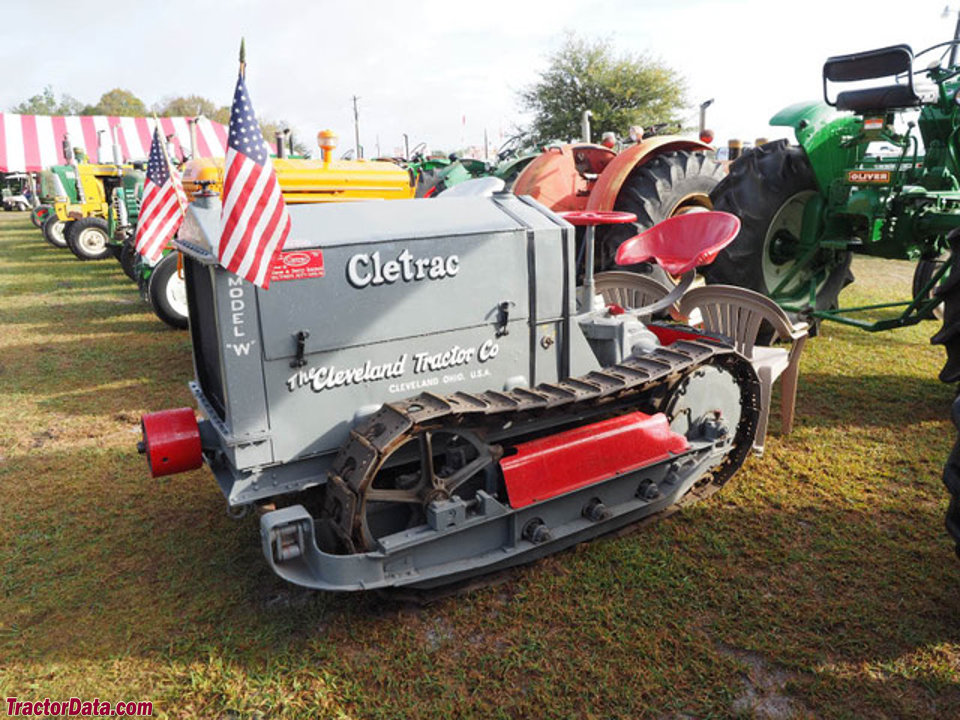

Cletrac W 12-20

Name: Cletrac W 12-20
Brand: Cletrac

Cletrac W 12-20 — Agricultural Crawler tractor · 12 hp. Reference specifications; pending source verification.

The Cletrac W 12-20 is a tractor rated at 12 hp — making it one of the more compact options in its class. It was manufactured from 1919 to 1932. It is powered by a 4-cylinder liquid-cooled engine, driving through a tracked undercarriage with a 1-speed gearbox. Listed weight is 1567 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

12 hp

Max power

11.6 kW

Weight

1567 kg

Catalogue coverage

Variants represented

Richest spec table

40 rows

Recorded power

12 hp

Recorded weight

1567 kg

Transmissions

1-speed gear

Production years

1919-1932

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCletracReference

Agricultural Crawler tractorReference

Built in Cleveland, Ohio, USAReference

DrivecrawlerReference

Open operator station.Reference

Engine

Cletrac 4.5L 4-cyl keroseneReference

Drawbar (claimed)8.9 kWReference

Belt (claimed)14.9 kWReference

Plows3 (12-inch)Reference

Drawbar (tested)11.6 kWReference

Belt (tested)18.6 kWReference

CletracReference

keroseneReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke102 x 140 mmReference

Fuel systemKingston carburetorReference

Rated RPM1265Reference

Belt power (max)18.6 kWReference

Max power11.6 kWReference

Transmission

1-speed gearReference

TypegearReference

Gears1 forward and reverseReference

Dimensions

Weight1567 kgReference

8-inch tracksReference

Length243 cmReference

Width127 cmReference

Height132 cmReference

Capacities

Diameter20 cmReference

Width15 cmReference

RPM1265Reference

Speed762.00 meters/minReference

Cletrac W 12-20 Tracks

Width20 cmReference

Test results

Kerosene crawler crawlerJuly 29 - August 9, 1920Link: Nebraska Tractor Test 45 fileReference

Belt fuel use (max)11.0 l/hourReference

Drawbar performanceReference

Gear 1 used for power test.Reference

Max pull786 kgReference

Gear 1 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
