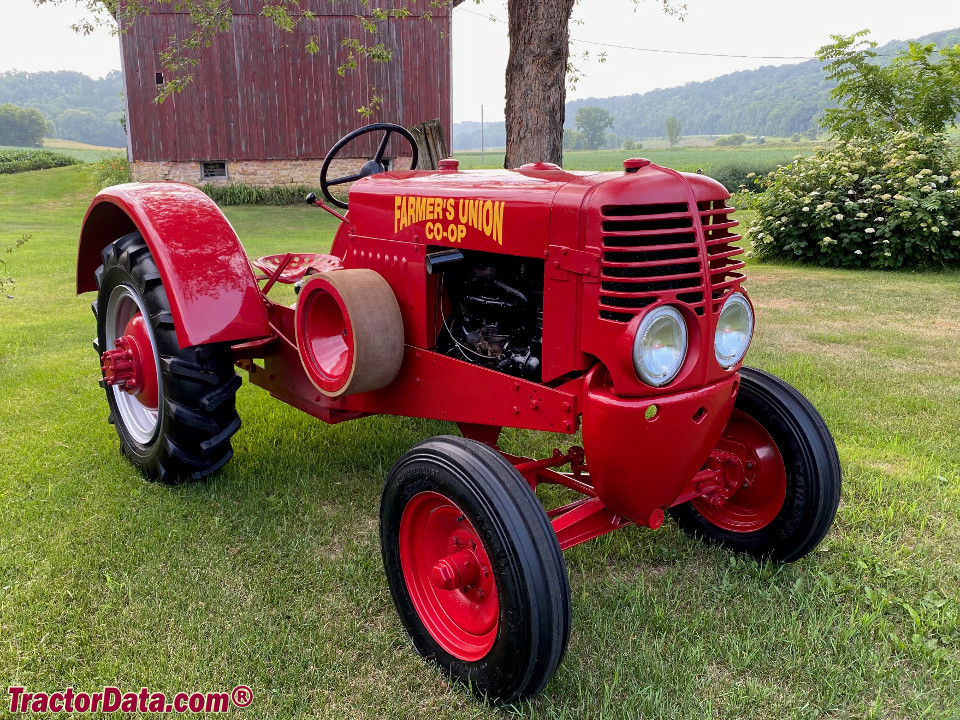

The CO-OP 1 is a tractor model that was manufactured between 1937 and 1938. It features a 4-cylinder petrol liquid-cooled engine and two-wheel drive configuration. The tractor's operating weight is listed at 1496 kg. Operational specifications may be found in the accompanying table, which provides detailed information on UK and US models.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
1496 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded weight
1496 kg
Transmissions
gear
Production years
1937-1938
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorCO-OPReference
ManufacturerDuplex MachineryReference
Row-Crop tractorReference
Built in Battle Creek, Michigan, USAReference
Original price was $1,000 in 1937Reference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Variants
1Athree-wheel tricycleReference
2Afour-wheel tricycleReference
1Crow-crop wide-frontReference
1Dorchard wide-frontReference
Engine
Waukesha 2.2L 4-cyl gasolineReference
Plows1 (14-inch)Reference
WaukeshaReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke83 x 102 mmReference
Air cleaneroil bathReference
Transmission
gearReference
TypegearReference
PTO & Hydraulics
Rear PTOcontinuousReference
Rear PTO Type540Reference
Dimensions
Weight1496 kgReference
Front tire7.50x16Reference
Rear tire10.00-28Reference
Ag front7.50x16 (single)Reference
Ag front5.50x16Reference
Ag rear10.00-28Reference
Ag rear9.00x28Reference
Ag rear11.25x24 (orchard)Reference
Length314 cmReference
Width189 cmReference
Height139 cmReference
Shipping weight1496 kgReference
Rear tread111 to 203 cmReference
Capacities
Diameter40 cmReference
Width17 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
