Tractor · 1970Unverified

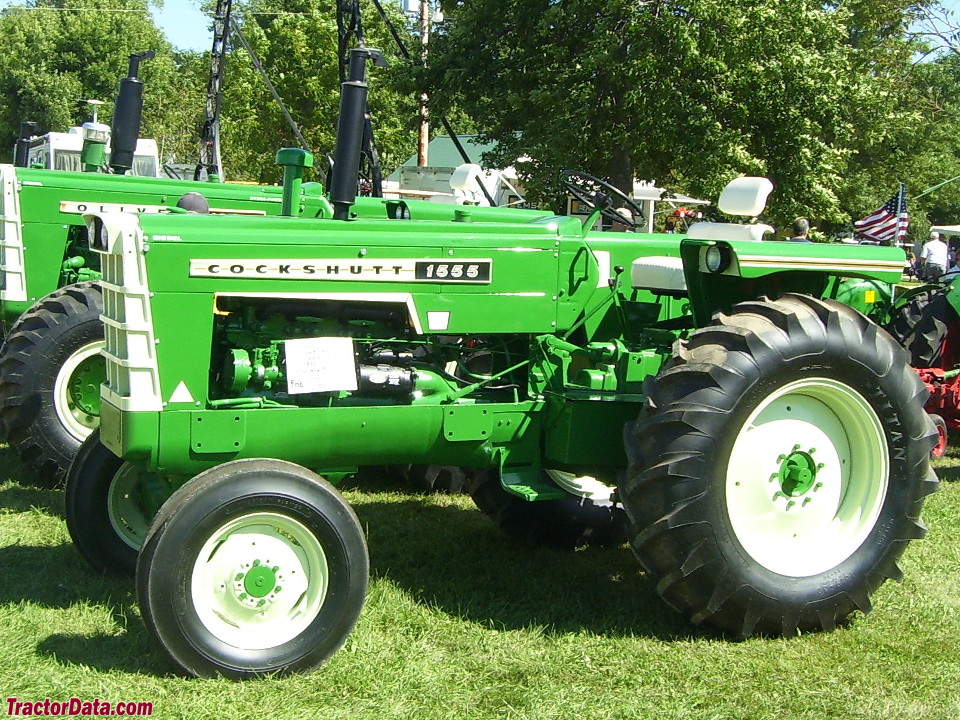

Cockshutt 1555
Cockshutt 1555 — 55 Series · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Max power
34.1 kW
Weight
3103 kg
Hover a source tag to verify
Overview
ManufacturerCockshutt (a part of White)Reference
Row-Crop tractorReference
Original price was $6,500 in 1975Reference
Two-wheel driveReference
Power steeringReference
Disc brakesReference
Open operator station. Cab optional with available heater.Reference
Engine
Waukesha-Oliver 3.8L 6-cyl dieselReference
Waukesha-Oliver 3.8L 6-cyl gasolineReference
Drawbar (tested)34.1 kWReference
Waukesha-OliverReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke92 x 95 mmReference
Air cleanerdryReference
Compression165:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity18.9 LReference
gasolineReference
Compression8:1Reference
Power at rated engine speed39.9 kWReference
Max power34.1 kWReference
Power at rated engine speed39.7 kWReference
Max power33.9 kWReference
Transmission
12-speed partial power shiftReference
6-speed unsynchronized gearReference
TransmissionHydra-PowerReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Clutch279.4mm dry discReference
The Hydra-Power transmission provides a two-speed power shift between direct-drive and the lower Hydra-Power range.Reference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
Oil capacity37.9 LReference
PTO & Hydraulics
PTO (claimed)39.5 kWReference
PTO (tested)39.9 kWReference
Hydraulic system53.0 LReference
Typeopen centerReference
Capacity53.0 LReference
Valves2 to 4Reference
Rear TypeII/IReference
Controllower-link draft controlReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type1000Reference
Rear PTO Type540/1000Reference
Capacities
Fuel104.1 LReference
Dimensions
Wheelbase251 cmReference
Weight3103 kgReference
Front tire7.50-16Reference
Rear tire15.5-38Reference
Ag front7.50-16Reference
Ag rear15.5-38Reference
Ag front5.50-16Reference
Ag front6.00-16Reference
Ag front6.50-16Reference
Ag rear12.4-38Reference
Ag rear13.6-38Reference
Ag rear14.9-38Reference
Ag rear16.9-34Reference
Length392 cmReference
Width207 cmReference
Height (steering wheel)203 cmReference
Height (exhaust)247 cmReference
Shipping weight3103 kgReference
Ground clearance64 cmReference
Front tread130 to 222 cmReference
Rear tread143 to 227 cmReference
1555 Serial Numbers
Location:Serial number plate below instrument panel.Reference
1969218-128Reference
1970221-295Reference
1971225-914Reference
1972232-089Reference
1973236-883Reference
1974244-937Reference
1975256-165Reference
Final262-877Reference
FAQ: How to read a serial number table.Reference
Test results
NTTL 943: diesel Hydra-Power 2WDReference
NTTL 944: gasoline Hydra-Power 2WDReference
Diesel Hydra-Power 2WDJune 8 - 15, 1966Link: Nebraska Tractor Test 943 fileReference
PTO performanceReference
Fuel use16.3 l/hourReference
Drawbar performanceReference
Fuel use16.7 l/hourReference
Gear 4-Hydra used for power test.Reference
Max pull3010 kgReference
Gear 2-Hydra used for pull test.Reference
Gasoline Hydra-Power 2WDJune 8 - 16, 1966Link: Nebraska Tractor Test 944 fileReference
Fuel use18.5 l/hourReference
Max pull3084 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
