Tractor · 1970Unverified

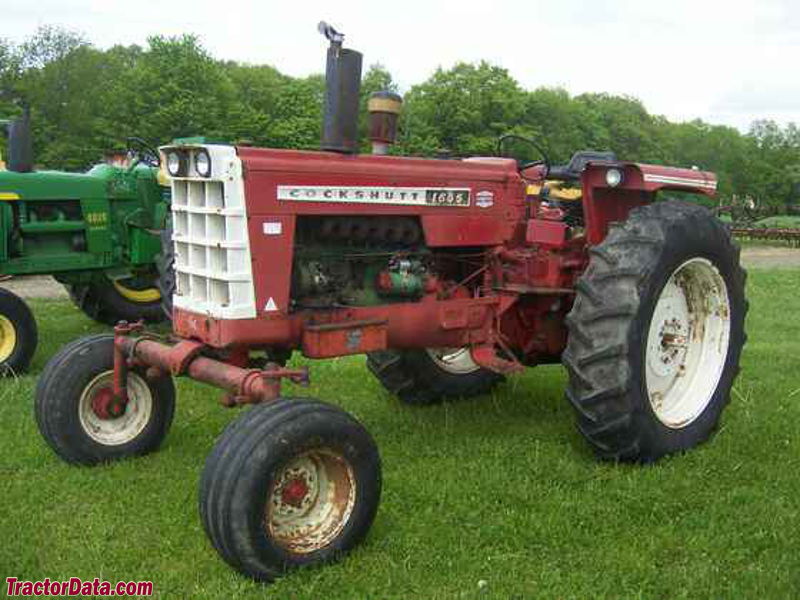

Cockshutt 1655

Name: Cockshutt 1655
Brand: Cockshutt

Cockshutt 1655 — 55 Series · 71 hp. Reference specifications; pending source verification.

The Cockshutt 1655 is a tractor model with a rated output of 71 hp, positioning it within the middle of its class in terms of power. Manufactured from 1970 to 1975, this tractor features a 6-cylinder diesel liquid-cooled engine driving through a four-wheel drive system with a powershift transmission. The listed weight of the Cockshutt 1655 ranges from 7500 to 8000 pounds, and it is designed for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

71 hp

Max power

44.8 kW

Weight

7500 to 8000 pounds

Catalogue coverage

Variants represented

Richest spec table

110 rows

Recorded power

71 hp

Transmissions

18-speed partial power shift

Production years

1970-1975

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCockshutt (a part of White)Reference

Row-Crop tractorReference

Original price was $10,000 in 1975Reference

Two- or four-wheel driveReference

Power steeringReference

Disc brakesReference

Open operator station. Cab optional with available heater.Reference

Engine

Waukesha-Oliver 4.6L 6-cyl dieselReference

Waukesha-Oliver 4.3L 6-cyl gasolineReference

Drawbar (tested)44.8 kWReference

Waukesha-OliverReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement4.6 LReference

Bore/Stroke98 x 102 mmReference

Air cleanerdryReference

Compression16.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity7.6 LReference

Coolant capacity18.9 LReference

gasolineReference

Displacement4.3 LReference

Bore/Stroke95 x 102 mmReference

Compression8.5:1Reference

Firing order1-5-3-6-2-4Reference

Power at rated engine speed52.6 kWReference

Max power44.8 kWReference

Power at rated engine speed52.4 kWReference

Max power42.8 kWReference

Transmission

18-speed partial power shiftReference

6-speed helical gearReference

TransmissionHydraul-ShiftReference

Typepartial power shiftReference

Gears18 forward and 6 reverseReference

Clutch304.8mm dry discReference

The Hydraul-Shift transmission allows a three-speed power shift between over, direct, and under drive for each gear.Reference

Typehelical gearReference

Gears6 forward and 2 reverseReference

Oil capacity30.3 LReference

PTO & Hydraulics

PTO (claimed)52.2 kWReference

PTO (tested)52.6 kWReference

Hydraulic system53.0 LReference

Typeopen centerReference

Capacity53.0 LReference

Valves2 to 4Reference

Rear TypeII/IReference

Controllower-link draft controlReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type1000Reference

Rear PTO Type540/1000Reference

Capacities

Fuel104.1 LReference

Dimensions

2WD Wheelbase252 cmReference

4WD Wheelbase208 cmReference

Weight7500 to 8000 poundsReference

Front tire7.50-16Reference

Rear tire18.4-34Reference

Ag front7.50-16Reference

Ag rear18.4-34Reference

Ag front6.00-16Reference

Ag front6.50-16Reference

Ag front7.50-15Reference

Ag front7.50-18Reference

Ag front11.00L-15Reference

Ag rear12.4-38Reference

Ag rear13.6-38Reference

Ag rear14.9-38Reference

Ag rear15.5-38Reference

Ag rear16.9-38Reference

2WD Length392 cmReference

4WD Length369 cmReference

Width207 cmReference

2WD Front tread156 to 222 cmReference

4WD Front tread152/179 cmReference

Rear tread143 to 227 cmReference

2WD Shipping3402 kgReference

4WD Shipping3628 kgReference

Gasoline Operating3492 kgReference

Diesel Operating3628 kgReference

Ballasted5034 kgReference

Steering wheel203 cmReference

1655 Serial Numbers

Location:Serial number plate below instrument panel.Reference

1969218-025Reference

1970222-600Reference

1971222-761Reference

1972231-772Reference

1973236-586Reference

1974244-735Reference

1975257-700Reference

Final263-340Reference

FAQ: How to read a serial number table.Reference

Cockshutt 1655 Height

2WD Exhaust250 cmReference

4WD Exhaust250 cmReference

Test results

NTTL 1041: diesel 18-speed 2WDReference

NTTL 1042: gasoline 18-speed 2WDReference

Diesel 18-speed 2WDMay 5 - 22, 1970Link: Nebraska Tractor Test 1041 fileReference

PTO performanceReference

Fuel use18.9 l/hourReference

Drawbar performanceReference

Fuel use18.5 l/hourReference

Gear 3-Direct used for power test.Reference

Max pull4126 kgReference

Gear 1-Direct used for pull test.Reference

Gasoline 18-speed 2WDMay 7 - 22, 1970Link: Nebraska Tractor Test 1042 fileReference

Fuel use25.0 l/hourReference

Fuel use24.6 l/hourReference

Max pull3864 kgReference

Speeds

With 16.9-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
