Tractor · 1964Unverified

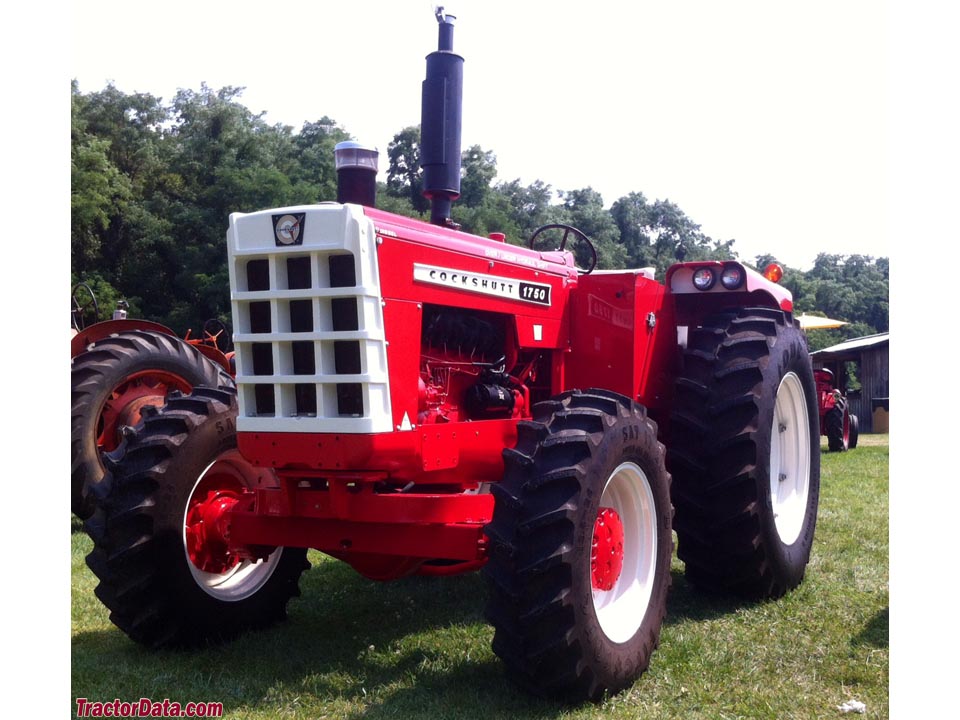

Cockshutt 1750
Cockshutt 1750 — Row-Crop tractor · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Max power
50.0 kW
Weight
8660 to 10660 pounds
Hover a source tag to verify
Overview
ManufacturerCockshuttReference
Row-Crop tractorReference
Built in Charles City, Iowa, USAReference
Original price was $7,400 in 1969Reference
Two- or four-wheel driveReference
Steeringpower assistReference
Differential mechanical disc brakesReference
Open operator station. Oliver Continental Cab optional with available air-conditioning.Reference
Engine
Waukesha-Oliver 4.6L 6-cyl gasolineReference
Waukesha-Oliver 5.1L 6-cyl dieselReference
Plows5-6Reference
Drawbar (tested)50.0 kWReference
Waukesha-OliverReference
gasolineReference
6-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke98 x 102 mmReference
Air cleanerdry with pre-cleanerReference
Compression8.5:1Reference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity7.6 LReference
Coolant capacity18.9 LReference
dieselReference
Displacement5.1 LReference
Bore/Stroke98 x 111 mmReference
Compression16:1Reference
Oil capacity11.4 LReference
Power at rated engine speed59.9 kWReference
Max power50.0 kWReference
Power at rated engine speed59.7 kWReference
Max power48.7 kWReference
Transmission
6-speed unsynchronized gearReference
12-speed partial power shiftReference
18-speed partial power shiftReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
TransmissionOliver Hydra-PowerReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
Six gears (1-6) with two-range Hydra-Power power shift. Hydra-Power provdes a lower ratio and clutchless shifting between the Hydra-Power gear or direct drive.Reference
TransmissionHydraul-ShiftReference
Gears18 forward and 6 reverseReference
Introduced in late 1967, the Hydraul-Shift transmission provided an on-the-move shift to underdrive and overdrive.Reference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
PTO (tested)59.9 kWReference
Hydraulic system18.9 LReference
Typeopen centerReference
Capacity18.9 LReference
Rear TypeIIReference
Rear TypeIIIReference
Rear lift (at 24"/610mm)2721 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM1000@2400Reference
Capacities
Gas Fuel130.6 LReference
Diesel Fuel119.2 LReference
Diesel Fuel295.2 LReference
Dimensions
2WD Wheelbase261 cmReference
4WD Wheelbase219 cmReference
Wheatland Wheelbase247 cmReference
Weight8660 to 10660 poundsReference
Front tire7.50-15Reference
Rear tire18.4-34Reference
Ag front7.50-15Reference
Ag rear18.4-34Reference
Ag front6.50-16Reference
Ag front7.50-16Reference
Ag front7.50-18Reference
Ag front11.00L-15Reference
Ag front11.00L-16Reference
Ag rear20.8-38Reference
Ag rear14.9-38Reference
Ag rear18.4-38Reference
Ag rear16.9-38Reference
Ag rear23.1-26Reference
Ag rear16.9-34Reference
Ag rear15.5-38Reference
2WD Length405 cmReference
4WD Length387 cmReference
2WD Width204 cmReference
4WD Width204 cmReference
Wheatland Width225 cmReference
Ground clearance64 cmReference
2WD Front tread23/36 cmReference
2WD Front tread172 to 227 cmReference
4WD Front tread167/179/203 cmReference
Wheatland Front tread176 cmReference
2WD Rear tread172 to 227 cmReference
4WD Rear tread172 to 227 cmReference
Wheatland Rear tread191 to 212 cmReference
2WD Shipping3928 kgReference
4WD Shipping4835 kgReference
Operating4427 kgReference
Ballasted5511 kgReference
2WD Steering wheel216 cmReference
4WD Steering wheel217 cmReference
Wheatland Steering wheel216 cmReference
Cockshutt 1750 attachments
front-end loaderReference
1750 Serial Numbers
Location:Serial number plate on the support panel for dashboard.Reference
1964140893Reference
1965149835Reference
1966181062Reference
1967185301Reference
1968200217Reference
1969214936Reference
FAQ: How to read a serial number table.Reference
Attachment overview
Oliver 1610 loaderReference
Oliver 1810 loaderReference
Test results
NTTL 961: gasoline Hydra-Power 2WDReference
NTTL 962: diesel Hydra-Power 2WDReference
Gasoline Hydra-Power 2WD5/22/1967Link: Nebraska Tractor Test 961 fileReference
PTO performanceReference
Fuel use26.5 l/hourReference
Drawbar performanceReference
Gear 4-Hydra used for power test.Reference
Max pull4398 kgReference
Gear 2-Hydra used for pull test.Reference
Diesel Hydra-Power 2WDMay 22 - June 12, 1967Link: Nebraska Tractor Test 962 fileReference
Fuel use20.4 l/hourReference
Fuel use20.1 l/hourReference
Max pull4503 kgReference
Speeds
With 18.4-34 rear tires.Reference
