Tractor · 1967Unverified

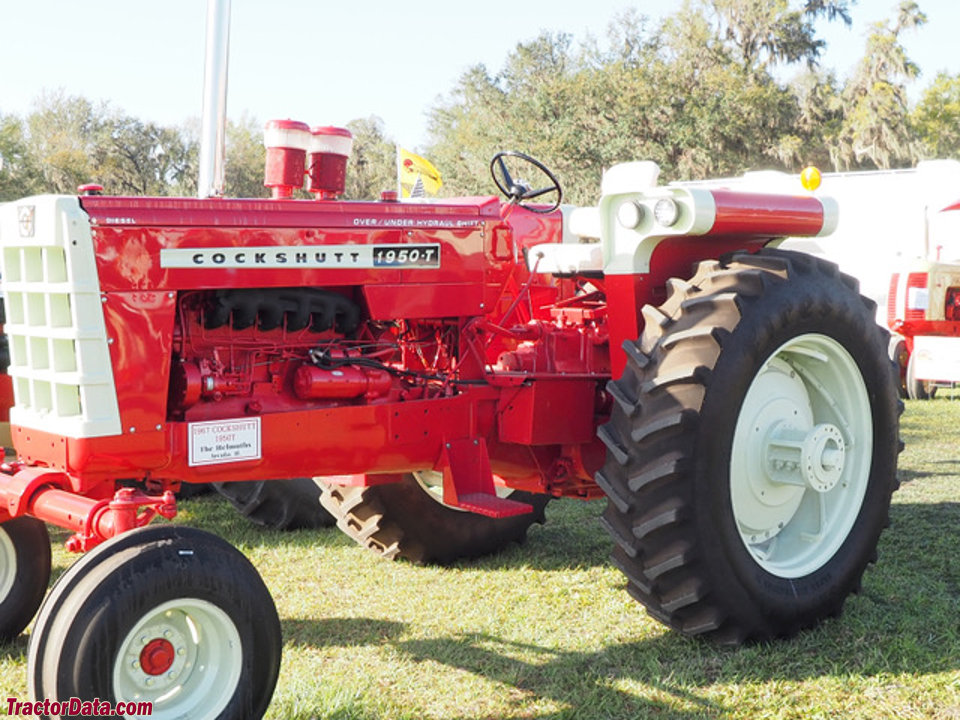

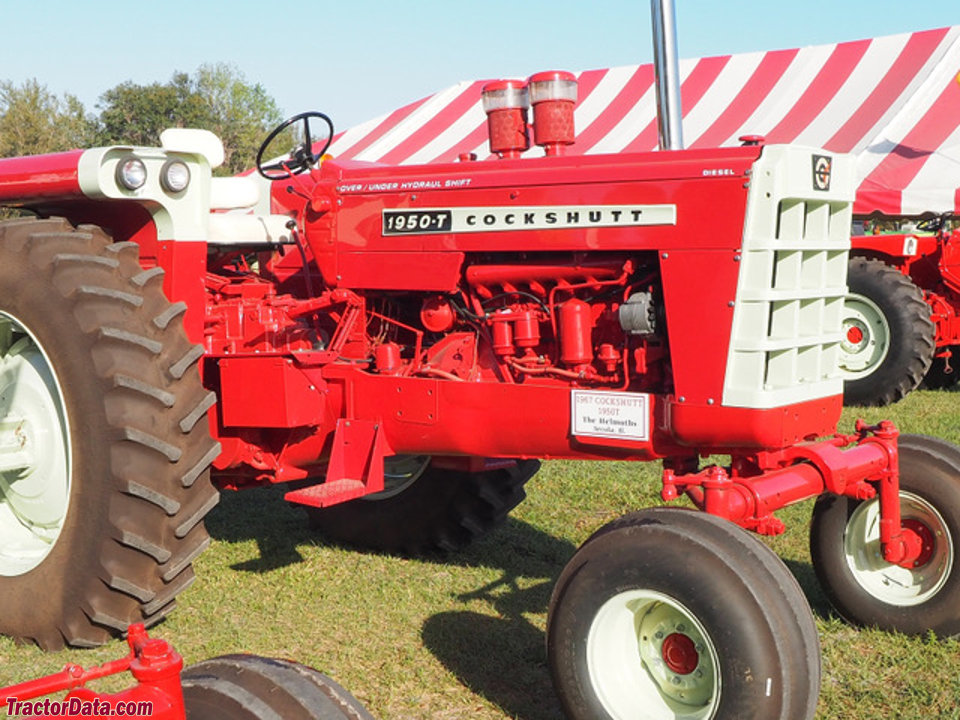

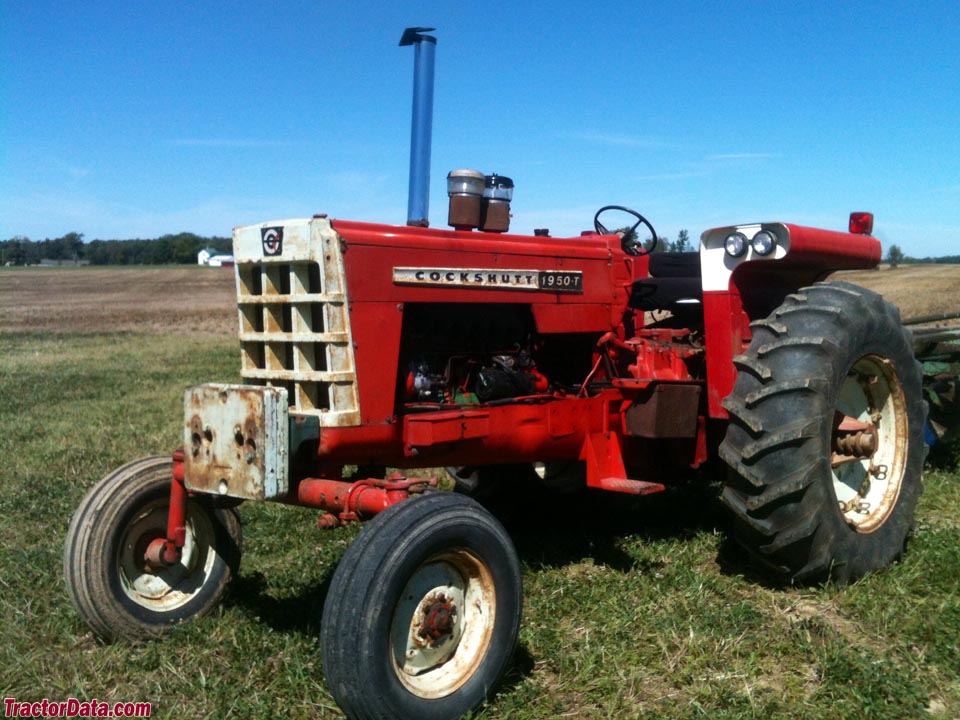

Cockshutt 1950-T

Name: Cockshutt 1950-T
Brand: Cockshutt

Cockshutt 1950-T — Row-Crop tractor · 105 hp. Reference specifications; pending source verification.

The Cockshutt 1950-T is a tractor with a rated power output of 105 hp, placing it in the middle of its class in terms of power. Manufactured from 1967 to 1969, the 1950-T is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which drives through a four-wheel drive system with a powershift transmission. The tractor's listed weight ranges from 10460 to 11490 pounds. It is designed to handle land areas of approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

105 hp

Max power

52.3 kW

Weight

10460 to 11490 pounds

Catalogue coverage

Variants represented

Richest spec table

82 rows

Recorded power

105 hp

Transmissions

6-speed gear

Production years

1967-1969

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCockshuttReference

Row-Crop tractorReference

Two- or four-wheel driveReference

Steeringhydraulic powerReference

Differential disc brakesReference

Open operator station. Optional cab.Reference

Engine

Waukesha-Oliver 5.1L 6-cyl dieselReference

Fuel tank104.1 LReference

Fuel tank295.2 LReference

Drawbar (tested)66.4 kWReference

Waukesha-OliverReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.1 LReference

Bore/Stroke98 x 111 mmReference

Air cleanerdual dry pre-cleanersReference

Compression16:1Reference

Rated RPM2400Reference

Starter volts12Reference

Oil capacity10.9 LReference

Coolant capacity18.9 LReference

Power at rated engine speed78.5 kWReference

Max power52.3 kWReference

Power at rated engine speed78.4 kWReference

Max power66.4 kWReference

Transmission

6-speed gearReference

12-speed two-speed power shiftReference

18-speed partial power shiftReference

TypegearReference

Gears6 forward and 2 reverseReference

Clutch330mm cera-metallic discReference

TransmissionHydra-PowerReference

Typetwo-speed power shiftReference

Gears12 forward and 6 reverseReference

TransmissionHydraul-ShiftReference

Typepartial power shiftReference

Gears18 forward and 6 reverseReference

The Hydraul-Shift provides an on-the-move power shift to a higher or lower range for each of the six forward, and two reverse, gears.Reference

PTO & Hydraulics

PTO (claimed)78.3 kWReference

PTO (tested)78.5 kWReference

Typeopen centerReference

Pressure141.3 barReference

Pump flow63.2 lpmReference

Rear TypeIIReference

Rear TypeIIIReference

Controlposition and lower-link draft controlReference

Rear lift (at ends)2721 kgReference

Rear PTO Type540Reference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase277 cmReference

Weight10460 to 11490 poundsReference

Length405 cmReference

Height (steering wheel)201 cmReference

Ground clearance64 cmReference

Front tread171 to 232 cmReference

Rear tread170 to 276 cmReference

Operating4744 kgReference

Operating5211 kgReference

Ballasted9171 kgReference

Cockshutt 1950-T attachments

front-end loaderReference

1950-T Serial Numbers

Location:Serial number plate below the tractor's instrument panel.Reference

1967188974Reference

1968201931Reference

1969213376Reference

Final218449Reference

FAQ: How to read a serial number table.Reference

Test results

NTTL 969: diesel Hydaul-Shift 2WDReference

NTTL 972: diesel Hydraul-Shift 4WDReference

Diesel Hydaul-Shift 2WDNovember 13 - 18, 1967Link: Nebraska Tractor Test 969 fileReference

PTO performanceReference

Fuel use24.6 l/hourReference

Drawbar performanceReference

Fuel use18.5 l/hourReference

Gear 4-Under used for power test.Reference

Max pull5844 kgReference

Gear 1-Over used for pull test.Reference

Diesel Hydraul-Shift 4WDApril 29 - May 7, 1968Link: Nebraska Tractor Test 972 fileReference

Fuel use25.0 l/hourReference

Gear 3-Direct used for power test.Reference

Max pull8025 kgReference

Gear 1-Direct used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
