Tractor · 1946Unverified

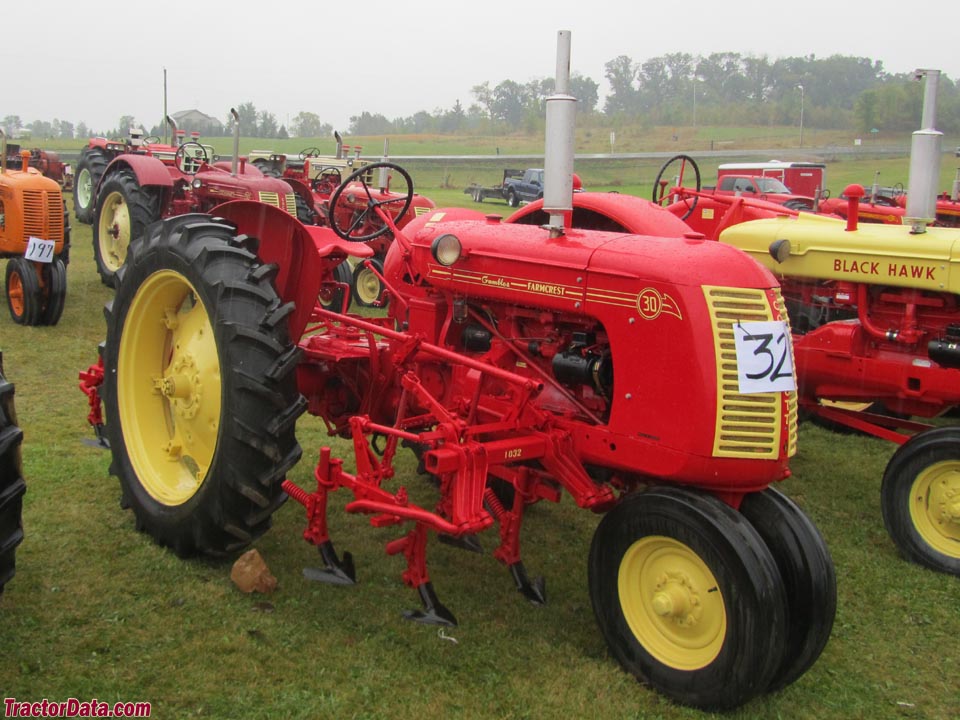

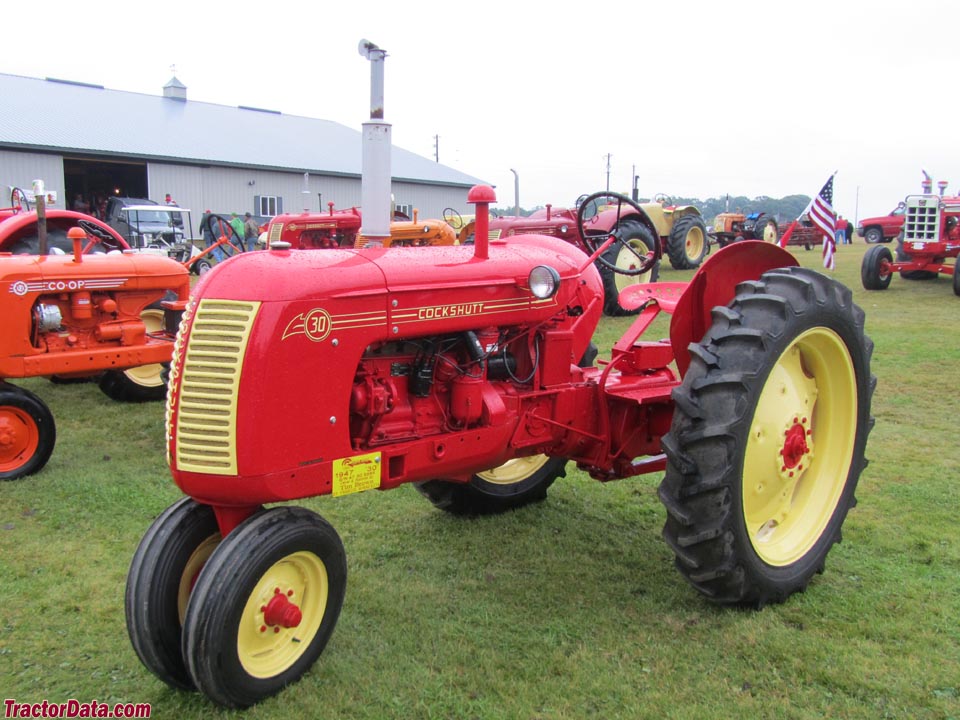

Cockshutt 30
Cockshutt 30 — Row-Crop tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Max power
20.3 kW
Weight
1642 kg
Hover a source tag to verify
Overview
ManufacturerCockshuttReference
Row-Crop tractorReference
Built in Brantford, Ontario, CanadaReference
Total built37,328Reference
Original price$2,500 (1952)Reference
The Cockshutt 30 was the first production tractor built in Canada. The 30 was the first production tractor with a live PTO system.Reference
Two-wheel driveReference
Mechanical contracting band brakesReference
Open operator station.Reference
Engine
Buda 2.5L 4-cyl gasolineReference
Drawbar (claimed)15.7 kWReference
Plows2-3Reference
Drawbar (tested)20.3 kWReference
Belt (tested)23.8 kWReference
BudaReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke87 x 105 mmReference
Compression6:1Reference
Rated RPM1650Reference
Starter volts6Reference
Coolant capacity17.0 LReference
Belt power (max)23.8 kWReference
Power at rated engine speed22.6 kWReference
Max power20.3 kWReference
Transmission
4-speed gearReference
8-speedReference
TypegearReference
Gears4 forward and 1 reverseReference
TransmissionHi-lowReference
Gears8 forward and 2 reverseReference
Adds a high-low shift to the basic four-speed transmission.Reference
PTO & Hydraulics
PTO (claimed)20.9 kWReference
PTO (tested)22.6 kWReference
Hydraulic system5.7 LReference
Capacity5.7 LReference
Rear PTOliveReference
Rear PTO Type540Reference
Capacities
Fuel56.8 LReference
Dimensions
Weight1642 kgReference
Front tire5.50-16Reference
Rear tire11-38Reference
Ag front5.50-16Reference
Ag rear11-38Reference
Length335 cmReference
Height152 cmReference
Operating weight1642 kgReference
Ballasted weight2507 kgReference
30 Serial Number Location
Left-side frame, in front of transmissionReference
30 Serial Numbers
1946101Reference
1947442Reference
19486705Reference
194917371Reference
195026151Reference
195128505Reference
195232389Reference
195335580Reference
195435974Reference
195540001Reference
195650001Reference
195760001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Battery volts6Reference
Test results
Gasoline 4-speed 2WDMay 21 - June 3, 1947Link: Nebraska Tractor Test 382 fileReference
Belt fuel use (max)11.4 l/hourReference
PTO performanceReference
Fuel use9.8 l/hourReference
Drawbar performanceReference
Max pull1698 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
