Tractor · 1958Unverified

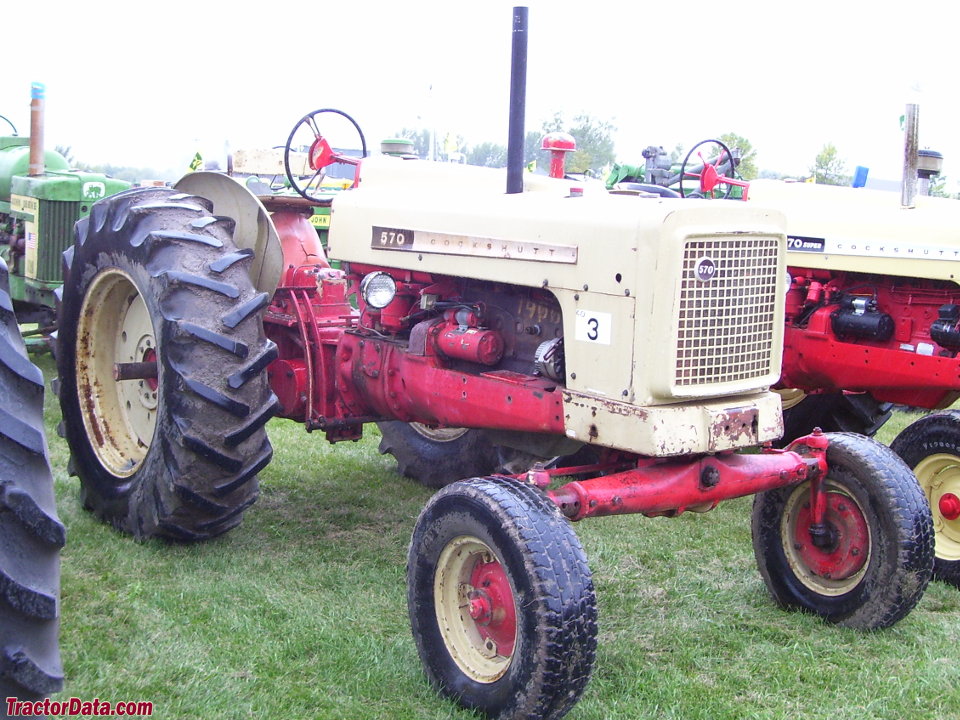

Cockshutt 570

Name: Cockshutt 570
Brand: Cockshutt

Cockshutt 570 — 500 Series · 52 hp. Reference specifications; pending source verification.

The Cockshutt 570 is a tractor with a rated output of 52 hp, classifying it as a compact model in its class. It was manufactured from 1958 to 1960. Equipped with a 6-cylinder diesel liquid-cooled engine, power is transmitted through a two-wheel drive system and a 6-speed gearbox. The tractor has a listed weight of 3175 kg, with a capacity for handling areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

52 hp

Max power

39.0 kW

Weight

3175 kg

Catalogue coverage

Variants represented

Richest spec table

66 rows

Recorded power

52 hp

Recorded weight

3175 kg

Transmissions

6-speed unsynchronized gear

Production years

1958-1960

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCockshuttReference

Built in Brantford, Ontario, CanadaReference

Original price was $5,500 in 1960Reference

Two-wheel driveReference

Steeringpower assistReference

Mechanical disc brakesReference

Open operator station.Reference

Engine

Hercules 4.9L 6-cyl dieselReference

Hercules 4.9L 6-cyl gasolineReference

Fuel tank113.6 LReference

Plows5Reference

Drawbar (tested)39.0 kWReference

Belt (tested)45.4 kWReference

Hercules DD298Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement4.9 LReference

Bore/Stroke95 x 114 mmReference

Air cleaneroil bathReference

Compression17.8:1Reference

Rated RPM1650Reference

Starter volts12Reference

Hercules GO298Reference

gasolineReference

Belt power (max)45.4 kWReference

Max power39.0 kWReference

Transmission

6-speed unsynchronized gearReference

Typeunsynchronized gearReference

Gears6 forward and 2 reverseReference

Clutchdry discReference

PTO & Hydraulics

Rear PTOindependentReference

Rear PTO Type540Reference

Dimensions

Tricycle Wheelbase230 cmReference

Row-crop Wheelbase230 cmReference

Standard Wheelbase222 cmReference

Weight3175 kgReference

Front tire7.50x16Reference

Rear tire13.6/12x38Reference

Ag front7.50x16Reference

Ag front6.00x16Reference

Ag rear13.6/12x38Reference

Ag rear15.5x38Reference

Ag rear13x38Reference

Ag rear14x34Reference

Ag rear15x34Reference

Ag rear18x26Reference

Tricycle Length360 cmReference

Row-crop Length373 cmReference

Standard Length350 cmReference

Height (hood)177 cmReference

Operating weight3175 kgReference

Ballasted weight5241 kgReference

Row-crop Front tread135 to 144 cmReference

Standard Front tread135 to 144 cmReference

Row-crop Rear tread147 to 223 cmReference

570 Serial Numbers

1958DM1001Reference

1959DN5001Reference

1960DO7001Reference

FAQ: How to read a serial number table.Reference

Test results

Diesel 6-speed 2WDNovember 12 - 27, 1958Link: Nebraska Tractor Test 683 fileReference

Belt fuel use (max)15.1 l/hourReference

Drawbar performanceReference

Gear 4 used for power test.Reference

Max pull4110 kgReference

Gear 1 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
