Tractor · 1942Unverified

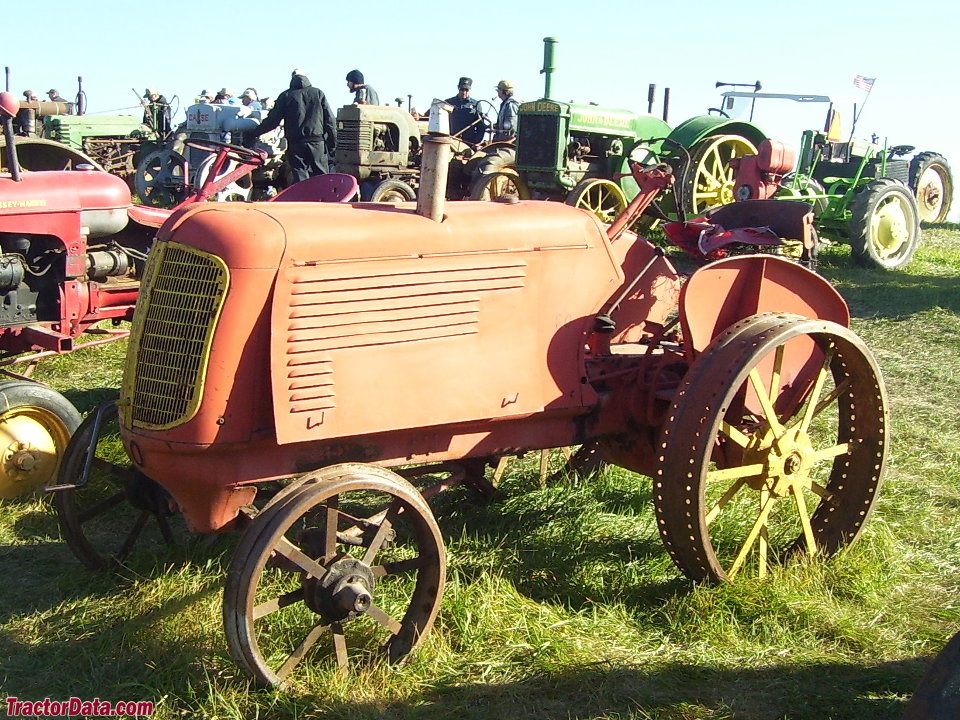

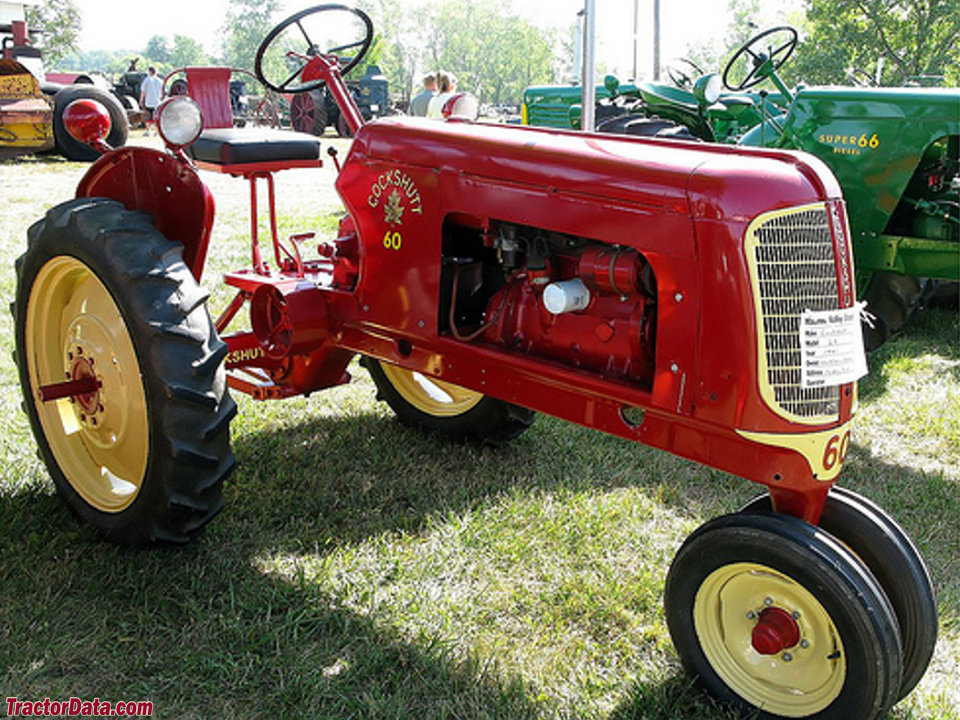

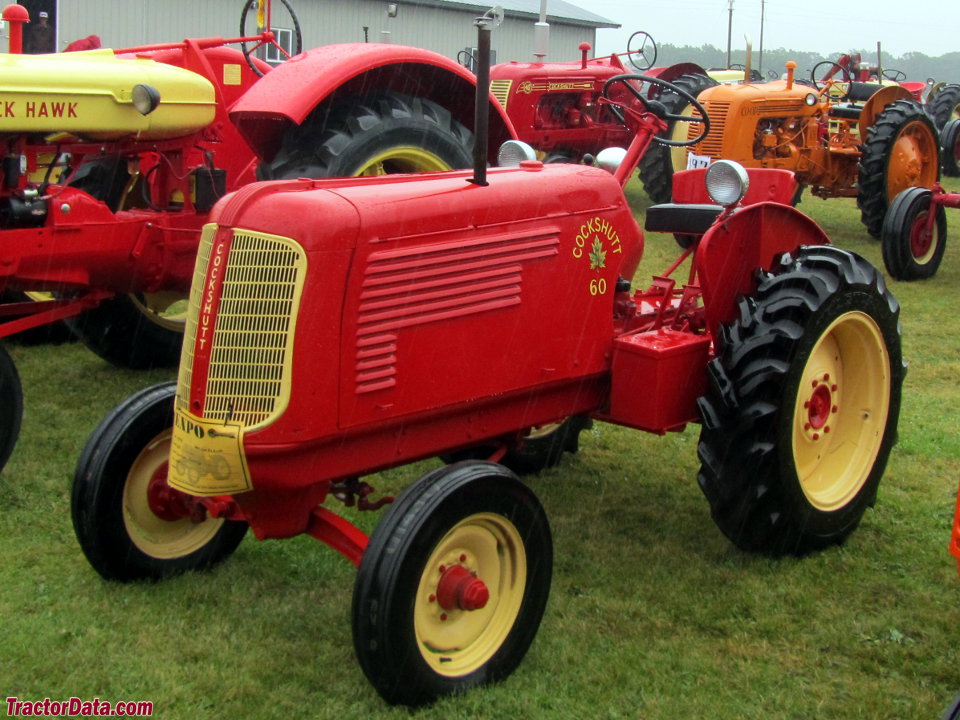

Cockshutt 60

Name: Cockshutt 60
Brand: Cockshutt

Cockshutt 60 — Row-Crop tractor · 18 hp. Reference specifications; pending source verification.

The Cockshutt 60 is a compact tractor, rated at 18 hp. Manufactured from 1942 to 1948, it features a 4-cylinder petrol liquid-cooled engine, which powers a 4-speed gearbox with two-wheel drive. The listed weight of the Cockshutt 60 is 1134 kg. It is designed for use on jobs covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Weight

1134 kg

Catalogue coverage

Variants represented

Richest spec table

32 rows

Recorded power

18 hp

Recorded weight

1134 kg

Transmissions

4-speed unsynchronized gear

Production years

1942-1948

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCockshuttReference

ManufacturerOliverReference

Row-Crop tractorReference

Built in Charles City, Iowa, USAReference

The Cockshutt model 60 is the same as the Oliver 60.Reference

Two-wheel driveReference

Manual steeringReference

Differential contracting band brakesReference

Open operator station.Reference

Variants

60similar Oliver modelReference

Engine

Oliver 2.0L 4-cyl gasolineReference

OliverReference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement2.0 LReference

Bore/Stroke84 x 89 mmReference

Air cleaneroil bathReference

Rated RPM1500Reference

Transmission

4-speed unsynchronized gearReference

Typeunsynchronized gearReference

Gears4 forward and 1 reverseReference

PTO & Hydraulics

PTO (claimed)13.4 kWReference

Dimensions

Weight1134 kgReference

Front tire5.00-15Reference

Rear tire9-32Reference

Ag front5.00-15Reference

Ag rear9-32Reference

Operating weight1134 kgReference

Ballasted weight1814 kgReference

Capacities

Diameter25 cmReference

Width15 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
