Tractor · 1918Unverified

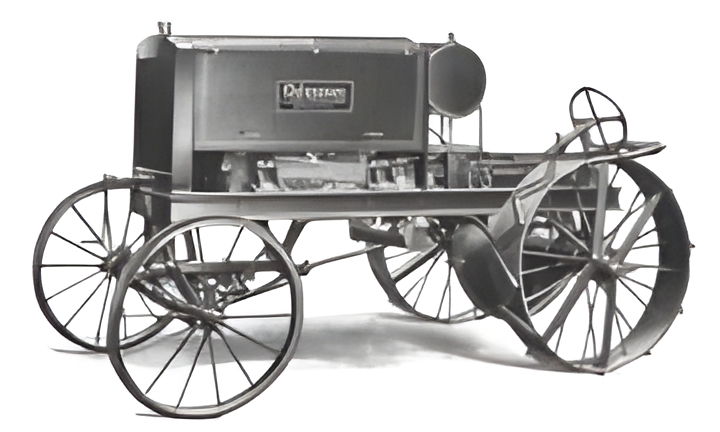

Coleman 16-30

Name: Coleman 16-30
Brand: Coleman

Coleman 16-30 — Standard-tread tractor · 16 hp. Reference specifications; pending source verification.

The Coleman 16-30 is a compact tractor with a rated output of 16 hp. It was first produced in 1918 with a 4-cylinder liquid-cooled engine, which drives through two-wheel drive via a 1-speed gearbox. The listed weight of the Coleman 16-30 is 2086 kg, suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

16 hp

Weight

2086 kg

Catalogue coverage

Variants represented

Richest spec table

38 rows

Recorded power

16 hp

Recorded weight

2086 kg

Transmissions

1-speed gear

Production years

1918-1918

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerColemanReference

Standard-tread tractorReference

Built in Kansas City, Missouri, USAReference

Original price was $1,350 in 1918Reference

Two-wheel driveReference

Final drivesworm gearReference

Manual steeringReference

Open operator station.Reference

Engine

Climax 8.2L 4-cyl keroseneReference

Fuel tank60.6 LReference

Aux. fuel7.6 LReference

Drawbar (claimed)11.9 kWReference

Belt (claimed)22.4 kWReference

Plows3 (14-inch)Reference

Climax KReference

keroseneReference

4-cylinderReference

liquid-cooledReference

Displacement8.2 LReference

Bore/Stroke127 x 165 mmReference

Fuel systemStromberg carburetorReference

Rated RPM800Reference

Coolant capacity53.0 LReference

Transmission

1-speed gearReference

TypegearReference

Gears1 forward and reverseReference

Dimensions

Weight2086 kgReference

Front tire34x4Reference

Rear tire44x10Reference

Ag front34x4 (steel)Reference

Ag rear44x10 (steel)Reference

Length269 cmReference

Width167 cmReference

Height167 cmReference

16-30 Serial Numbers

Location:Serial number on the top of the right fender.Reference

Capacities

Diameter30 cmReference

Width17 cmReference

Speed640.08 meters/minReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
