Tractor · 1949Unverified

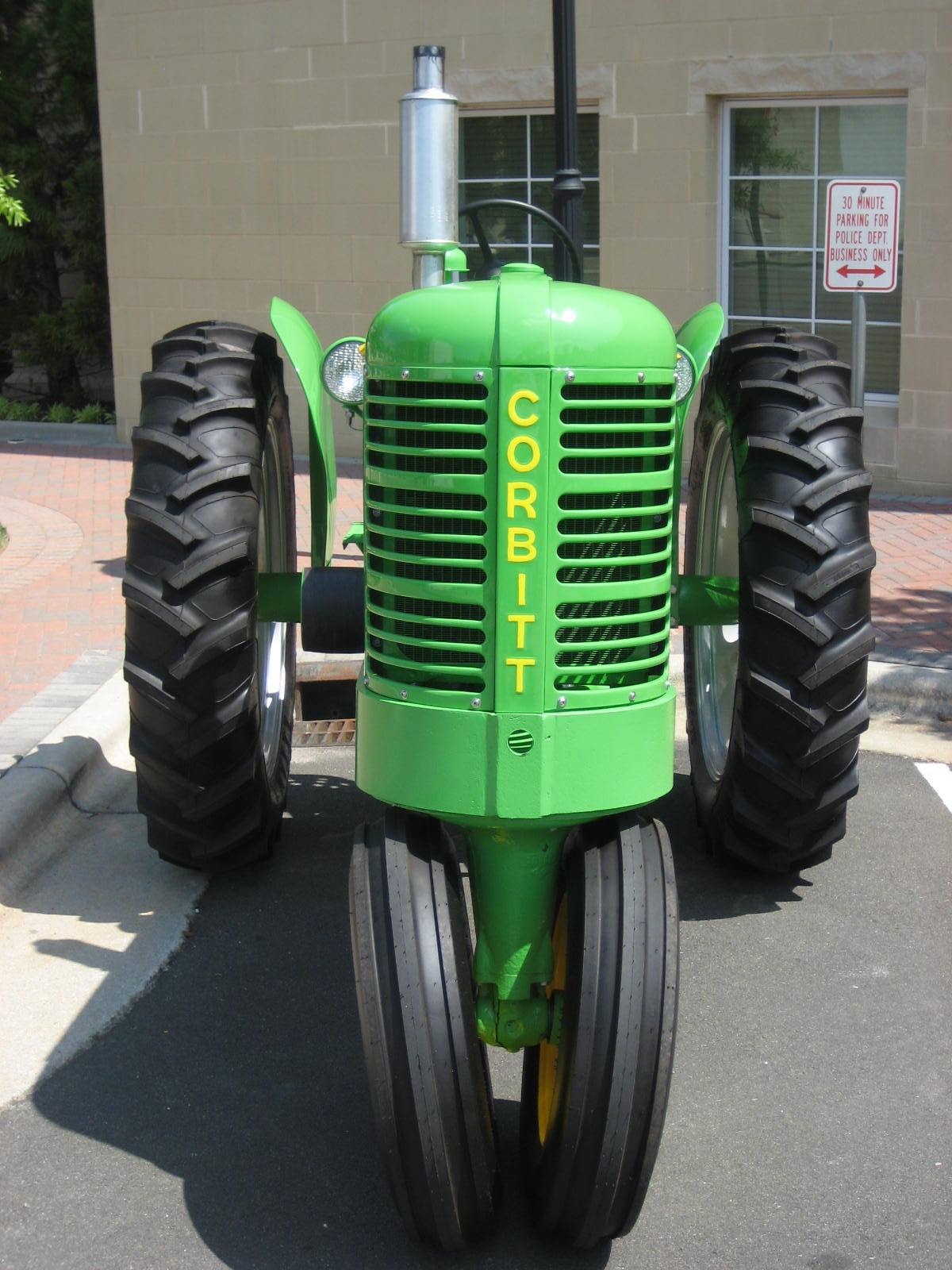

Corbitt D-50
Corbitt D-50. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
1617 kg
Hover a source tag to verify
Overview
ManufacturerCorbittReference
Built in Henderson, North Carolina, USAReference
Two-wheel driveReference
Differential mechanical drum brakesReference
Open operator stationReference
Variants
G-50gasoline engineReference
K-50kerosene engineReference
D-50diesel engineReference
Engine
Hercules 2.7L 4-cyl dieselReference
Plows2 (14-inch)Reference
Hercules DIX4DReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke92 x 102 mmReference
Rated RPM1500Reference
Starter volts6Reference
Transmission
4-speed unsynchronizedReference
TypeunsynchronizedReference
Gears4 forward and 1 reverseReference
Dimensions
Wheelbase218 cmReference
Weight1617 kgReference
Front tire5.5x16Reference
Rear tire10x38Reference
Ag front5.5x16Reference
Ag rear10x38Reference
Length325 cmReference
Height176 cmReference
Operating weight1617 kgReference
Ballasted weight2585 kgReference
Rear tread142 to 213 cmReference
Capacities
Diameter20 cmReference
Width16 cmReference
RPM1210Reference
Speed762.00 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
