Tractor · 1949Unverified

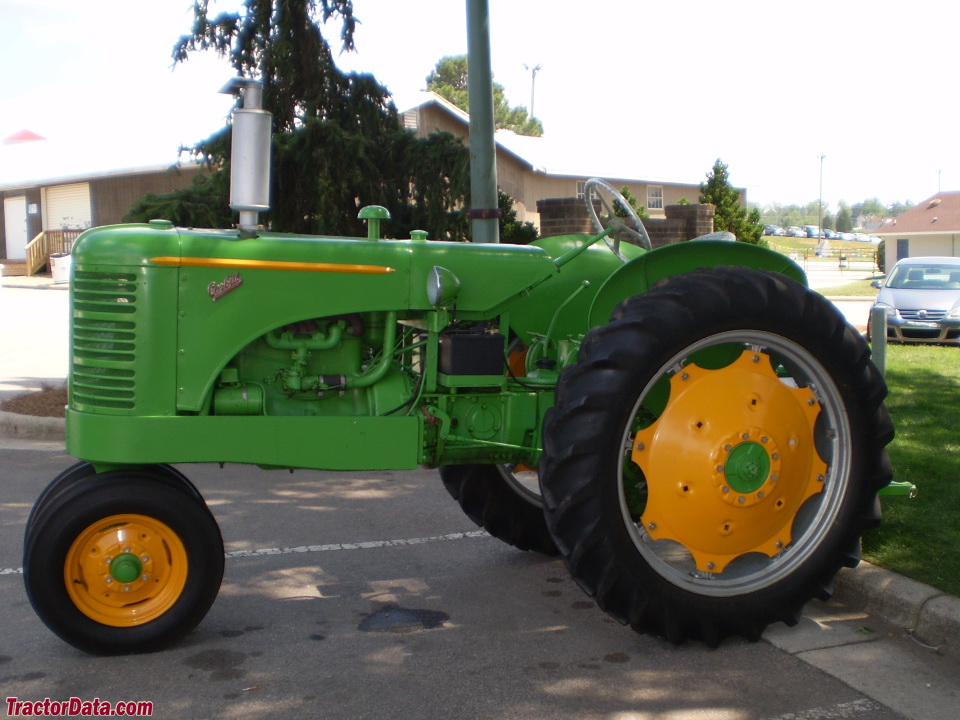

Corbitt G-50

Name: Corbitt G-50
Brand: Corbitt

Corbitt G-50 — Row-Crop tractor · 31 hp. Reference specifications; pending source verification.

The Corbitt G-50 is a tractor with a rated power output of 31 hp, positioning it at the lighter end of its class. It was manufactured between 1949 and 1952. The G-50 is equipped with a 4-cylinder diesel liquid-cooled engine, paired with two-wheel drive and a 4-speed gearbox. Its listed operating weight is 1617 kg, making it suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

31 hp

Max power

22.9 kW

Weight

1617 kg

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

31 hp

Recorded weight

1617 kg

Transmissions

4-speed unsynchronized gear

Production years

1949-1952

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCorbittReference

Row-Crop tractorReference

Built in Henderson, North Carolina, USAReference

Two-wheel driveReference

Differential mechanical drum brakesReference

Open operator stationReference

Variants

G-50gasoline engineReference

K-50kerosene engineReference

D-50diesel engineReference

Engine

LeRoi 2.9L 4-cyl gasolineReference

Plows2 (14-inch)Reference

Drawbar (tested)22.9 kWReference

Belt (tested)25.8 kWReference

LeRoi D176Reference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke95 x 102 mmReference

Air cleaneroil bathReference

Compression5.44:1Reference

Rated RPM1800Reference

Starter volts6Reference

Belt power (max)25.8 kWReference

Max power22.9 kWReference

Transmission

4-speed unsynchronized gearReference

Typeunsynchronized gearReference

Gears4 forward and 1 reverseReference

Dimensions

Wheelbase218 cmReference

Weight1617 kgReference

Front tire5.5x16Reference

Rear tire10x38Reference

Ag front5.5x16Reference

Ag rear10x38Reference

Length325 cmReference

Height176 cmReference

Operating weight1617 kgReference

Ballasted weight2585 kgReference

Rear tread142 to 213 cmReference

Capacities

Diameter20 cmReference

Width16 cmReference

RPM1210Reference

Speed762.00 meters/minReference

Test results

Gasoline 4-speed 2WDAugust 29 - September 3, 1949Link: Nebraska Tractor Test 422 fileReference

Belt fuel use (max)14.0 l/hourReference

Drawbar performanceReference

Gear 2 used for power test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
