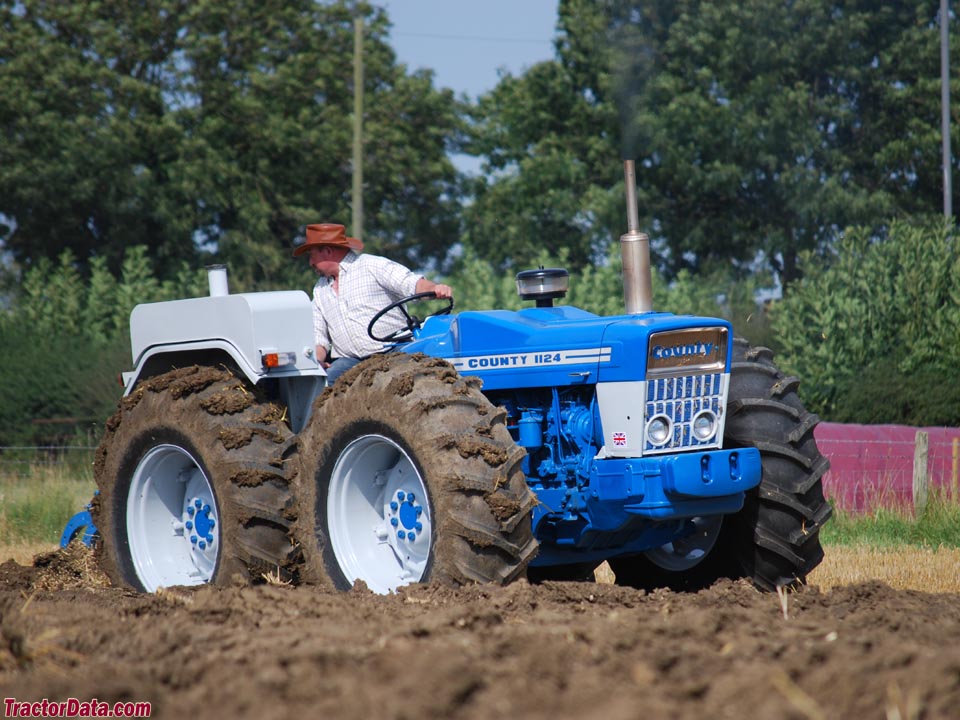

The County 1124 7F tractor has a rating of 102 hp, positioning it within the middle of its class in terms of power output. Manufactured between 1967 and 1971, this model is equipped with a 6-cylinder diesel liquid-cooled engine, which drives through a four-wheel drive system with a hydrostatic transmission. The listed weight of the County 1124 7F is 4570 kg, and it is designed for use in areas of approximately 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
102 hp
Weight
4570 kg
Catalogue coverage
Variants represented
2
Richest spec table
33 rows
Recorded power
102 hp
Recorded weight
4570 kg
Transmissions
8-speed
Production years
1967-1971
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerCountyReference
Built in Fleet, EnglandReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Open operator station.Reference
Engine
Ford 5.9L 6-cyl dieselReference
Ford 6.2L 6-cyl dieselReference
Engine76.1 kWReference
Ford 2704EReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke105 x 115 mmReference
Power74.6 kWReference
Rated RPM2250Reference
Torque375.1 NmReference
Torque RPM1500Reference
Ford 2704CReference
Displacement6.2 LReference
Bore/Stroke107 x 115 mmReference
Power76.1 kWReference
Torque382.0 NmReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Rear lift1750 kgReference
Rear PTO Type540Reference
Dimensions
Weight4570 kgReference
Front tire16.9-30Reference
Rear tire16.9-30Reference
Ag front16.9-30Reference
Ag rear16.9-30Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
