Tractor · 1979Unverified

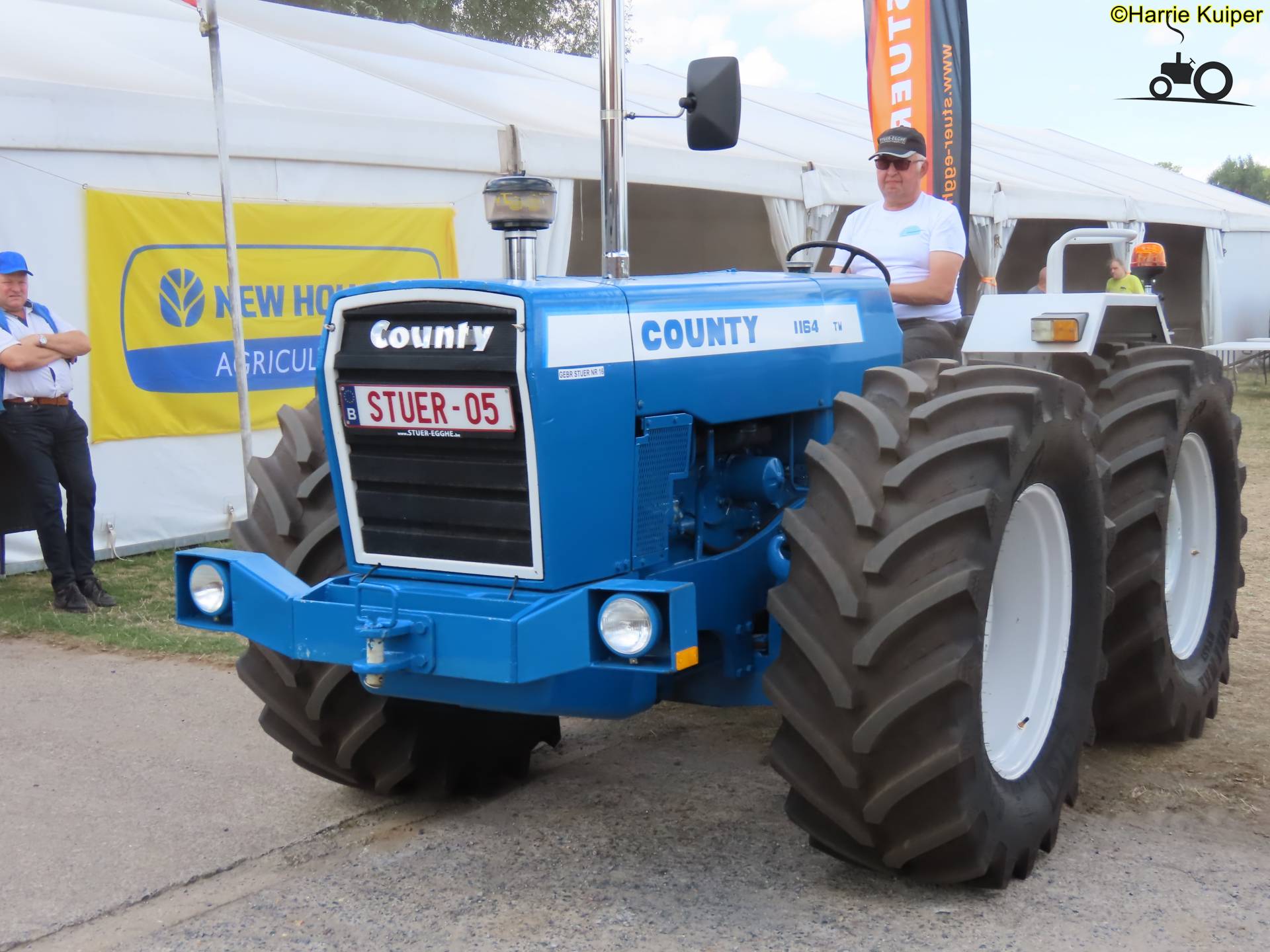

County 1164 TW
County 1164 TW · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
4218 kg
Hover a source tag to verify
Overview
ManufacturerCountyReference
Built in Fleet, EnglandReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station. Cab available.Reference
Engine
Ford 6.6L 6-cyl dieselReference
Fuel tank153.7 LReference
Engine82.8 kWReference
Ford 401DFReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke112 x 112 mmReference
Power82.8 kWReference
Compression16.5:1Reference
Rated RPM2300Reference
Torque390.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity17.0 LReference
Coolant capacity19.3 LReference
Transmission
8-speedReference
16-speed two-speed power shiftReference
Gears8 forward and 2 reverseReference
TransmissionDual PowerReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
Pump flow35.0 lpmReference
Rear TypeIIReference
Rear lift4218 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Weight4218 kgReference
Front tire18.4/15-30Reference
Rear tire18.4/15-30Reference
Standard tires (ag)Front: 18.4/15-30. Rear: 18.4/15-30Reference
Optional tires (ag)Front: 16.9/14-34. Rear: 16.9/14-34Reference
Optional tires (ag)Front: 16.9/14-30. Rear: 16.9/14-30Reference
Optional tires (ag)Front: 23.1/18-26. Rear: 23.1/18-26Reference
Optional tires (ag)Front: 13.6/12-38. Rear: 13.6/12-38Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 16.9/14-34 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
