Tractor · 1979Unverified

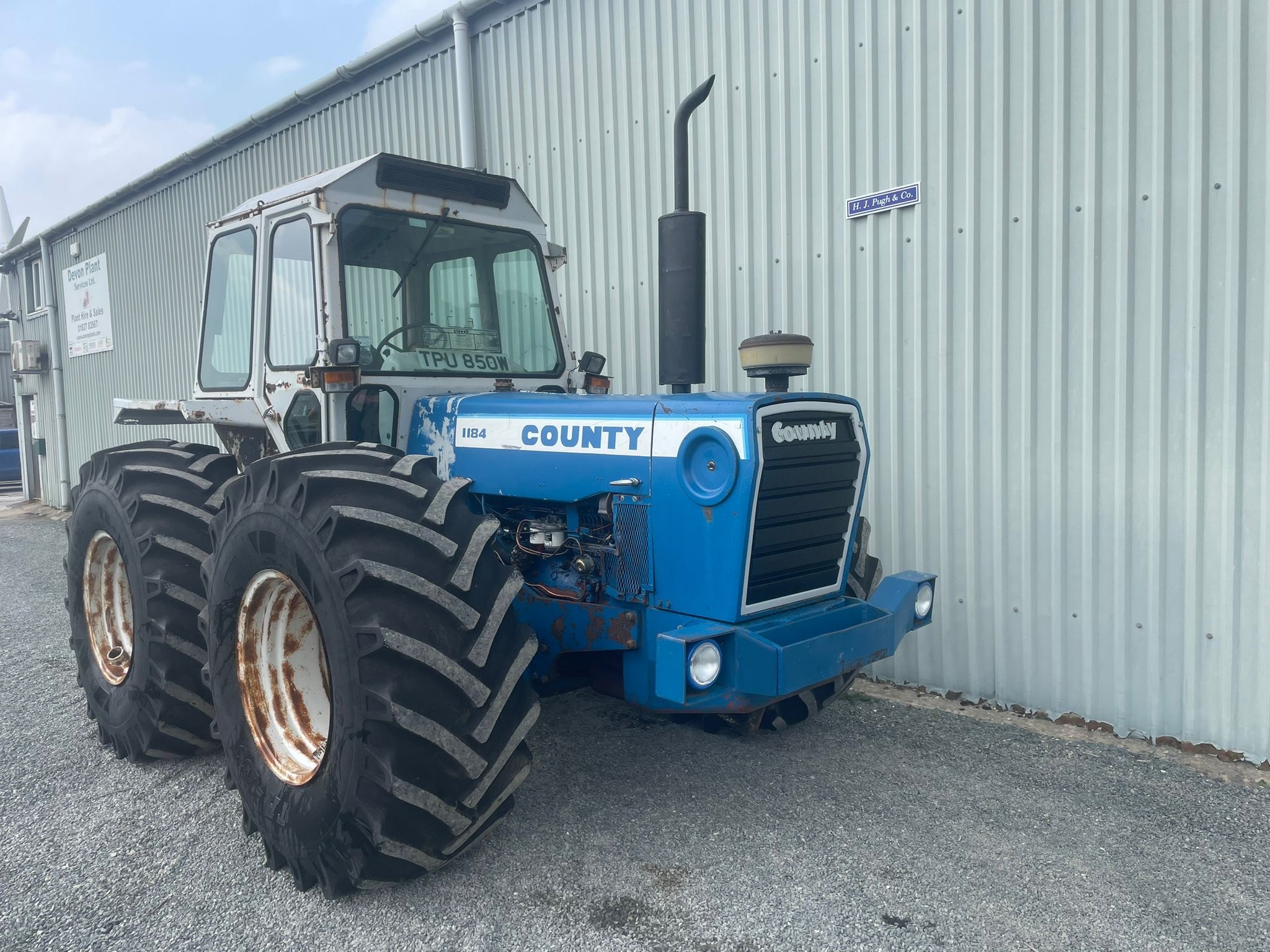

County 1184
County 1184 — Four-wheel Drive (4WD) tractor · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Hover a source tag to verify
Overview
ManufacturerCountyReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Differential lockmechanical front and rearReference
Power steeringReference
Wet disc brakesReference
Cab standard with heat.Reference
Variants
FC 1184forward-controlReference
Engine
Ford 6.6L 6-cyl dieselReference
Fuel tank139.7 LReference
Engine89.5 kWReference
FordReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke112 x 112 mmReference
Power89.5 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression16.5:1Reference
Rated RPM2300Reference
Torque406.8 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Pressure172.4 barReference
Pump flow35.0 lpmReference
Steering flow16.3 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)4218 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Engine RPM1000@2060Reference
Dimensions
Front tire16.9/14-34Reference
Rear tire16.9/14-34Reference
Ag front16.9/14-34Reference
Ag rear16.9/14-34Reference
Front tread162 to 213 cmReference
Rear tread162 to 213 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps72Reference
Battery AH128Reference
Speeds
With 16.9-34 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
