Tractor · 1972Unverified

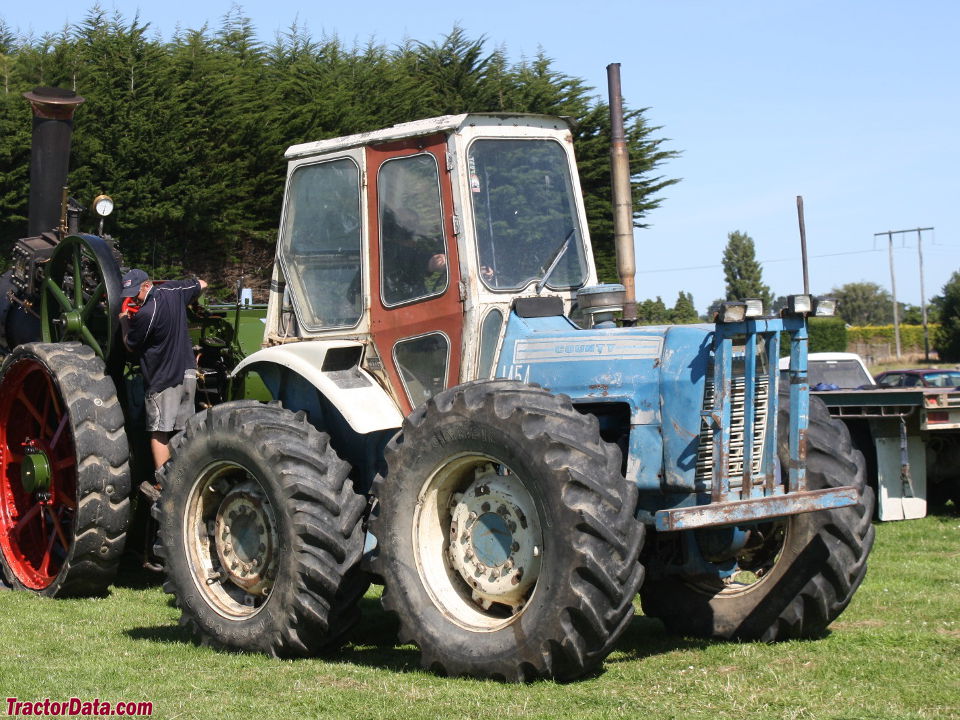

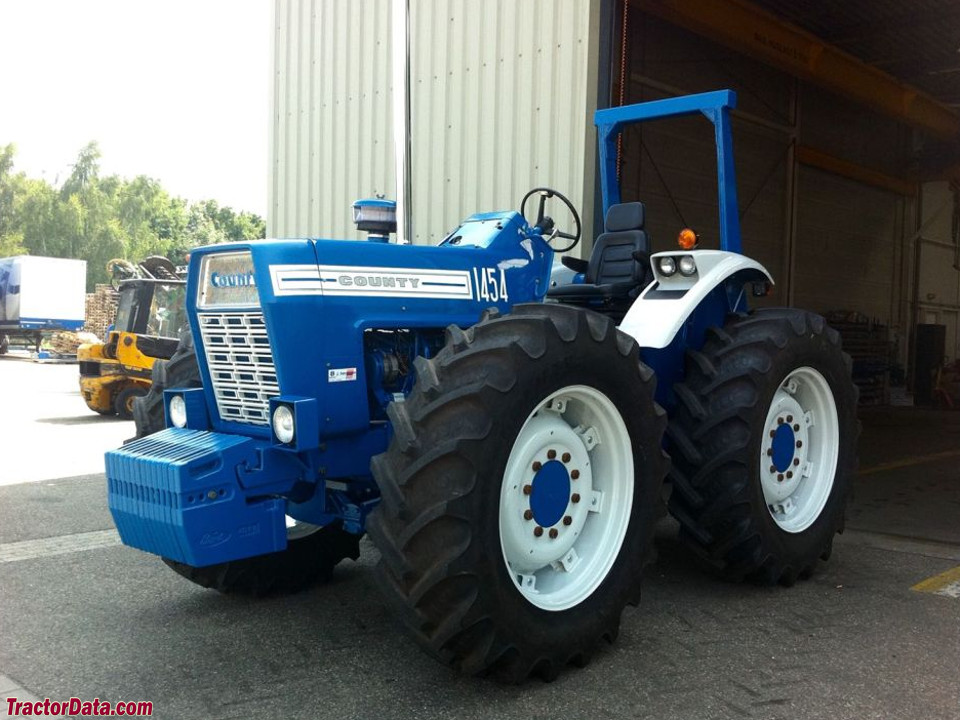

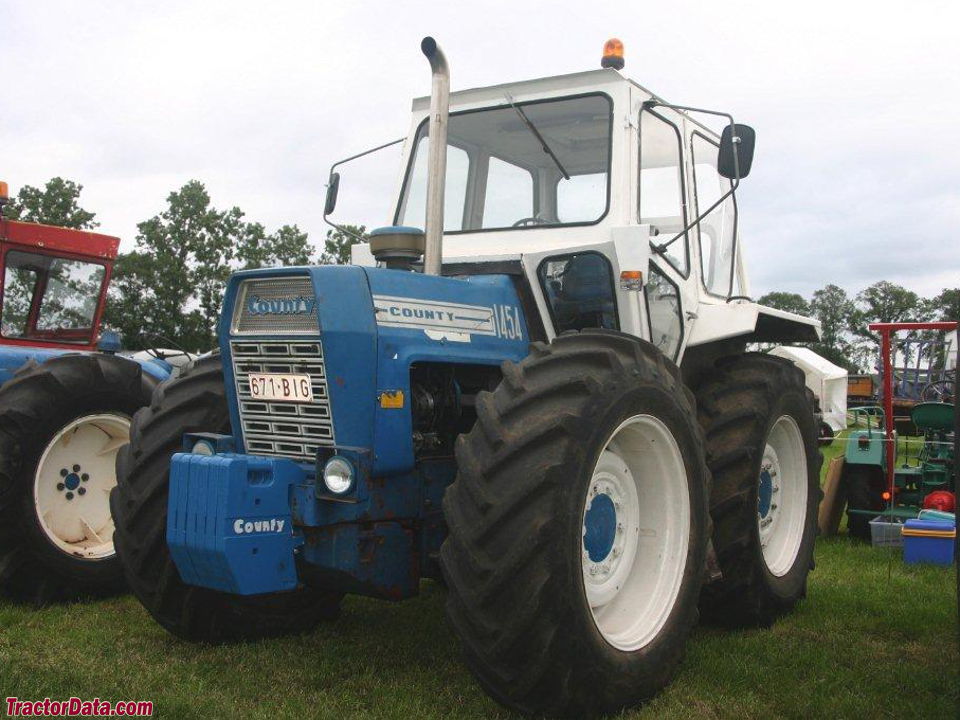

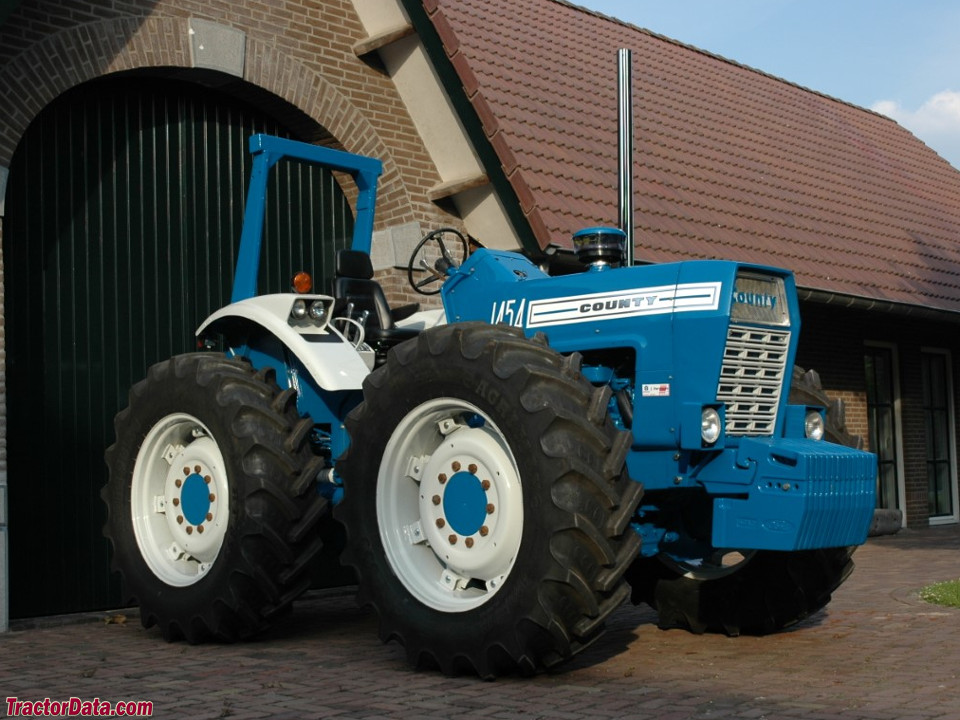

County 1454

Name: County 1454
Brand: County

County 1454 — Four-wheel Drive (4WD) tractor · 145 hp. Reference specifications; pending source verification.

The County 1454 is a tractor with a rated output of 145 hp, ranking it among the higher-powered machines in its class. It was manufactured between 1972 and 1978. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, driving a four-wheel drive system with a powershift transmission. Its listed weight is 5842 kg, suitable for tasks involving approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

145 hp

Weight

5842 kg

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

145 hp

Recorded weight

5842 kg

Transmissions

16-speed two-speed power shift

Production years

1972-1978

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCountyReference

Four-wheel Drive (4WD) tractorReference

Built in Fleet, EnglandReference

Drive4x4 4WDReference

Differential lockmechanical four-wheelReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with available air-conditioning.Reference

Engine

Ford 6.6L 6-cyl dieselReference

Fuel tank163.9 LReference

Engine (gross)108.1 kWReference

Ford 401DFTReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke112 x 112 mmReference

Power (gross)108.1 kWReference

Rated RPM2200Reference

Torque518.1 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed two-speed power shiftReference

TransmissionDual PowerReference

Typetwo-speed power shiftReference

Gears16 forward and 4 reverseReference

PTO & Hydraulics

Typeopen centerReference

Pressure172.4 barReference

Total flow50.0 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2700 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.375)Reference

Engine RPM1000@1935Reference

Dimensions

Wheelbase205 cmReference

Weight5842 kgReference

Front tire18.4/15-34Reference

Rear tire18.4/15-34Reference

Ag front18.4/15-34Reference

Ag rear18.4/15-34Reference

Ag front16.9/14-34Reference

Ag front23.1/18-30Reference

Ag front23.1/18-34Reference

Ag rear16.9/14-34Reference

Ag rear23.1/18-30Reference

Ag rear23.1/18-34Reference

Length403 cmReference

Width237 cmReference

Height (cab)295 cmReference

Ground clearance38 cmReference

Front tread172 to 223 cmReference

Rear tread172 to 223 cmReference

Electrical

Charging systemalternatorReference

Battery volts12Reference

Battery AH128Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
