Tractor · 1968Unverified

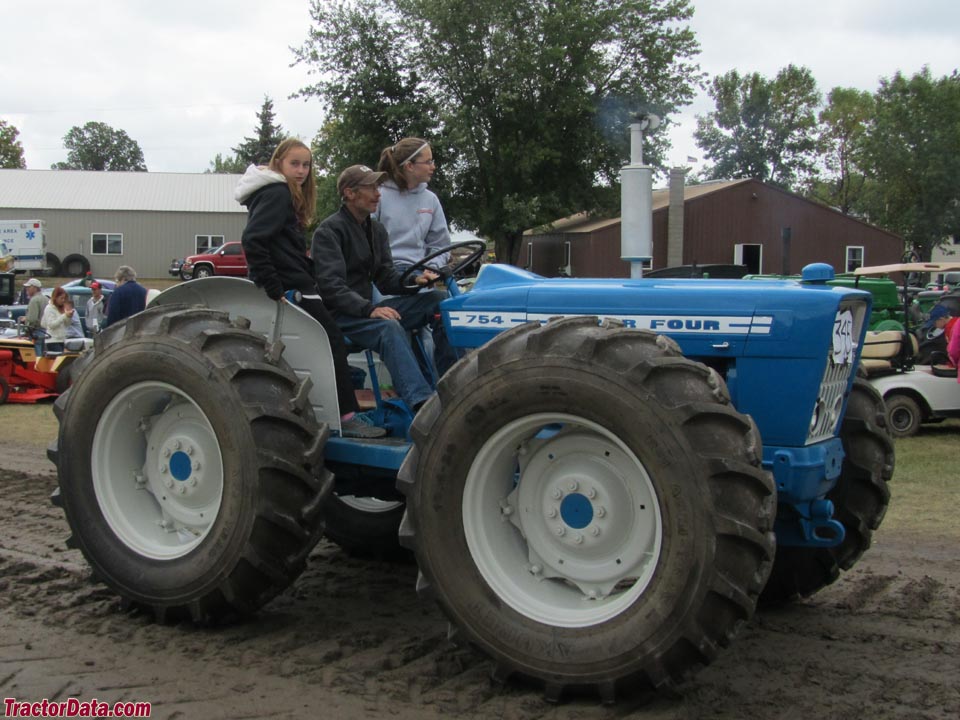

County 754
County 754 · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
8036 to 11800 pounds
Hover a source tag to verify
Overview
ManufacturerCountyReference
Built in Fleet, EnglandReference
The County 754 was based on the Ford 5000.Reference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical front and rearReference
Power steeringReference
Wet disc brakesReference
Open operator station.Reference
Engine
Ford 4.2L 4-cyl dieselReference
Fuel tank75.7 LReference
Engine55.2 kWReference
Ford 256Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke112 x 107 mmReference
Power55.2 kWReference
Compression16.5:1Reference
Rated RPM2100Reference
Torque296.0 NmReference
Torque RPM1300Reference
Starter volts12Reference
Oil capacity9.5 LReference
Coolant capacity14.5 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Oil capacity10.2 LReference
PTO & Hydraulics
PTO (claimed)50.1 kWReference
Typeopen centerReference
Pressure172.4 barReference
Total flow22.7 lpmReference
Rear TypeIIReference
Controltop-link draft sensingReference
Rear lift1750 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Engine RPM1000@2060Reference
Dimensions
Wheelbase182 cmReference
Weight8036 to 11800 poundsReference
Front tire16.9-30Reference
Rear tire16.9-30Reference
Ag front16.9-30Reference
Ag rear16.9-30Reference
Ag front13.6-38Reference
Ag front16.9-34Reference
Ag front18.4-30Reference
Ag front23.1-26Reference
Ag rear13.6-38Reference
Ag rear16.9-34Reference
Ag rear18.4-30Reference
Ag rear23.1-26Reference
Length370 cmReference
Height (steering wheel)172 cmReference
Shipping weight3645 kgReference
Operating weight5352 kgReference
Front tread172 to 213 cmReference
Rear tread172 to 213 cmReference
Electrical
Charging systemgeneratorReference
Charging amps22Reference
Battery volts12Reference
Battery AH128Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
