Tractor · 1975Unverified

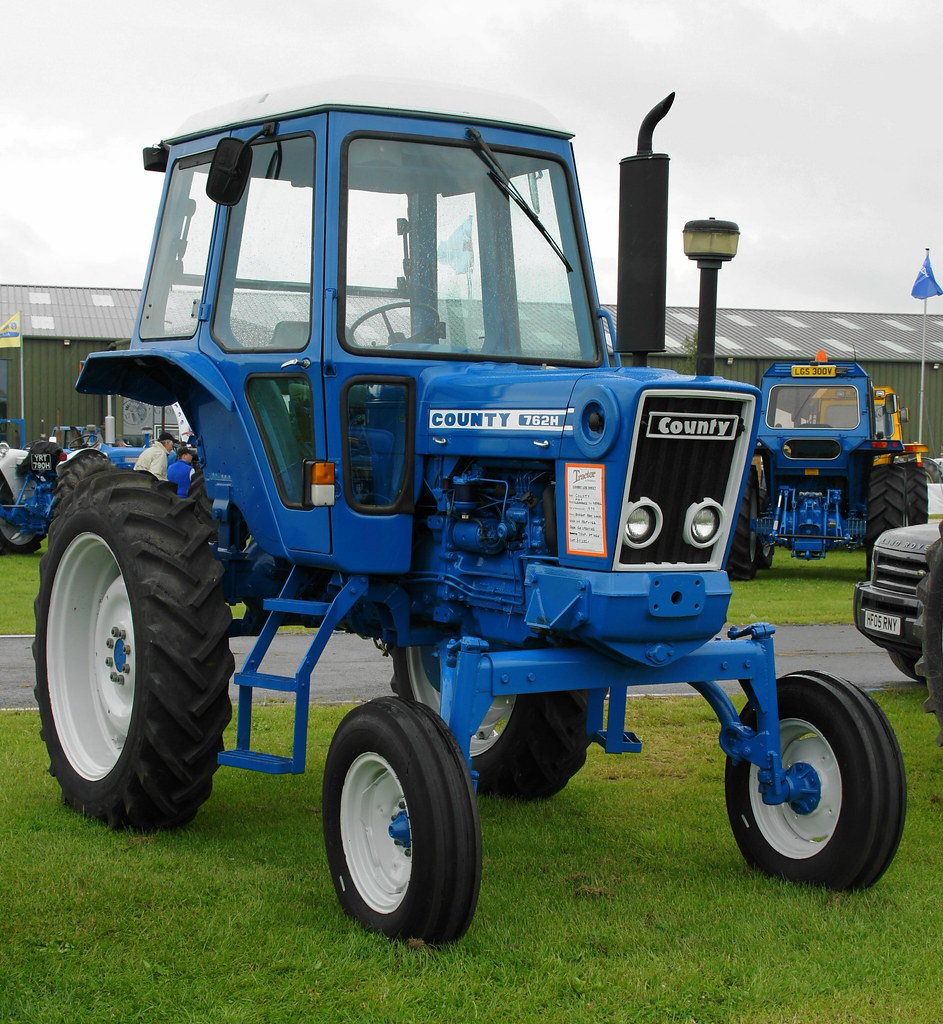

County 762H
County 762H — High-Clearance tractor · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Hover a source tag to verify
Overview
ManufacturerCountyReference
High-Clearance tractorReference
Built in Fleet, EnglandReference
The County 762 High-Drive was based on the Ford 6600.Reference
Two-wheel driveReference
Cab standard. Open station available.Reference
Engine
Ford 4.2L 4-cyl dieselReference
Engine (gross)56.3 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke112 x 107 mmReference
Power (gross)56.3 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Dimensions
Front tire7.50x18Reference
Rear tire13.6/12x38Reference
Standard tires (ag)Front: 7.50x18. Rear: 13.6/12x38Reference
Optional tires (ag)Front: 9.50x24. Rear: 9.5R48Reference
Clearance (front axle)81 cmReference
Clearance (rear axle)81 cmReference
Front tread147 to 198 cmReference
Rear tread147 to 218 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
