Tractor · 1965Unverified

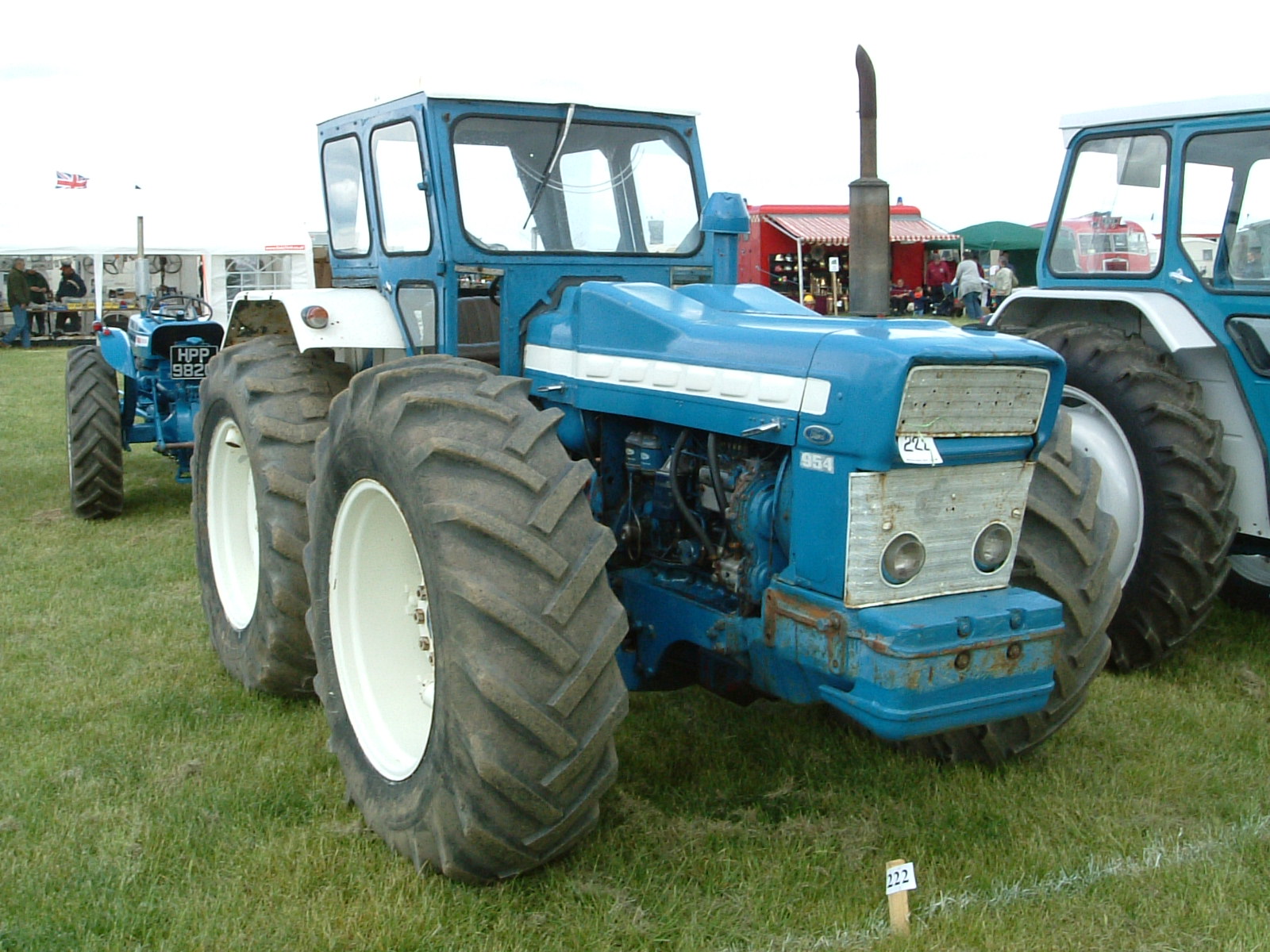

County 954 Super 6
County 954 Super 6 — Four-wheel Drive (4WD) tractor · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Hover a source tag to verify
Overview
ManufacturerCountyReference
Four-wheel Drive (4WD) tractorReference
Built in Fleet, EnglandReference
Four-wheel driveReference
Differential lockmechanical front and rearReference
Wet disc brakesReference
Open operator station.Reference
Engine
Ford 5.4L 6-cyl dieselReference
Engine70.8 kWReference
Ford 2703EReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.4 LReference
Bore/Stroke100 x 115 mmReference
Power70.8 kWReference
Fuel systemdirect injectionReference
Rated RPM2100Reference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
PTO (claimed)41.8 kWReference
Typeopen centerReference
Pressure172.4 barReference
Rear TypeIIReference
Rear lift2721 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1902Reference
Dimensions
Front tire14-30Reference
Rear tire14-30Reference
Ag front14-30Reference
Ag rear14-30Reference
Length403 cmReference
Width219 cmReference
Height (exhaust)223 cmReference
Clearance (drawbar)25 cmReference
Front tread172 cmReference
Rear tread172 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH128Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
