Tractor · 1966Unverified

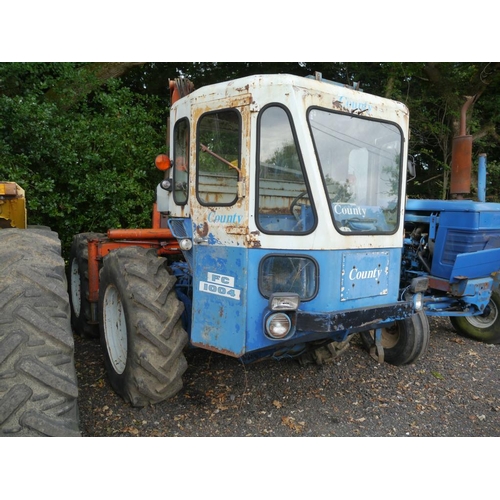

County FC 1004
County FC 1004 · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
4261 kg
Hover a source tag to verify
Overview
ManufacturerCountyReference
Built in Fleet, EnglandReference
Drive4x4 4WDReference
Final drivesoutboard planetaryReference
Differential lockmechanical front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
Ford 5.9L 6-cyl dieselReference
Engine76.1 kWReference
Ford 2173EReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke105 x 115 mmReference
Power76.1 kWReference
Fuel systemdirect injectionReference
Compression16.5:1Reference
Rated RPM2200Reference
Torque339.0 NmReference
Torque RPM1700Reference
Starter typeelectricReference
Oil capacity12.5 LReference
Coolant capacity21.6 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch355.6mm dry discReference
PTO & Hydraulics
PTO (claimed)50.0 kWReference
Typeopen centerReference
Pressure172.4 barReference
Pump flow23.8 lpmReference
Steering flow16.3 lpmReference
Steering cap.0.6 LReference
Steering press.44.8 barReference
Rear TypeIIReference
Rear lift1723 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1900Reference
Capacities
Fuel118.1 LReference
Steering0.6 LReference
Dimensions
Wheelbase181 cmReference
Weight4261 kgReference
Front tire13.6/12-38Reference
Rear tire13.6/12-38Reference
Ag front13.6/12-38Reference
Ag rear13.6/12-38Reference
Length472 cmReference
Width218 cmReference
Height (cab)251 cmReference
Front tread152 to 213 cmReference
Rear tread152 to 213 cmReference
Speeds
With 13.6/12-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
