Tractor · 1960Unverified

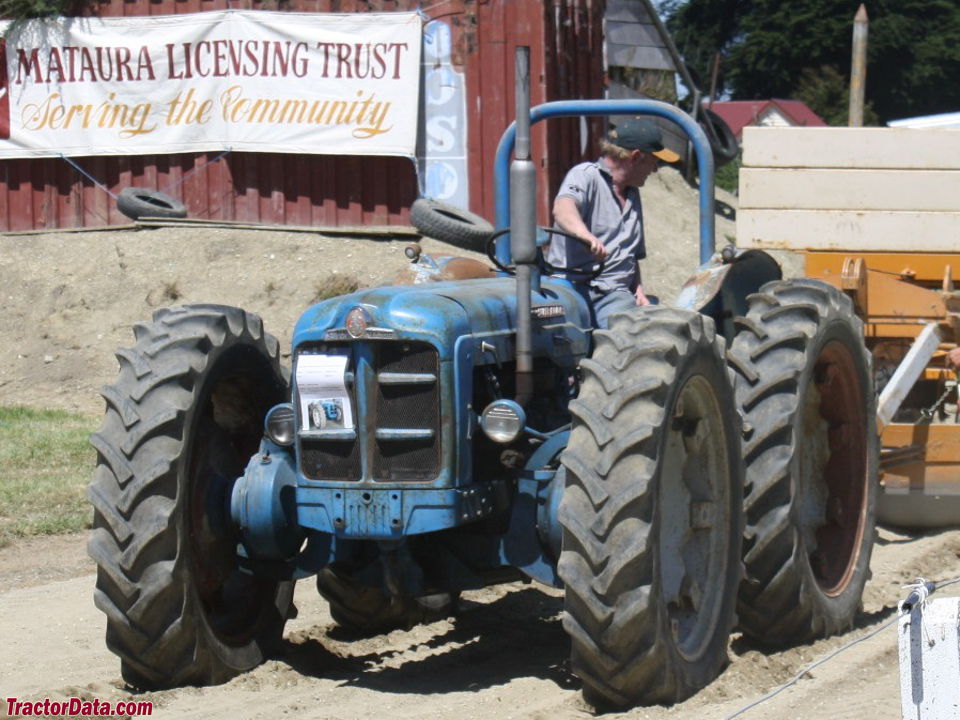

County Super 4
County Super 4 · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
8036 to 11800 pounds
Hover a source tag to verify
Overview
ManufacturerCountyReference
Built in Fleet, EnglandReference
Drive4x4 4WDReference
Final drivesplanetaryReference
Power steeringReference
Open operator station.Reference
Engine
Ford 3.6L 4-cyl dieselReference
Ford 4.2L 4-cyl dieselReference
Fuel tank75.7 LReference
Engine (net)52.2 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Compression16:1Reference
Rated RPM1600Reference
Firing order1-2-4-3Reference
Oil capacity6.8 LReference
Displacement4.2 LReference
Bore/Stroke112 x 107 mmReference
Power (net)52.2 kWReference
Rated RPM2100Reference
Oil capacity9.5 LReference
Coolant capacity14.5 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Oil capacity10.2 LReference
PTO & Hydraulics
Typeopen centerReference
Pressure172.4 barReference
Pump flow22.7 lpmReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1000Reference
Dimensions
Wheelbase181 cmReference
Weight8036 to 11800 poundsReference
Front tire16.9-30Reference
Rear tire16.9-30Reference
Ag front16.9-30Reference
Ag rear16.9-30Reference
Ag front13.6-38Reference
Ag front16.9-34Reference
Ag front18.4-30Reference
Ag front23.1-26Reference
Ag rear13.6-38Reference
Ag rear16.9-34Reference
Ag rear18.4-30Reference
Ag rear23.1-26Reference
Length370 cmReference
Height (steering wheel)172 cmReference
Shipping weight3645 kgReference
Operating weight5352 kgReference
Ground clearance34 cmReference
Front tread152 to 213 cmReference
Rear tread152 to 213 cmReference
County Super 4 attachments
front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
