Tractor · 1962Unverified

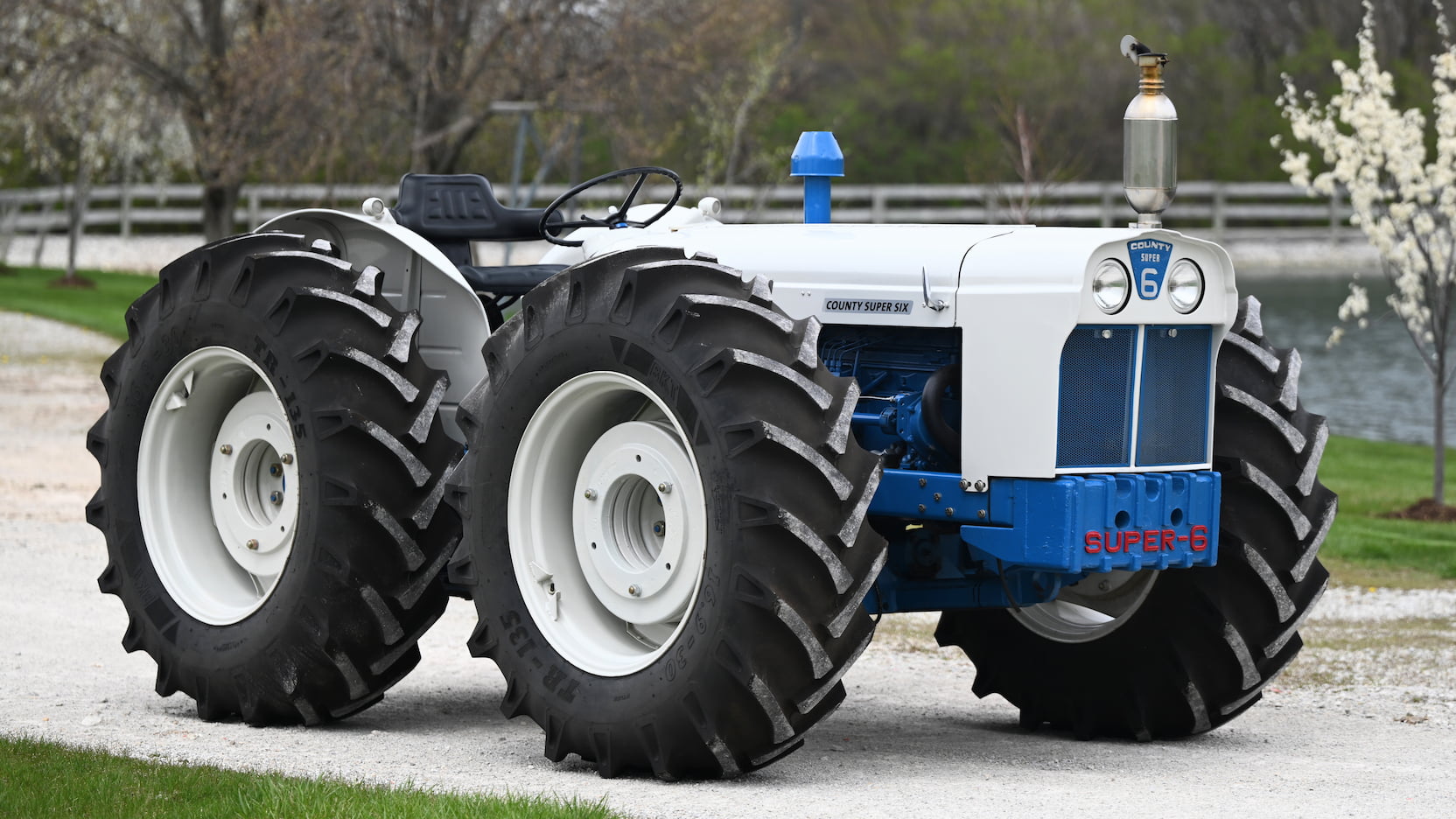

County Super 6
County Super 6 — Four-wheel Drive (4WD) tractor · 95 hp. Reference specifications; pending source verification.
The County Super 6 is a tractor with a power rating of 95 hp, placing it in the middle of its class for power output. Manufactured from 1962 to 1965, this model features a 6-cylinder diesel liquid-cooled engine, which drives through a four-wheel drive system with a 6-speed gearbox. The listed weight of the County Super 6 is 3531 kg, and it is intended for use in areas ranging approximately 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
3531 kg
Catalogue coverage
Variants represented
2
Richest spec table
52 rows
Recorded power
95 hp
Recorded weight
3531 kg
Transmissions
6-speed gear
Production years
1962-1965
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerCountyReference
Four-wheel Drive (4WD) tractorReference
Built in Fleet, EnglandReference
Drive4x4 4WDReference
Differential lockmechanical front and rearReference
Power steeringReference
Mechanical disc brakesReference
Open operator station.Reference
Engine
Ford 5.4L 6-cyl dieselReference
Fuel tank76.5 LReference
Engine (gross)70.8 kWReference
Ford 590EReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.4 LReference
Bore/Stroke100 x 115 mmReference
Power (gross)70.8 kWReference
Compression16:1Reference
Rated RPM2300Reference
Torque343.1 NmReference
Torque RPM1500Reference
Starter typeelectricReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch330mm dry discReference
PTO & Hydraulics
Typeopen centerReference
Pump flow26.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1500Reference
Dimensions
Wheelbase180 cmReference
Weight3531 kgReference
Front tire14-30Reference
Rear tire14-30Reference
Ag front14-30Reference
Ag rear14-30Reference
Ag front11-36Reference
Ag front12-36Reference
Ag front11-38Reference
Ag front12-38Reference
Ag rear11-36Reference
Ag rear12-36Reference
Ag rear11-38Reference
Ag rear12-38Reference
Length365 cmReference
Ground clearance30 cmReference
Front tread162 cmReference
Rear tread152 to 182 cmReference
Electrical
Charging systemgeneratorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
