Lawn Tractor · 2017Unverified

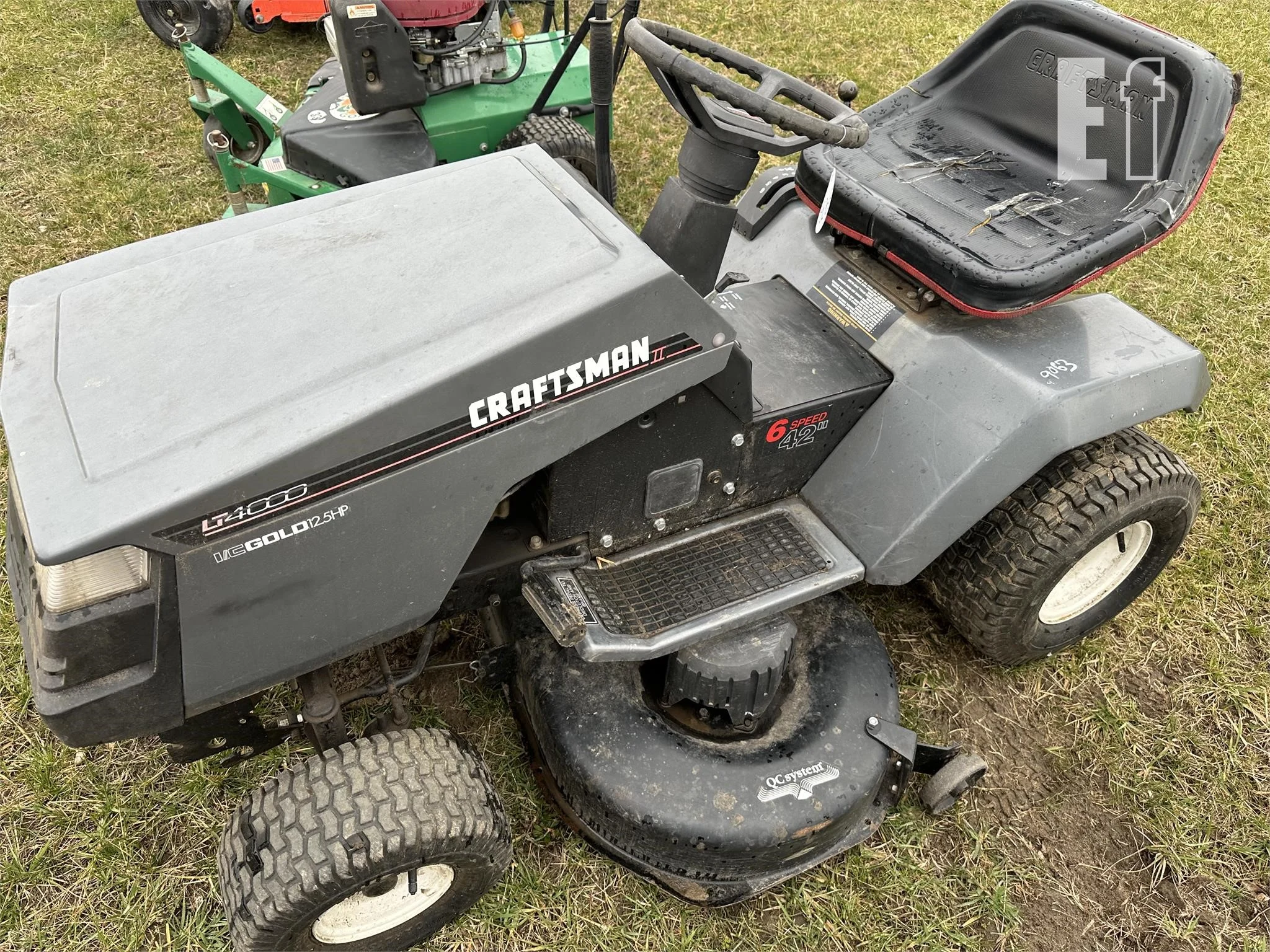

Craftsman 247.27047
Craftsman 247.27047 — Garden tractor · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
340 kg
Hover a source tag to verify
Overview
DistributorCraftsman (a part of Sears)Reference
ManufacturerMTDReference
Garden tractorReference
Original price was $4,000 in 2017Reference
Two-wheel driveReference
Power steeringReference
Open operator station.Reference
Engine
26HP Kohler 747cc 2-cyl gasolineReference
Fuel tank11.4 LReference
KohlerReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement45.6 ciReference
Power (gross)19.4 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionTuff Torq K57Reference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase101 cmReference
Weight340 kgReference
Front tire16x6.5Reference
Rear tire22x9.5Reference
Lawn/turf front16x6.5Reference
Lawn/turf rear22x9.5Reference
Length187 cmReference
Height119 cmReference
Front axleCast-ironReference
Craftsman 247.27047 attachments
54" mid-mount mower deckReference
bladeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
BladeReference
54" Mower deck
Typemid-mount CraftsmanReference
Type3-blade with manual liftReference
Cutting width137 cmReference
Cut height3 to 10 cmReference
Cut positions12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
