Lawn Tractor · 1981Unverified
Craftsman 502.60730
Craftsman 502.60730 — GT 18 Series · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
298 kg
Hover a source tag to verify
Overview
DistributorCraftsman (a part of Sears)Reference
ManufacturerMurrayReference
Garden tractorReference
Original price was CAD3000 in 1981Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
13.4KW Briggs & Stratton 694cc 2-cyl gasolineReference
Briggs & Stratton 420000Reference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft horizontally-opposedReference
Displacement42.38 ciReference
Bore/Stroke87 x 58 mmReference
Power13.4 kWReference
StarterelectricReference
Starter volts12Reference

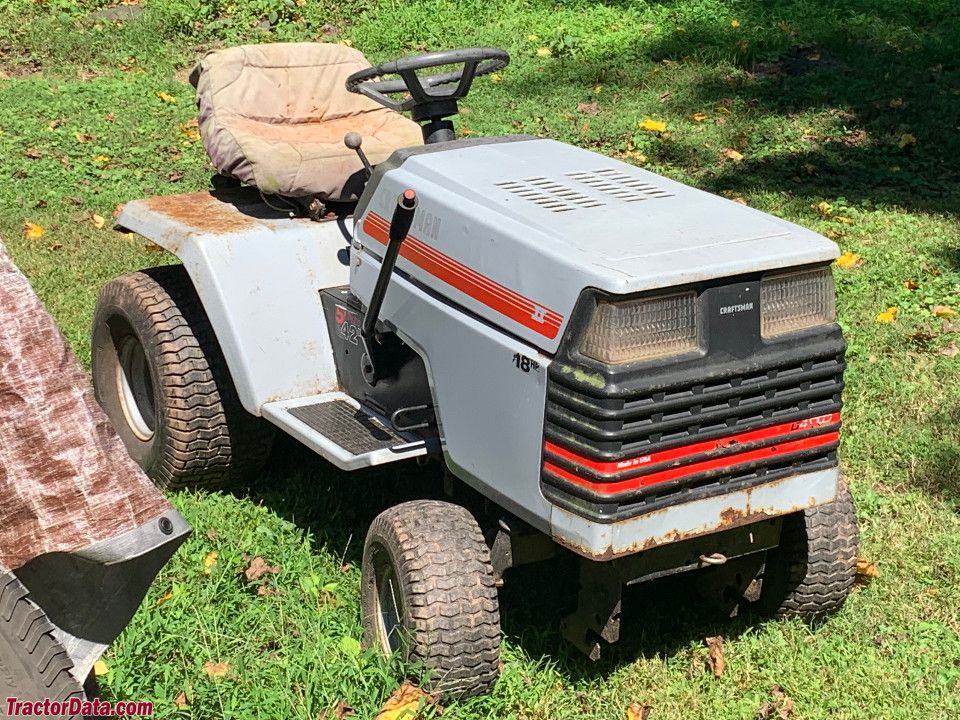

Image courtesy of Stuart KuikenReference
Transmission
4-speed gearReference
Typebelt-driven gearReference
Gears4 forward and 1 reverseReference
Dimensions
Weight298 kgReference
Rear tire23x8.50-12Reference
Lawn/turf rear23x8.50-12Reference
Craftsman 502.60730 attachments
106 cm mid-mount mower deckReference
502.60730 Serial Numbers
Location:Serial number plate below the front edge of the tractor's seat, above the gear shift.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
42" Mower deck
Typemid-mount CraftsmanReference
Type3-blade with manual liftReference
Cutting width106 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
