Lawn Tractor · 2004Unverified

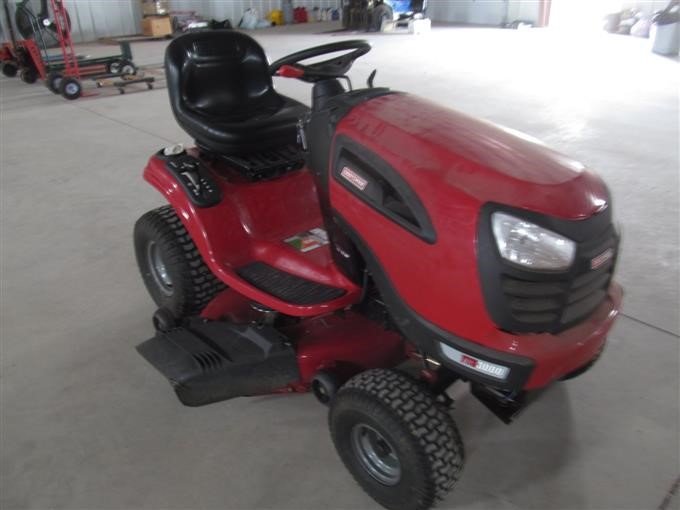

Craftsman 917.27382

Name: Craftsman 917.27382
Brand: Craftsman

Craftsman 917.27382 — DLT 3000 Series · 19 hp. Reference specifications; pending source verification.

The Craftsman 917.27382 lawn tractor has a rated power of 19 hp, a mid-range figure for its class. It was manufactured in 2004. The 917.27382 is equipped with a 1-cylinder petrol air-cooled engine, coupled with two-wheel drive and a hydrostatic transmission. It is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

19 hp

Catalogue coverage

Variants represented

Richest spec table

38 rows

Recorded power

19 hp

Transmissions

hydrostatic

Production years

2004-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCraftsman (a part of Sears)Reference

ManufacturerAYPReference

Lawn tractorReference

Two-wheel driveReference

Manual steeringReference

Open operator stationReference

Engine

18.5HP Briggs & Stratton 501cc 1-cyl gasolineReference

Fuel tank15.1 LReference

Briggs & Stratton 31P777Reference

gasolineReference

1-cylinderReference

air-cooled vertical-shaftReference

Displacement30.6 ciReference

Bore/Stroke90 x 78 mmReference

Power (gross)13.8 kWReference

StarterelectricReference

Starter volts12Reference

SparkplugChampion RC12YCReference

Sparkplug gap0.762 mmReference

Oil capacity1.7 LReference

Transmission

hydrostaticReference

TransmissionPeerless 2000Reference

Typebelt-driven hydrostaticReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Mid PTOindependentReference

ClutchmanualReference

Craftsman 917.27382 attachments

42" mid-mount mower deckReference

Electrical

GroundnegativeReference

Charging amps3 (battery)Reference

Charging amps5 (headlights)Reference

Battery CCA230Reference

Battery volts12Reference

Battery AH28Reference

Battery GroupU1RReference

42" Mower deck

Typemid-mount CraftsmanReference

Type2-blade with manual liftReference

Cutting width106 cmReference

BeltAYP 144959Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
