Lawn Tractor · 2005Unverified

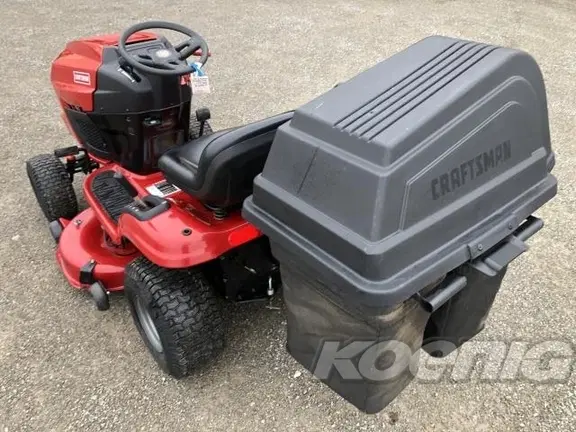

Craftsman 917.27635

Name: Craftsman 917.27635
Brand: Craftsman

Craftsman 917.27635 — GT 5000 Series · 25 hp. Reference specifications; pending source verification.

The Craftsman 917.27635 is a lawn tractor with a rated output of 25 hp, categorising it among the higher-powered machines in its class. This model was manufactured in 2005. It features a 2-cylinder petrol air-cooled engine, which powers the two-wheel drive via a hydrostatic transmission. The machine is suited for use on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

25 hp

Transmissions

6-speed gear

Production years

2005-2005

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCraftsman (a part of Sears)Reference

ManufacturerAYPReference

Garden tractorReference

Two-wheel driveReference

SteeringmanualReference

Open operator stationReference

Variants

27635gearReference

27636hydrostaticReference

Engine

25HP Kohler 721cc 2-cyl gasolineReference

Fuel tank18.9 LReference

Kohler CV730Reference

gasolineReference

2-cylinderReference

air-cooled vertical-shaft V-TwinReference

Displacement44 ciReference

Bore/Stroke84 x 66 mmReference

Power (gross)18.6 kWReference

Air cleanerpaper cartridge with foam pre-cleanerReference

Compression9:1Reference

Rated RPM3600Reference

StarterelectricReference

Starter volts12Reference

SparkplugChampion RC12YCReference

Sparkplug gap0.762 mmReference

Oil capacity1.9 LReference

Image courtesy of D. WilliamsReference

Transmission

6-speed gearReference

TypegearReference

Gears6 forward and 2 reverseReference

PTO & Hydraulics

Mid PTOindependentReference

ClutchelectricReference

Mid PTO TypepulleyReference

Craftsman 917.27635 attachments

48" mid-mount mower deckReference

917.27635 Serial Numbers

Location:Serial number decal on the tractor's rear fender pan, under the seat.Reference

Electrical

GroundnegativeReference

Charging amps15Reference

Battery CCA280Reference

Battery volts12Reference

Battery AH35Reference

Battery GroupU1RReference

48" Mower deck

Typemid-mount CraftsmanReference

Type3-blade with manual liftReference

Cutting width121 cmReference

BeltAYP 180808 (on deck)Reference

BeltAYP 174368 (tractor to deck)Reference

Cut height3 to 11 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
