Lawn Tractor · 2006Unverified

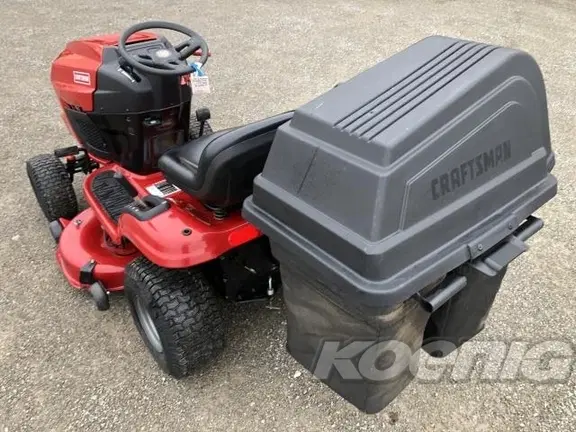

Craftsman 917.27680

Name: Craftsman 917.27680
Brand: Craftsman

Craftsman 917.27680 — YS 4500 Series · 24 hp. Reference specifications; pending source verification.

The Craftsman 917.27680 is a lawn tractor model with a 24 hp rating, positioning it in the higher-powered segment of its class. Manufactured in 2006, this model features a 2-cylinder petrol air-cooled engine, paired with a two-wheel drive system and hydrostatic transmission. It is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Catalogue coverage

Variants represented

Richest spec table

37 rows

Recorded power

24 hp

Transmissions

hydrostatic

Production years

2006-2006

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCraftsman (a part of Sears)Reference

ManufacturerAYPReference

Lawn tractorReference

Two-wheel driveReference

SteeringmanualReference

Open operator station.Reference

Engine

24HP Briggs & Stratton 724cc 2-cyl gasolineReference

Fuel tank11.4 LReference

Briggs & Stratton 445677Reference

gasolineReference

2-cylinderReference

air-cooled vertical-shaft V-TwinReference

Displacement44.18 ciReference

Bore/Stroke84 x 66 mmReference

Power (gross)17.9 kWReference

Air cleanerpaper cartridgeReference

Rated RPM3600Reference

StarterelectricReference

Starter volts12Reference

SparkplugChampion QC12YCReference

Sparkplug gap1.016 mmReference

Oil capacity1.9 LReference

Transmission

hydrostaticReference

TransmissionHydro Gear 356-0510Reference

Typebelt-driven hydrostaticReference

Gearsinfinite forward and reverseReference

Craftsman 917.27680 attachments

54" mid-mount mower deckReference

Electrical

GroundnegativeReference

Charging amps16Reference

Battery CCA280Reference

Battery volts12Reference

Battery AH35Reference

Battery GroupU1RReference

54" Mower deck

Typemid-mount CraftsmanReference

Type3-blade with manual liftReference

Cutting width137 cmReference

BeltAYP 196103Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
