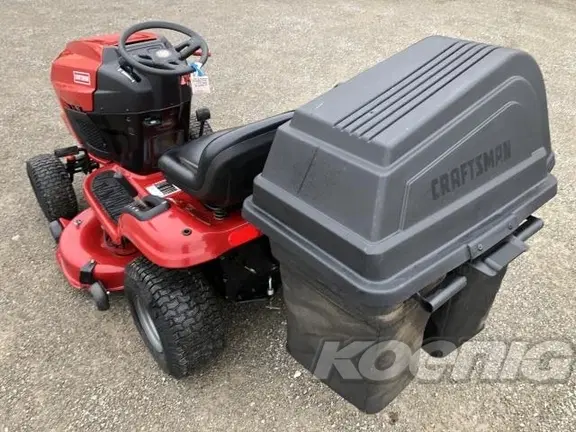

The Craftsman 917.28748 is a lawn tractor model with a rated output of 26 hp, positioning it among the higher-powered machines in its class. It was manufactured in 2007 and features a petrol air-cooled engine, which drives through two-wheel drive with a hydrostatic transmission. This model is suited to tasks requiring areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
26 hp
Transmissions
hydrostatic
Production years
2007-2007
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorCraftsman (a part of Sears)Reference
ManufacturerAYPReference
Garden tractorReference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Engine
26HP Kohler gasolineReference
Fuel tank15.1 LReference
Kohler SV735Reference
gasolineReference
air-cooledReference
Power (gross)19.4 kWReference
Air cleanerpaperReference
Rated RPM3600Reference
StarterelectricReference
Starter volts12Reference
SparkplugChampion RC12YCReference
Sparkplug gap0.762 mmReference
Oil capacity1.9 LReference
Transmission
hydrostaticReference
TransmissionTuff Torq K66Reference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typesleeve hitchReference
Craftsman 917.28748 attachments
48" mid-mount mower deckReference
snowblowerReference
bladeReference
Electrical
GroundnegativeReference
Charging amps15Reference
Battery CCA280Reference
Battery volts12Reference
Battery AH35Reference
Battery GroupU1RReference
Attachment overview
48" mid-mount mower deckReference
SnowblowerReference
BladeReference
48" Mower deck
Typemid-mount CraftsmanReference
Type3-blade with manual liftReference
Cutting width121 cmReference
BeltAYP 197242Reference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
