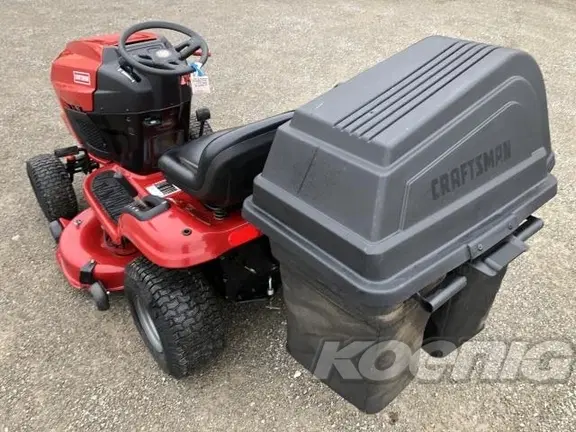

The Craftsman 917.28836 is a lawn tractor model with a power rating of approximately 20 hp, positioning it at the upper end of its class. Manufactured in 2008, this model features a 1-cylinder petrol air-cooled engine and a two-wheel drive system with hydrostatic transmission. Its operating weight is listed at 233 kg, making it suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
233 kg
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
20 hp
Recorded weight
233 kg
Transmissions
hydrostatic
Production years
2008-2008
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorCraftsman (a part of Sears)Reference
ManufacturerAYPReference
Lawn tractorReference
Two-wheel driveReference
Steeringmanual sector and pinionReference
Mechanical disc brakesReference
Open operator station with sliding adjustable seat and cup holder.Reference
Engine
20HP Kohler 597cc 1-cyl gasolineReference
Fuel tank9.5 LReference
KohlerReference
gasolineReference
1-cylinderReference
air-cooledReference
Displacement36.43 ciReference
Power (gross)14.9 kWReference
Air cleanerdual dry elementReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Dimensions
Weight233 kgReference
Front tire15x6x6Reference
Rear tire20x8x8Reference
Lawn/turf front15x6x6Reference
Lawn/turf rear20x8x8Reference
Craftsman 917.28836 attachments
46" mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Optional two (24903) or three (24904) bin rear bagger.Reference
46" Mower deck
Typemid-mount CraftsmanReference
Type2-blade with manual liftReference
Cutting width116 cmReference
Cut height3 to 10 cmReference
Cut positions6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
