Lawn Tractor · 2008Unverified

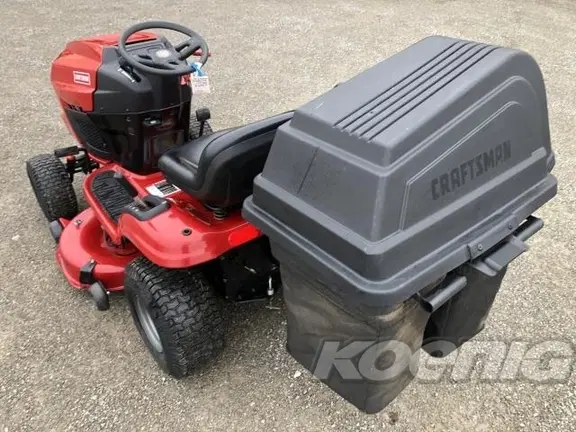

Craftsman Professional 917.28822
Craftsman Professional 917.28822 — YS 4500 Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
229 kg
Hover a source tag to verify
Overview
DistributorCraftsman Professional (a part of Sears)Reference
ManufacturerHusqvarnaReference
Lawn tractorReference
Two-wheel driveReference
Steeringmanual sector and pinionReference
Disc brakesReference
Open operator station with adjustable seat and cup holder.Reference
Variants
28821gear transmissionReference
28622California emissionsReference
Engine
20HP Briggs & Stratton 502cc 1-cyl gasolineReference
Fuel tank9.5 LReference
Briggs & StrattonReference
gasolineReference
1-cylinderReference
air-cooledReference
Displacement30.63 ciReference
Power (gross)14.9 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Dimensions
Weight229 kgReference
Front tire15x6x6Reference
Rear tire18x9.5x8Reference
Lawn/turf front15x6x6Reference
Lawn/turf rear18x9.5x8Reference
Craftsman Professional 917.28822 attachments
42" mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Optional two (24891) or three (24892) bin bagger.Reference
42" Mower deck
Typemid-mount CraftsmanReference
Type2-blade with manual liftReference
Cutting width106 cmReference
Cut height3 to 10 cmReference
Cut positions6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
