Tractor · 2004Unverified

Cub Cadet 5234D

Name: Cub Cadet 5234D
Brand: Cub Cadet

Cub Cadet 5234D — Sub-Compact Utility tractor · 17 hp. Reference specifications; pending source verification.

The Cub Cadet 5234D is a compact tractor with a rated output of 17 hp, making it a suitable option for smaller-scale applications. Produced between 2004 and 2008, it is powered by a 3-cylinder diesel liquid-cooled engine and features four-wheel drive with a hydrostatic transmission. The listed weight of the 5234D is 612 kg, and it is designed for tasks typically covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

17 hp

Weight

612 kg

Catalogue coverage

Variants represented

Richest spec table

76 rows

Recorded power

17 hp

Recorded weight

612 kg

Transmissions

hydrostatic

Production years

2004-2008

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCub CadetReference

Sub-Compact Utility tractorReference

Original price was $9,299 in 2007Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

External dual disc brakesReference

Two-post folding ROPS.Reference

Engine

Daihatsu 0.8L 3-cyl dieselReference

Engine17.2 kWReference

DaihatsuReference

dieselReference

3-cylinderReference

liquid-cooled OHVReference

Displacement0.8 LReference

Bore/Stroke68 x 78 mmReference

Power17.2 kWReference

Fuel systemindirect injectionReference

Rated RPM3600Reference

Idle RPM1200-3600Reference

Starter volts12Reference

Coolant capacity5.0 LReference

Intake valve clearance0.203 mmReference

Exhaust valve clearance0.203 mmReference

Oil capacity3.3 LReference

Oil change150 hReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity18.9 LReference

Oil typeCub Cadet Drive System Fluid PlusReference

Oil change200 hReference

Two-range hydrostatic transmission with right-hand forward and reverse pedals. Tractor must be stopped to shift ranges.Reference

PTO & Hydraulics

PTO (claimed)12.7 kWReference

Hydraulic system18.9 LReference

Typeopen centerReference

Capacity18.9 LReference

Pressure103.4 barReference

Valves1 (optional)Reference

Total flow20.8 lpmReference

Rear TypeIReference

Rear lift (at ends)464 kgReference

Rear lift (at 24"/610mm)308 kgReference

Rear PTOindependentReference

ClutchelectricReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Capacities

Fuel21.2 LReference

Dimensions

Wheelbase139 cmReference

Weight612 kgReference

Front tire18x9.5-8Reference

Rear tire26x12x12Reference

Ag front18x9.5-8Reference

Ag rear26x12x12Reference

Lawn/turf front18x8.5-8Reference

Lawn/turf rear26x12-12Reference

Length215 cmReference

Length261 cmReference

Width114 cmReference

Height (ROPS)208 cmReference

Cub Cadet 5234D attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

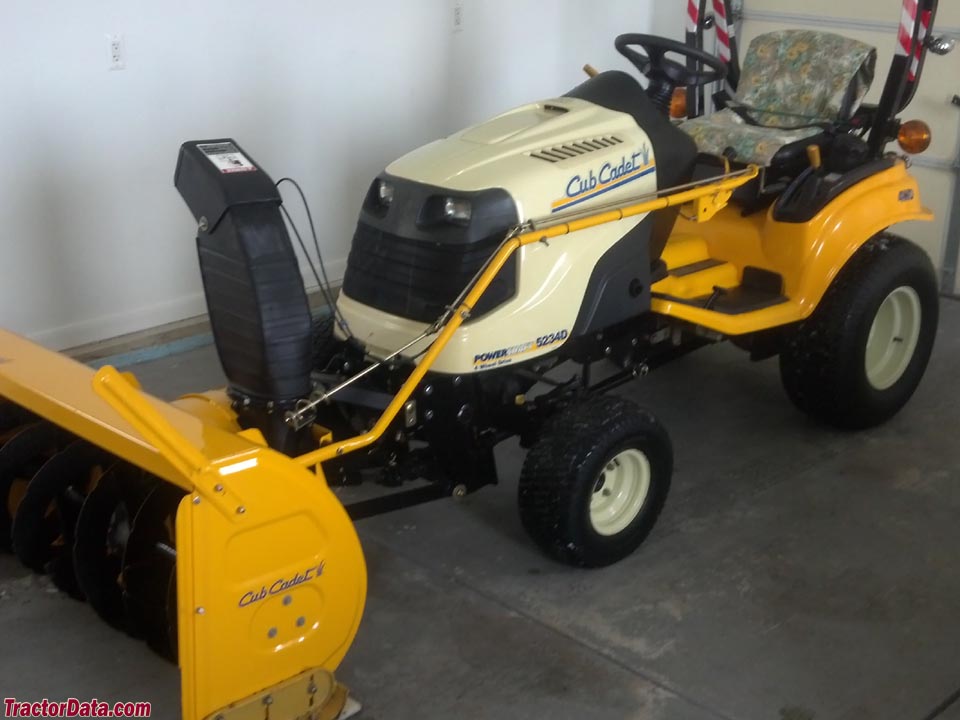

snowblowerReference

bladeReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps30Reference

Battery CCA500Reference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
