Tractor · 1996Unverified

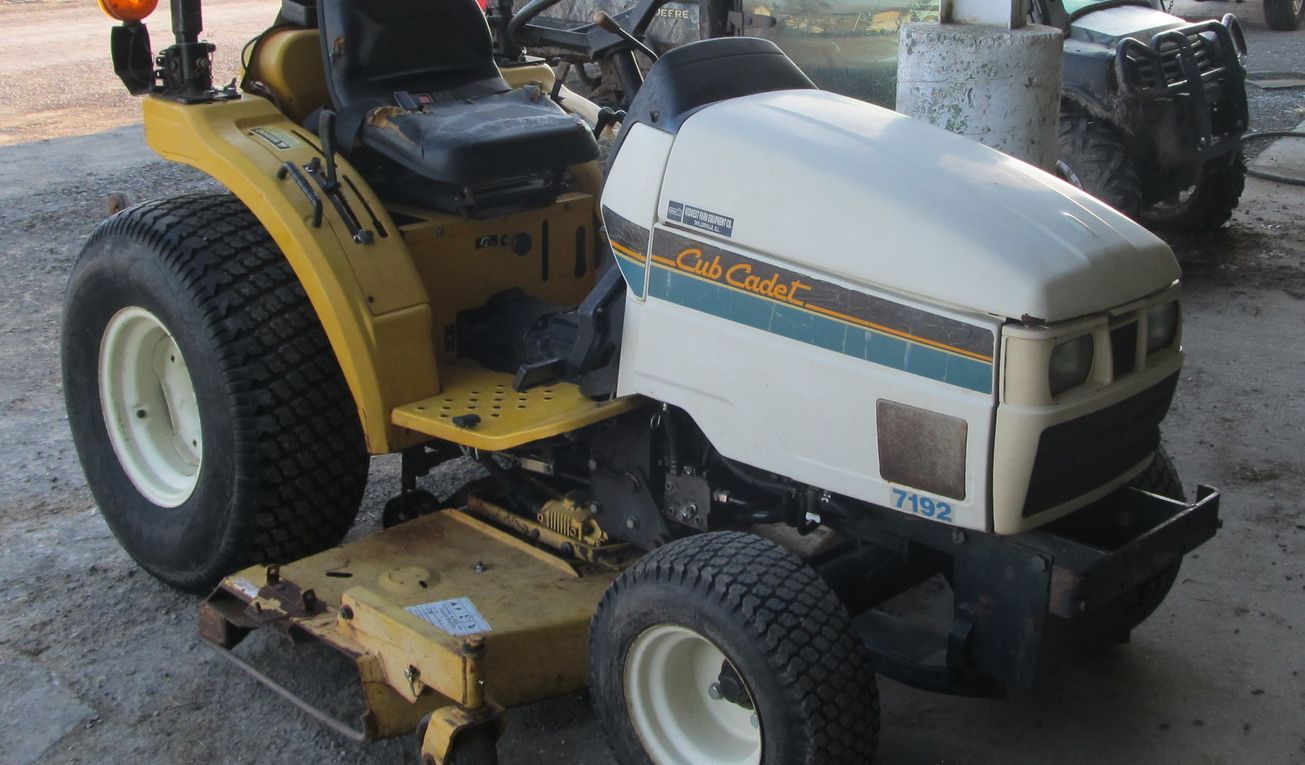

Cub Cadet 7192

Name: Cub Cadet 7192
Brand: Cub Cadet

Cub Cadet 7192 — Compact Utility tractor · 17 hp. Reference specifications; pending source verification.

The Cub Cadet 7192 is a tractor model with a rated power of 17 horsepower, positioning it at the lighter end of its class. It was manufactured from 1996 to 1997. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine and features four-wheel drive with a hydrostatic transmission. It has an operating weight of 833 kilograms, suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

17 hp

Weight

833 kg

Catalogue coverage

Variants represented

Richest spec table

70 rows

Recorded power

17 hp

Recorded weight

833 kg

Transmissions

6-speed partially synchronized gear

Production years

1996-1997

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCub CadetReference

ManufacturerMitsubishiReference

Compact Utility tractorReference

Original price$12,000 (1997)Reference

Two-wheel driveReference

Differential lockrear standardReference

Steeringhydrostatic powerReference

Expanding dry shoe brakesReference

Two-post foldable ROPS.Reference

Variants

71922WD GearReference

71932WD HydrostaticReference

71944WD GearReference

71954WD HydrostaticReference

Engine

Mitsubishi 1.1L 3-cyl dieselReference

Fuel tank20.1 LReference

Engine14.2 kWReference

Mitsubishi K3EReference

dieselReference

3-cylinderReference

liquid-cooled overhead valve (OHV)Reference

Displacement1.1 LReference

Bore/Stroke76 x 78 mmReference

Power14.2 kWReference

Fuel systemindirect injectionReference

Compression23:1Reference

Rated RPM2500Reference

Firing order1-3-2Reference

Starter volts12Reference

Oil capacity3.5 LReference

Coolant capacity5.7 LReference

Intake valve clearance0.254 mmReference

Exhaust valve clearance0.254 mmReference

Transmission

6-speed partially synchronized gearReference

Typepartially synchronized gearReference

Gears6 forward and 2 reverseReference

Oil capacity19.0 LReference

Three gears, plus reverse, in two ranges.Reference

PTO & Hydraulics

PTO (claimed)12.3 kWReference

Typeopen centerReference

Pressure147.1 barReference

Pump flow20.4 lpmReference

Steering flow12.1 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)635 kgReference

Rear lift (at 24"/610mm)444 kgReference

Rear PTOlive independentReference

Rear PTO Type540 (1.375)Reference

Mid PTOlive independentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase147 cmReference

Weight833 kgReference

Front tire20x8.00-10Reference

Rear tire9.50-16Reference

Ag front20x8.00-10Reference

Ag rear9.50-16Reference

Lawn/turf front20x8.00-10Reference

Lawn/turf rear33x12.50-15Reference

Length270 cmReference

Width117 cmReference

Height (ROPS)200 cmReference

Cub Cadet 7192 attachments

60" mid-mount mower deckReference

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

Front-end loaderReference

60" Mower deck

Typemid-mount Cub Cadet 401Reference

Type3-bladeReference

Cutting width152 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
