Tractor · 1998Unverified

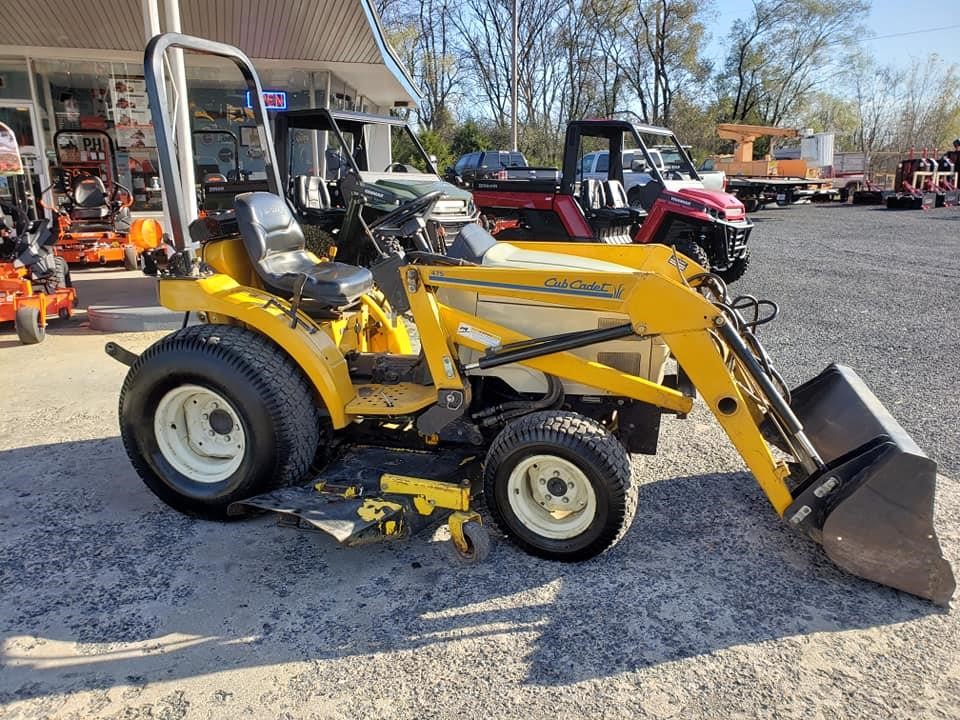

Cub Cadet 7200
Cub Cadet 7200 — Sub-Compact Utility tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
890 kg
Hover a source tag to verify
Overview
ManufacturerCub CadetReference
Sub-Compact Utility tractorReference
Original price$11,475 (2000 )Reference
Original price$12,600 (2003 )Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical dry shoe brakesReference
Two-post folding ROPS.Reference
Variants
70002WD gearReference
72004WD gearReference
72054WD hydroReference
Engine
Mitsubishi 1.1L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine14.9 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power14.9 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM2500Reference
Idle RPM950-2680Reference
Firing order1-3-2Reference
Starter volts12Reference
Coolant capacity5.7 LReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.254 mmReference
Oil capacity4.2 LReference
Oil change100 hReference
Transmission
6-speed partially synchronizedReference
Typepartially synchronizedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity19.0 LReference
PTO & Hydraulics
PTO (claimed)13.0 kWReference
Typeopen centerReference
Pressure147.1 barReference
Pump flow22.0 lpmReference
Total flow34.8 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)635 kgReference
Rear lift (at 24"/610mm)444 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2356Reference
Mid PTOliveReference
Mid PTO Type2000 (1.0)Reference
Engine RPM2000@2470Reference
Dimensions
Wheelbase147 cmReference
Weight890 kgReference
Front tire6x12Reference
Rear tire9.5x16Reference
Weight430 kgReference
Ag front6x12Reference
Ag rear9.5x16Reference
Lawn/turf front23x8.5-12Reference
Lawn/turf rear33x12.5-15Reference
Industrial front23x8.5-12Reference
Industrial rear12-16.5Reference
Length270 cmReference
Width117 cmReference
Height (ROPS)200 cmReference
Ground clearance23 cmReference
890 kgReference
Max Drawbar379 kgReference
Cub Cadet 7200 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount Cub Cadet 590-401-100Reference
Type3-bladeReference
Cutting width152 cmReference
Cub Cadet 590-457-100 Backhoe
Backhoe typeCub Cadet 590-457-100 BackhoeReference
Transport height169 cmReference
Bucket width20 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Digging depth198 cmReference
Reach from pivot238 cmReference
Loading height133 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1179 kgReference
Dipperstick force562 kgReference
Capacities
Max capacity1450 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
