Tractor · 1996Unverified

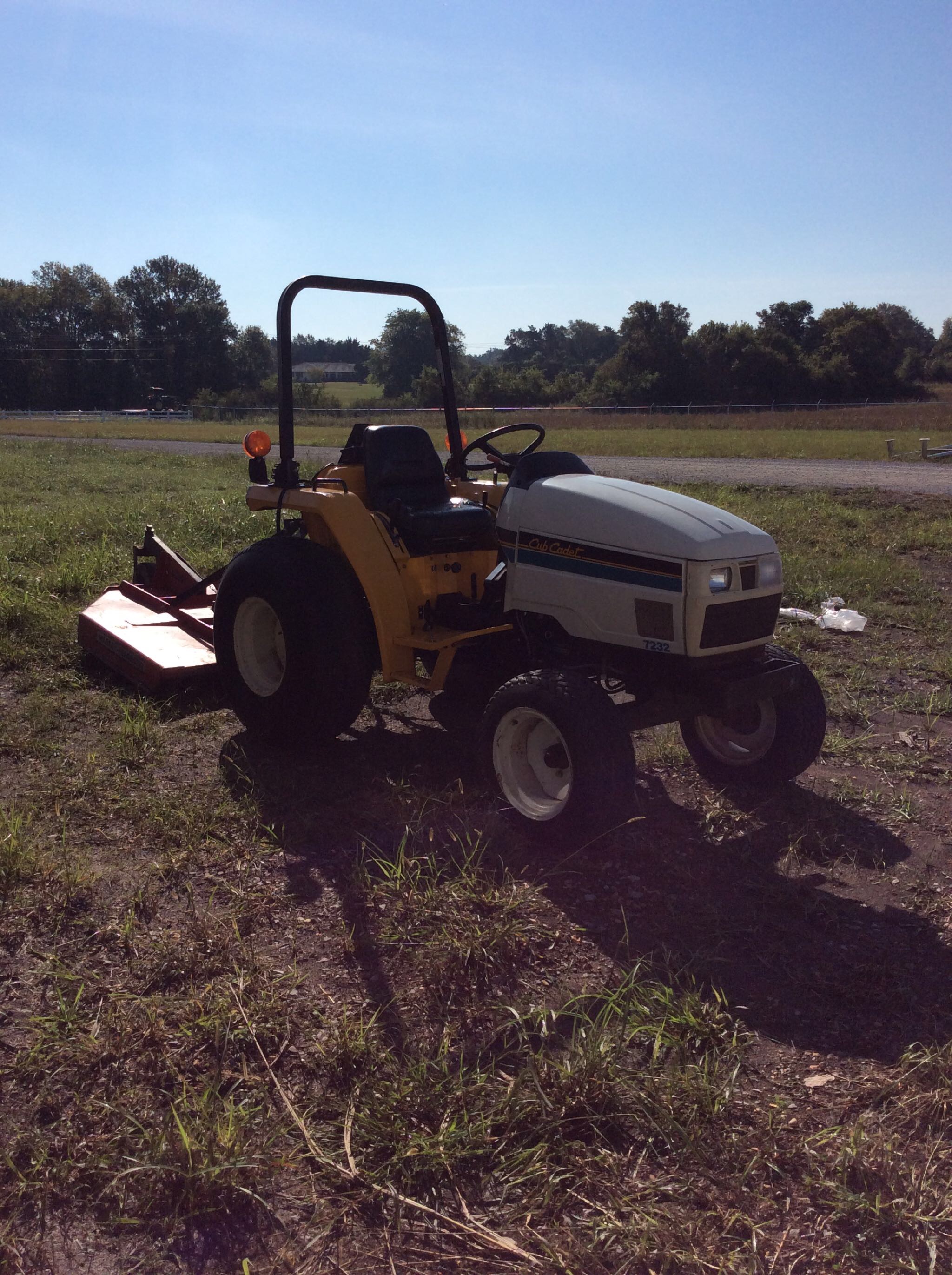

Cub Cadet 7232
Cub Cadet 7232 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1084 kg
Hover a source tag to verify
Overview
DistributorCub CadetReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price was $13,000 in 1997Reference
Two-wheel driveReference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS. Optional canopy.Reference
Variants
72322WD GearReference
72332WD HydrostaticReference
72344WD GearReference
72354WD HydrostaticReference
Engine
Mitsubishi 1.2L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine17.2 kWReference
Mitsubishi K3GReference
dieselReference
3-cylinderReference
liquid-cooled overhead valve (OHV)Reference
Displacement1.2 LReference
Bore/Stroke82 x 78 mmReference
Power17.2 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression18.7:1Reference
Rated RPM2500Reference
Idle RPM970-2750Reference
Firing order1-3-2Reference
Starter volts12Reference
Coolant capacity5.3 LReference
Coolant change1000 hReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.254 mmReference
Oil capacity3.5 LReference
Oil change100 hReference
Transmission
9-speed partially-synchronized gearReference
Typepartially-synchronized gearReference
Gears9 forward and 3 reverseReference
Clutch215mm mechanical dry discReference
Oil capacity24.0 LReference
Oil typeCub Cadet Hy-TranReference
Oil change200 hReference
Three gears (1-3) plus reverse (R) in three ranges (low, medium, and high). Gear shifts are synchronized using the foot clutch. Tractor must be stopped, and clutch used, to shift range.Reference
PTO & Hydraulics
PTO (claimed)14.9 kWReference
Typeopen centerReference
Pressure147.1 barReference
Pump flow27.3 lpmReference
Steering flow12.1 lpmReference
Rear TypeIReference
Rear lift (at ends)1000 kgReference
Rear lift (at 24"/610mm)749 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2356Reference
Mid PTOliveReference
Mid PTO Type2000 (1.0)Reference
Engine RPM2000@2421Reference
Dimensions
Wheelbase165 cmReference
Weight1084 kgReference
Front tire5.00-15Reference
Rear tire11.2-24Reference
Ag front5.00-15Reference
Ag rear11.2-24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6-16Reference
Length292 cmReference
Width131 cmReference
Height (ROPS)212 cmReference
Max Drawbar379 kgReference
Cub Cadet 7232 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
front-end loaderReference
backhoeReference
7232 Serial Number Location
Serial number plate on the right side of the tractor frame, behind the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
Cub Cadet 408 Backhoe
Backhoe typeCub Cadet 408 BackhoeReference
Bucket width20 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Digging depth233 cmReference
2-Foot flat digging depth228 cmReference
Reach from pivot284 cmReference
Loading height167 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1134 kgReference
Dipperstick force810 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
