Tractor · 1996Unverified

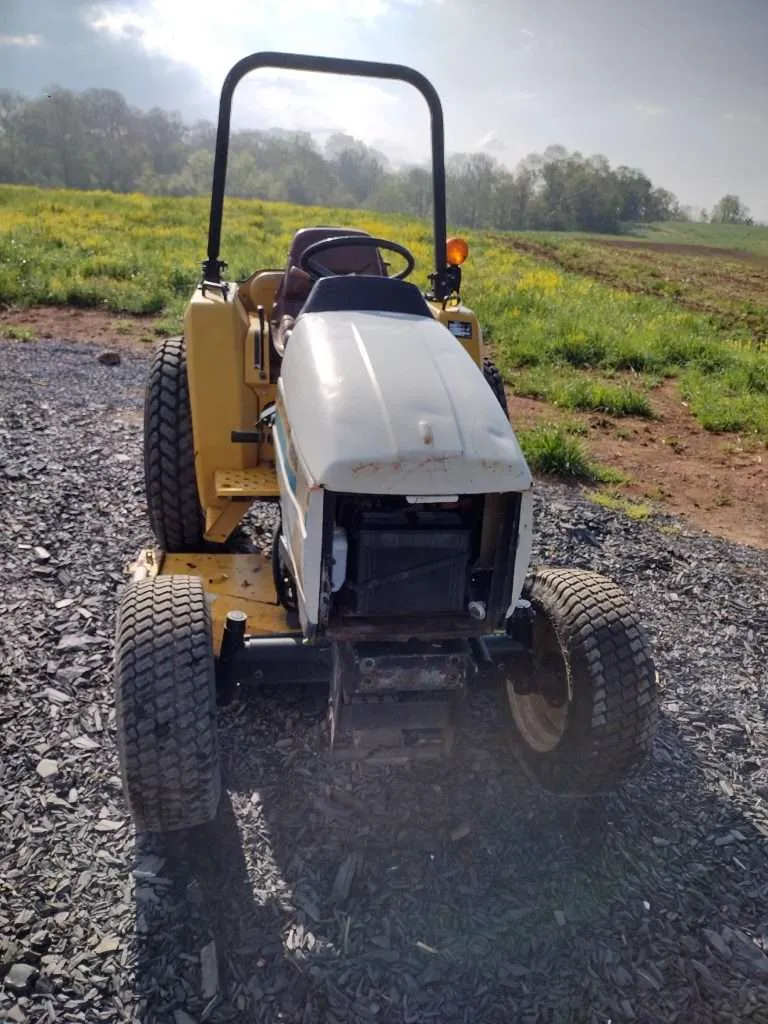

Cub Cadet 7233

Name: Cub Cadet 7233
Brand: Cub Cadet

Cub Cadet 7233 — Compact Utility tractor · 18 hp. Reference specifications; pending source verification.

The Cub Cadet 7233 is a compact tractor with an 18 hp rated output, produced between 1996 and 1997. Powered by a 3-cylinder diesel liquid-cooled engine, it features a hydrostatic transmission and four-wheel drive system. The tractor weighs 1097 kg and is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Weight

1097 kg

Catalogue coverage

Variants represented

Richest spec table

92 rows

Recorded power

18 hp

Recorded weight

1097 kg

Transmissions

hydrostatic

Production years

1996-1997

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCub CadetReference

ManufacturerMitsubishiReference

Compact Utility tractorReference

Original price was $15,000 in 1997Reference

Two-wheel driveReference

Differential lockrear standardReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS. Optional canopy.Reference

Variants

72322WD GearReference

72332WD HydrostaticReference

72344WD GearReference

72354WD HydrostaticReference

Engine

Mitsubishi 1.2L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine17.2 kWReference

Mitsubishi K3GReference

dieselReference

3-cylinderReference

liquid-cooled overhead valve (OHV)Reference

Displacement1.2 LReference

Bore/Stroke82 x 78 mmReference

Power17.2 kWReference

Fuel systemdirect injectionReference

Air cleanerdryReference

Compression18.7:1Reference

Rated RPM2500Reference

Idle RPM970-2750Reference

Firing order1-3-2Reference

Starter volts12Reference

Coolant capacity5.3 LReference

Coolant change1000 hReference

Intake valve clearance0.254 mmReference

Exhaust valve clearance0.254 mmReference

Oil capacity3.5 LReference

Oil change100 hReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity22.0 LReference

Oil typeCub Cadet Hy-TranReference

Oil change200 hReference

PTO & Hydraulics

PTO (claimed)13.4 kWReference

Typeopen centerReference

Pressure147.1 barReference

Pump flow27.3 lpmReference

Steering flow12.1 lpmReference

Rear TypeIReference

Rear lift (at ends)1000 kgReference

Rear lift (at 24"/610mm)749 kgReference

Rear PTOlive independentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2356Reference

Mid PTOlive independentReference

Mid PTO Type2000 (1.0)Reference

Engine RPM2000@2421Reference

Dimensions

Wheelbase165 cmReference

Weight1097 kgReference

Front tire5.00-15Reference

Rear tire11.2-24Reference

Ag front5.00-15Reference

Ag rear11.2-24Reference

Lawn/turf front25x8.50-14Reference

Lawn/turf rear13.6-16Reference

Length292 cmReference

Width131 cmReference

Height (ROPS)212 cmReference

Max Drawbar379 kgReference

Cub Cadet 7233 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

Cub Cadet 408 Backhoe

Backhoe typeCub Cadet 408 BackhoeReference

Bucket width20 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Digging depth233 cmReference

2-Foot flat digging depth228 cmReference

Reach from pivot284 cmReference

Loading height167 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1134 kgReference

Dipperstick force810 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
