Tractor · 1996Unverified

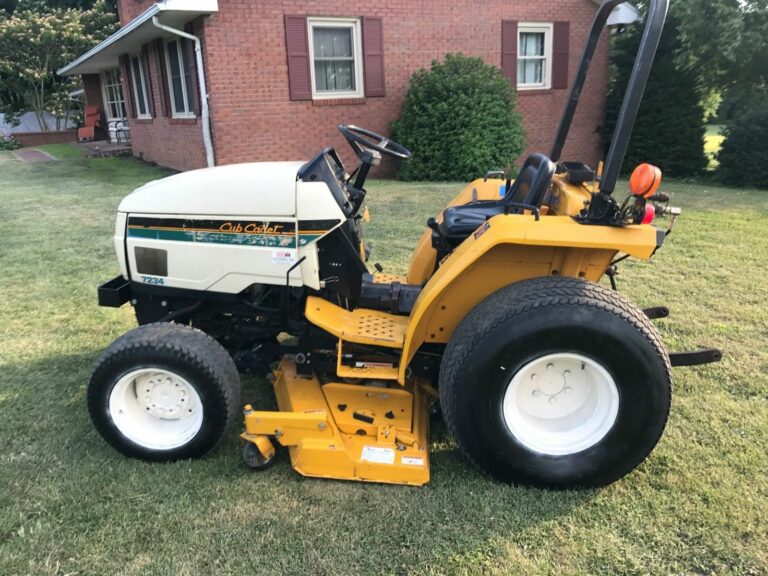

Cub Cadet 7234

Name: Cub Cadet 7234
Brand: Cub Cadet

Cub Cadet 7234 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.

The Cub Cadet 7234 is a tractor with a rated power output of 20 hp, positioning it within the lighter category of its class. Manufactured from 1996 to 1997, this model is equipped with a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a hydrostatic transmission. It has an operating weight of 1138 kg and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

1138 kg

Catalogue coverage

Variants represented

Richest spec table

94 rows

Recorded power

20 hp

Recorded weight

1138 kg

Transmissions

9-speed partially-synchronized gear

Production years

1996-1997

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCub CadetReference

ManufacturerMitsubishiReference

Compact Utility tractorReference

Original price was $14,200 in 1997Reference

Four-wheel driveReference

Differential lockrear standardReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS. Optional canopy.Reference

Variants

72322WD GearReference

72332WD HydrostaticReference

72344WD GearReference

72354WD HydrostaticReference

Engine

Mitsubishi 1.2L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine17.2 kWReference

Mitsubishi K3GReference

dieselReference

3-cylinderReference

liquid-cooled overhead valve (OHV)Reference

Displacement1.2 LReference

Bore/Stroke82 x 78 mmReference

Power17.2 kWReference

Fuel systemdirect injectionReference

Air cleanerdryReference

Compression18.7:1Reference

Rated RPM2500Reference

Idle RPM970-2750Reference

Firing order1-3-2Reference

Starter volts12Reference

Coolant capacity5.3 LReference

Coolant change1000 hReference

Intake valve clearance0.254 mmReference

Exhaust valve clearance0.254 mmReference

Oil capacity3.5 LReference

Oil change100 hReference

Transmission

9-speed partially-synchronized gearReference

Typepartially-synchronized gearReference

Gears9 forward and 3 reverseReference

Clutch215mm mechanical dry discReference

Oil capacity24.0 LReference

Oil typeCub Cadet Hy-TranReference

Oil change200 hReference

Three gears (1-3) plus reverse (R) in three ranges (low, medium, and high). Gear shifts are synchronized using the foot clutch. Tractor must be stopped, and clutch used, to shift range.Reference

PTO & Hydraulics

PTO (claimed)14.9 kWReference

Typeopen centerReference

Pressure147.1 barReference

Pump flow27.3 lpmReference

Steering flow12.1 lpmReference

Rear TypeIReference

Rear lift (at ends)1000 kgReference

Rear lift (at 24"/610mm)749 kgReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2356Reference

Mid PTOliveReference

Mid PTO Type2000 (1.0)Reference

Engine RPM2000@2421Reference

Dimensions

Wheelbase165 cmReference

Weight1138 kgReference

Front tire6.70-15Reference

Rear tire11.2-24Reference

Ag front6.70-15Reference

Ag rear11.2-24Reference

Lawn/turf front25x8.50-14Reference

Lawn/turf rear13.6-16Reference

Length292 cmReference

Width131 cmReference

Height (ROPS)212 cmReference

Max Drawbar379 kgReference

Cub Cadet 7234 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

Cub Cadet 408 Backhoe

Backhoe typeCub Cadet 408 BackhoeReference

Bucket width20 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Digging depth233 cmReference

2-Foot flat digging depth228 cmReference

Reach from pivot284 cmReference

Loading height167 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1134 kgReference

Dipperstick force810 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
