Tractor · 2003Unverified

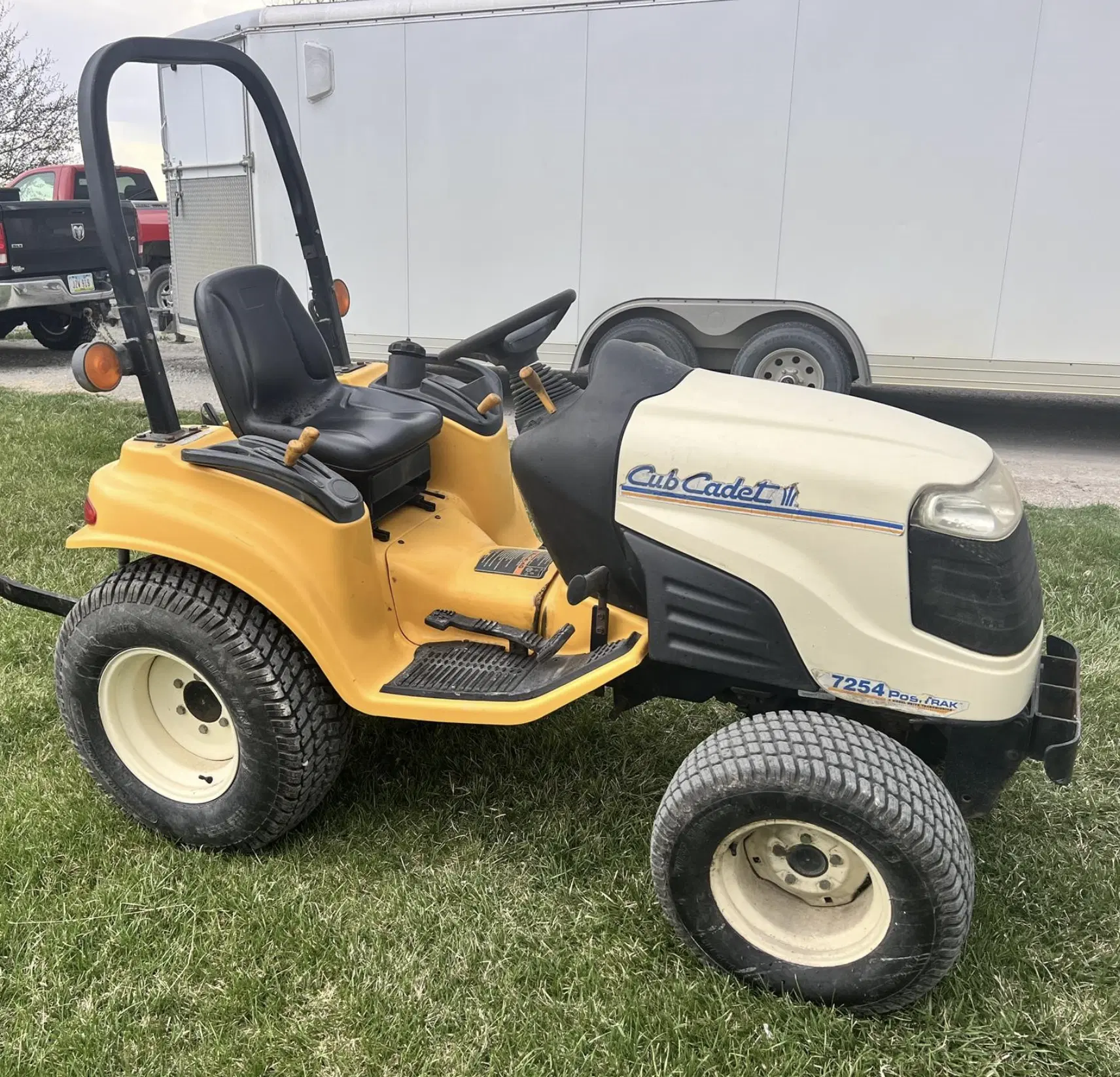

Cub Cadet 7254

Name: Cub Cadet 7254
Brand: Cub Cadet

Cub Cadet 7254 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.

The Cub Cadet 7254 is a tractor with a power rating of approximately 20 hp, positioning it within the lighter weight class of its category. It was manufactured in 2003. The tractor features a 2-cylinder petrol liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its listed operating weight is 753 kg, suitable for operations on areas of up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

753 kg

Catalogue coverage

Variants represented

Richest spec table

103 rows

Recorded power

20 hp

Recorded weight

753 kg

Transmissions

hydrostatic

Production years

2003-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCub CadetReference

Compact Utility tractorReference

Original price was $11,700 in 2003Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydrostatic powerReference

Dry shoe brakesReference

Two-post foldable ROPS.Reference

Variants

72522WDReference

72544WDReference

Engine

Kawasaki 0.7L 2-cyl gasolineReference

Engine18.6 kWReference

Kawasaki FD750Reference

gasolineReference

2-cylinderReference

liquid-cooledReference

Displacement0.7 LReference

Bore/Stroke78 x 78 mmReference

Power18.6 kWReference

Fuel systemdual carburetorReference

Air cleanerpaper elementReference

Pre-heatingcoolant heater (optional)Reference

Rated RPM3600Reference

Idle RPM1550-3600Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity3.3 LReference

Coolant change400 hReference

Sparkplug gap0.762 mmReference

Intake valve clearance0.152 mmReference

Exhaust valve clearance0.152 mmReference

Oil capacity2.0 LReference

Oil change100 hReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity22.7 LReference

Oil typeCab Cadet Hy-Trans FluidReference

Hydrostatic transmission with forward-reverse tredle pedal and high-low range shift. Tractor must be stopped to shift range.Reference

PTO & Hydraulics

PTO (claimed)14.9 kWReference

Hydraulic system22.7 LReference

Typeopen center gear pumpReference

Capacity22.7 LReference

Pressure103.4 barReference

Pump flow18.9 lpmReference

Total flow30.3 lpmReference

Steering flow11.4 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)521 kgReference

Rear lift (at 24"/610mm)430 kgReference

Rear PTOindependentReference

ClutchelectricReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@3500Reference

Mid PTOindependentReference

Mid PTO Type2000 (1.000)Reference

Capacities

Fuel22.7 LReference

Front axle0.9 LReference

Front hubs0.7 LReference

Dimensions

Wheelbase147 cmReference

Weight753 kgReference

Front tire6x12Reference

Rear tire9.5x16Reference

Weight430 kgReference

Ag front6x12Reference

Ag rear9.5x16Reference

Lawn/turf front23x9.5-12Reference

Lawn/turf rear31x12-15Reference

Industrial front23x8.5Reference

Industrial rear12x16.5Reference

Length231 cmReference

Length276 cmReference

Width121 cmReference

Height134 cmReference

Height (ROPS)200 cmReference

Ground clearance25 cmReference

Cub Cadet 7254 attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemflywheel alternatorReference

Charging amps30Reference

Battery CCA500Reference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

In addition to the mid-mount mowers, the Cub Cadet 7254 was advertised as compatible with 60-inch rear-mount finish mower and 48-inch rotary cutter. Recommended ground tools included a 48-inch box blade, 60-inch rear blade, and 50-inch tiller.Reference

Cub Cadet 612 Backhoe

Backhoe typeCub Cadet 612 BackhoeReference

Digging depth198 cmReference

Reach from pivot238 cmReference

Loading height133 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force877 kgReference

Dipperstick force458 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
