Tractor · 1998Unverified

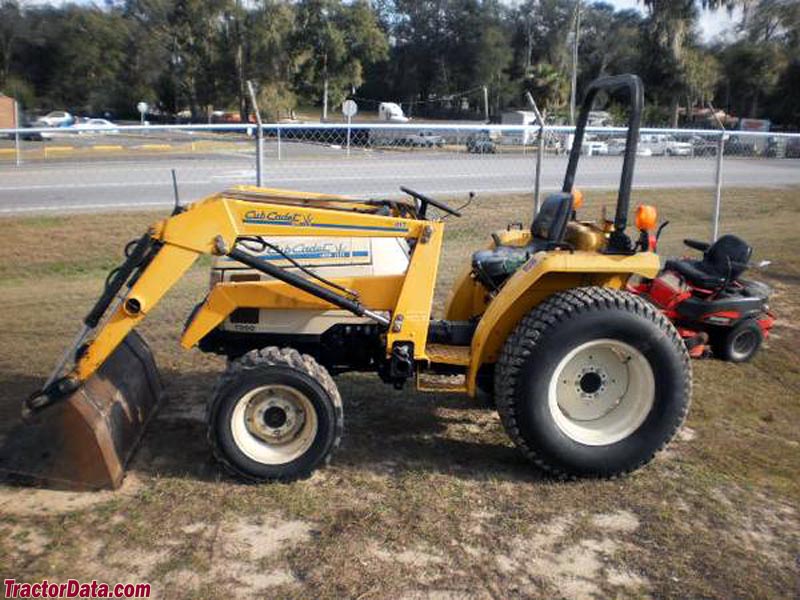

Cub Cadet 7260
Cub Cadet 7260 — Compact Utility tractor · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
1050 kg
Hover a source tag to verify
Overview
ManufacturerCub CadetReference
Compact Utility tractorReference
Original price$13,050 (2000 )Reference
Original price$14,600 (2003 )Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Variants
7260gearReference
7265hydrostaticReference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Engine (gross)19.4 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power (gross)19.4 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression22:1Reference
Rated RPM2600Reference
Idle RPM950-2780Reference
Firing order1-3-2Reference
Starter volts12Reference
Starter power1.6 kWReference
Coolant capacity6.3 LReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.254 mmReference
Oil capacity4.2 LReference
Oil change100 hReference
Transmission
9-speed partially synchronized gearReference
Typepartially synchronized gearReference
Gears9 forward and 3 reverseReference
Clutchtwo-stage 215mm dry discReference
Oil capacity24.0 LReference
Three gears, plus reverse, in three ranges. Gears are synchronized and can be shifted on the move with the clutch. Tractor must be stopped to shift range.Reference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
Typeopen centerReference
Pressure147.1 barReference
Valves1 or 2Reference
Pump flow29.5 lpmReference
Rear TypeIReference
Controlposition control with optional draft controlReference
Rear lift (at 24"/610mm)749 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2376Reference
Mid PTOliveReference
Mid PTO Type2000Reference
Engine RPM2000@2632Reference
Capacities
Fuel29.9 LReference
Front axle4.0 LReference
Max capacity2199 kgReference
Dimensions
Wheelbase165 cmReference
Weight1050 kgReference
Front tire7-14Reference
Rear tire9.5-24Reference
Weight453 kgReference
Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Industrial front25x8.5-14Reference
Industrial rear13.6-16Reference
Length292 cmReference
Width131 cmReference
Height (ROPS)212 cmReference
Ground clearance30 cmReference
1050 kgReference
Max Drawbar379 kgReference
Max front axle969 kgReference
Max rear axle1349 kgReference
Cub Cadet 7260 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
front-end loaderReference
backhoeReference
7260 Serial Numbers
Location:Serial number plate on the right side of the tractor frame, just behind the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Charging volts12Reference
Battery CCA500Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
Cub Cadet 590-408-100 Backhoe
Backhoe typeCub Cadet 590-408-100 BackhoeReference
Transport height182 cmReference
Bucket width20 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Digging depth228 cmReference
Reach from pivot284 cmReference
Loading height172 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1224 kgReference
Dipperstick force816 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
