Tractor · 2003Unverified

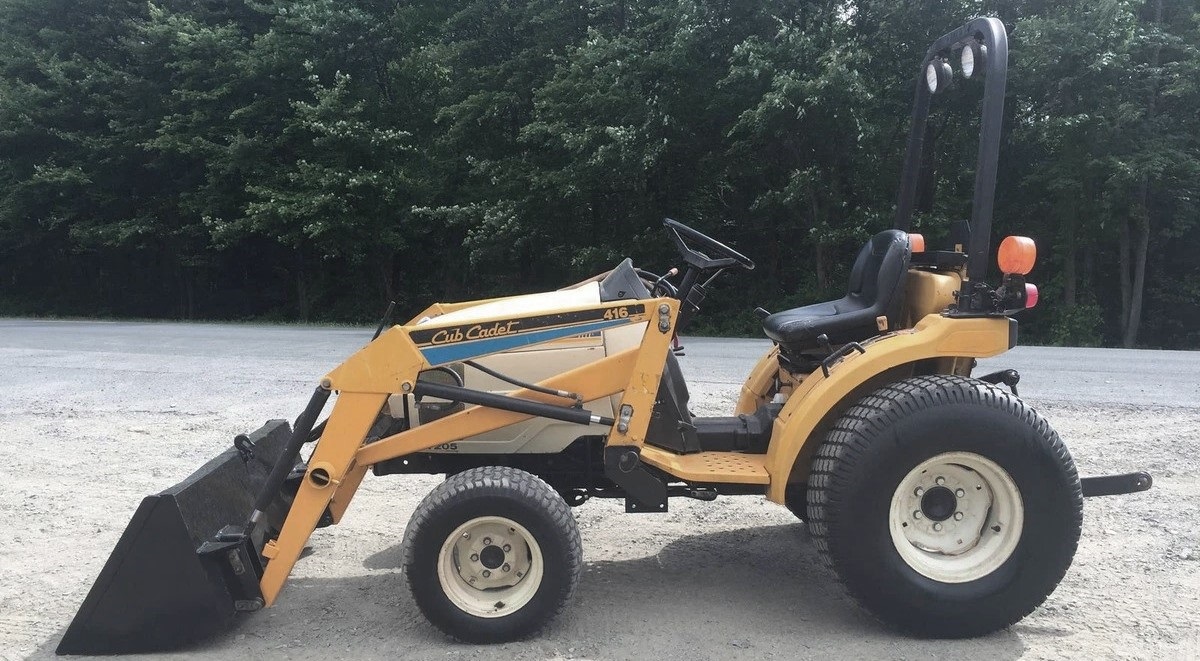

Cub Cadet 7264

Name: Cub Cadet 7264
Brand: Cub Cadet

Cub Cadet 7264 — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.

The Cub Cadet 7264 is a compact tractor model with a rated engine power of 21 hp. Manufactured from 2003 to 2004, this tractor features a 3-cylinder diesel liquid-cooled engine, which powers four-wheel drive via a hydrostatic transmission. The listed operating weight is 783 kg, and it is suited for tasks on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

21 hp

Weight

783 kg

Catalogue coverage

Variants represented

Richest spec table

96 rows

Recorded power

21 hp

Recorded weight

783 kg

Transmissions

hydrostatic

Production years

2003-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCub CadetReference

Compact Utility tractorReference

Original price$13,200 (2004)Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydrostatic powerReference

Dry shoe brakesReference

Two-post foldable ROPS.Reference

Engine

Daihatsu 1.0L 3-cyl dieselReference

Engine19.4 kWReference

Daihatsu DM950DReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke72 x 78 mmReference

Power19.4 kWReference

Fuel systemindirect injectionReference

Air cleanerpaper elementReference

Rated RPM3600Reference

Idle RPM1200-3600Reference

Starter volts12Reference

Coolant capacity5.0 LReference

Intake valve clearance0.203 mmReference

Exhaust valve clearance0.203 mmReference

Oil capacity3.3 LReference

Oil change150 hReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity22.7 LReference

Oil typeCab Cadet Hy-Trans FluidReference

Oil change200 hReference

Hydrostatic transmission with forward-reverse tredle pedal and high-low range shift. Tractor must be stopped to shift range.Reference

PTO & Hydraulics

PTO (claimed)15.7 kWReference

Hydraulic system22.7 LReference

Typeopen center gear pumpReference

Capacity22.7 LReference

Pressure103.4 barReference

Pump flow18.9 lpmReference

Total flow30.3 lpmReference

Steering flow11.4 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)521 kgReference

Rear lift (at 24"/610mm)430 kgReference

Rear PTOindependentReference

ClutchelectricReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@3500Reference

Mid PTOindependentReference

Mid PTO Type2000 (1.000)Reference

Capacities

Fuel22.7 LReference

Dimensions

Wheelbase147 cmReference

Weight783 kgReference

Front tire6x12Reference

Rear tire9.5x16Reference

Weight430 kgReference

Ag front6x12Reference

Ag rear9.5x16Reference

Lawn/turf front23x9.5-12Reference

Lawn/turf rear31x12-15Reference

Industrial front23x8.5Reference

Industrial rear12x16.5Reference

Length231 cmReference

Length276 cmReference

Width121 cmReference

Height142 cmReference

Height (ROPS)208 cmReference

Ground clearance25 cmReference

Cub Cadet 7264 attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps30Reference

Battery CCA500Reference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

In addition to the mid-mount mowers, the Cub Cadet 7264 was advertised as compatible with 60-inch rear-mount finish mower and 48-inch rotary cutter. Recommended ground tools included a 48-inch box blade, 60-inch rear blade, and 50-inch tiller.Reference

Cub Cadet 612 Backhoe

Backhoe typeCub Cadet 612 BackhoeReference

Digging depth198 cmReference

Reach from pivot238 cmReference

Loading height133 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force877 kgReference

Dipperstick force458 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
