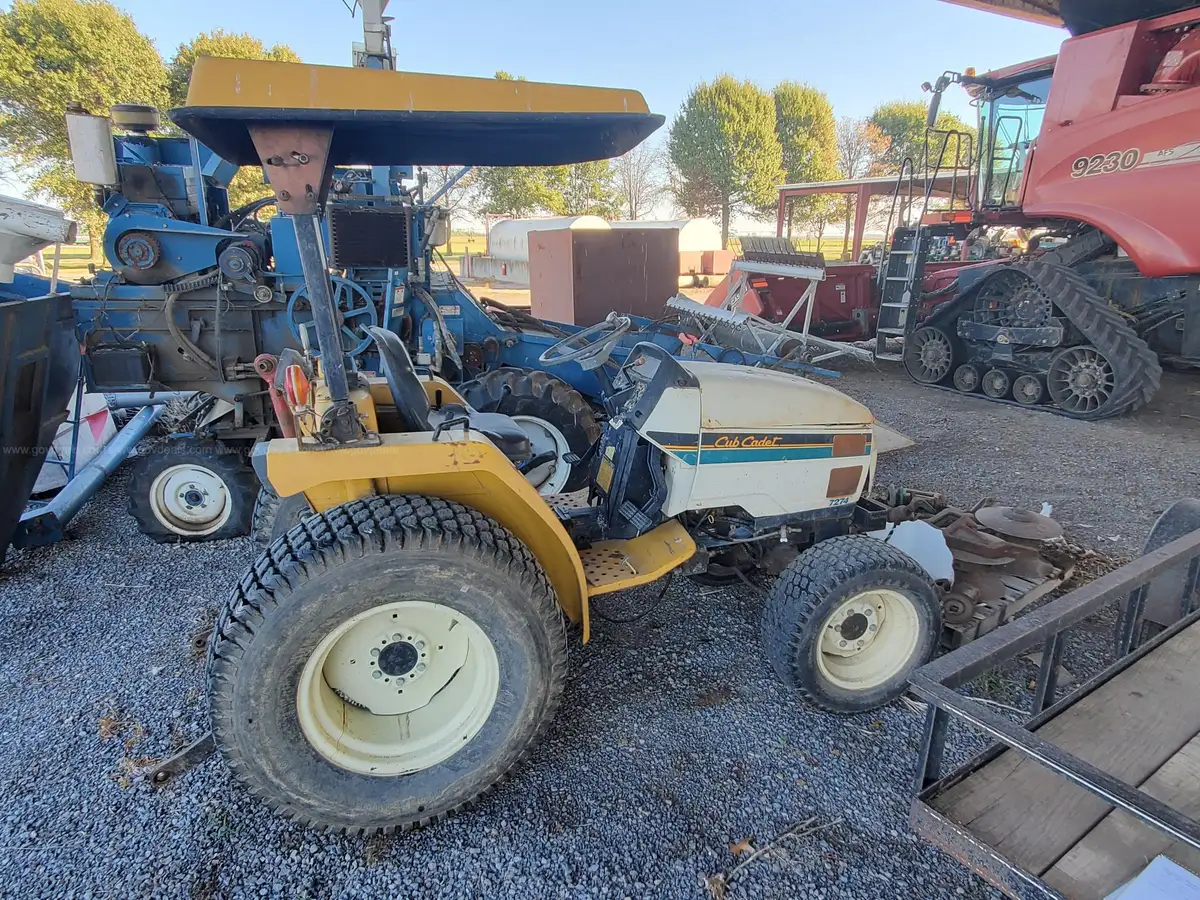

Cub Cadet 7274
Cub Cadet 7274 — Compact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1204 kg
Hover a source tag to verify
Overview
DistributorCub CadetReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price was $16,200 in 1997Reference
Four-wheel driveReference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS. Canopy optional.Reference
Variants
72722WD GearReference
72732WD HydrostaticReference
72744WD GearReference
72754WD HydrostaticReference
Engine
Mitsubishi 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine20.1 kWReference
Mitsubishi K3MReference
dieselReference
3-cylinderReference
liquid-cooled overhead valve (OHV)Reference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power20.1 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression18:1Reference
Rated RPM2500Reference
Idle RPM970-2750Reference
Firing order1-3-2Reference
Starter volts12Reference
Coolant capacity6.3 LReference
Coolant change1000 hReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.254 mmReference
Oil capacity4.7 LReference
Oil change100 hReference
Transmission
9-speed partially-synchronized gearReference
Typepartially-synchronized gearReference
Gears9 forward and 3 reverseReference
Clutch215mm mechanical dry discReference
Oil capacity24.0 LReference
Oil typeCub Cadet Hy-TranReference
Oil change200 hReference
Three gears (1-3) plus reverse (R) in three ranges (low, medium, and high). Gear shifts are synchronized using the foot clutch. Tractor must be stopped, and clutch used, to shift range.Reference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
Typeopen centerReference
Pressure147.1 barReference
Pump flow27.3 lpmReference
Steering flow12.1 lpmReference
Rear TypeIReference
Rear lift (at ends)1000 kgReference
Rear lift (at 24"/610mm)749 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2356Reference
Mid PTOliveReference
Mid PTO Type2000 (1.0)Reference
Engine RPM2000@2421Reference
Dimensions
Wheelbase170 cmReference
Weight1204 kgReference
Front tire7.2-16Reference
Rear tire12.4-24Reference
Ag front7.2-16Reference
Ag rear12.4-24Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf rear41x14.00-20Reference
Industrial front27x8.50-15Reference
Industrial rear15-19.5Reference
Length292 cmReference
Width137 cmReference
Height (ROPS)214 cmReference
Max Drawbar379 kgReference
Cub Cadet 7274 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
Cub Cadet 408 Backhoe
Backhoe typeCub Cadet 408 BackhoeReference
Bucket width20 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Digging depth233 cmReference
2-Foot flat digging depth228 cmReference
Reach from pivot284 cmReference
Loading height167 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1134 kgReference
Dipperstick force810 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
