Tractor · 2004Unverified

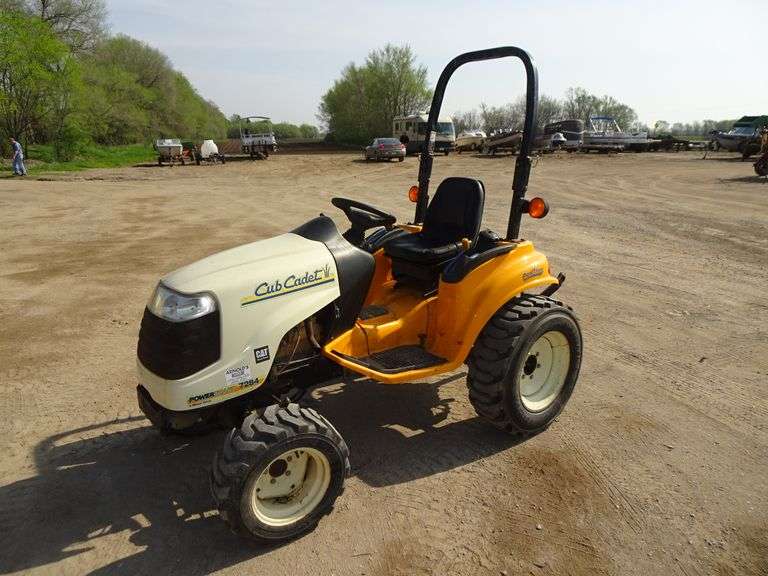

Cub Cadet 7284

Name: Cub Cadet 7284
Brand: Cub Cadet

Cub Cadet 7284 — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.

The Cub Cadet 7284 is a compact tractor with a rated output of 21 hp, produced in 2004. It features a 3-cylinder diesel liquid-cooled engine, and is equipped with a hydrostatic transmission for four-wheel drive. The tractor has a listed weight of 885 kg, and is designed for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

21 hp

Weight

885 kg

Catalogue coverage

Variants represented

Richest spec table

88 rows

Recorded power

21 hp

Recorded weight

885 kg

Transmissions

hydrostatic

Production years

2004-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCub Cadet (a part of MTD)Reference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Dry drum brakesReference

Two-post folding ROPS.Reference

Engine

Caterpillar 1.1L 3-cyl dieselReference

Engine20.9 kWReference

Caterpillar C1.1Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.1 LReference

Bore/Stroke77 x 81 mmReference

Power20.9 kWReference

Fuel systemindirect injectionReference

Compression23:1Reference

Rated RPM3400Reference

Idle RPM1200-3400Reference

Torque67.0 NmReference

Torque RPM2400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity4.9 LReference

Oil change250 hReference

Coolant capacity5.2 LReference

Intake valve clearance0.203 mmReference

Exhaust valve clearance0.203 mmReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil change200 hReference

PTO & Hydraulics

PTO (claimed)15.7 kWReference

Typeopen centerReference

Pressure103.4 barReference

Pump flow18.9 lpmReference

Total flow30.3 lpmReference

Steering flow11.4 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)521 kgReference

Rear lift (at 24"/610mm)430 kgReference

Rear PTOindependentReference

ClutchelectricReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000 (1.00)Reference

Front PTOindependentReference

Front PTO Type2000Reference

Capacities

Fuel22.7 LReference

Front axle2.4 LReference

Dimensions

Wheelbase147 cmReference

Weight885 kgReference

Weight430 kgReference

Lawn/turf front23x9.5-12Reference

Lawn/turf rear31x12-15Reference

Industrial front23x8.5Reference

Industrial rear10x16.5Reference

Length276 cmReference

Width127 cmReference

Height (ROPS)208 cmReference

Ground clearance25 cmReference

Cub Cadet 7284 attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

7284 Serial Numbers

Location:Serial number plate on the right side of the tractor frame, above the front tire.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA500Reference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

Cub Cadet 612 Backhoe

Backhoe typeCub Cadet 612 BackhoeReference

Digging depth198 cmReference

Reach from pivot238 cmReference

Loading height133 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force877 kgReference

Dipperstick force458 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
