Tractor · 2003Unverified

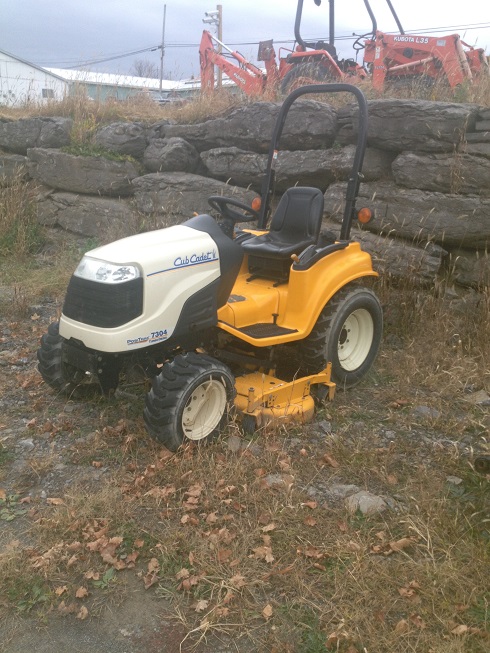

Cub Cadet 7304
Cub Cadet 7304 — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
784 kg
Hover a source tag to verify
Overview
ManufacturerCub CadetReference
Compact Utility tractorReference
Original price$13,200 (2004)Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Dry shoe brakesReference
Two-post foldable ROPS.Reference
Engine
Daihatsu 1.0L 3-cyl dieselReference
Engine22.4 kWReference
Daihatsu DM950DReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke72 x 78 mmReference
Power22.4 kWReference
Fuel systemindirect injectionReference
Air cleanerpaper elmentReference
Rated RPM3600Reference
Idle RPM1200-3600Reference
Starter volts12Reference
Coolant capacity5.0 LReference
Intake valve clearance0.203 mmReference
Exhaust valve clearance0.203 mmReference
Oil capacity3.3 LReference
Oil change150 hReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity24.6 LReference
Oil typeCab Cadet Hy-Trans FluidReference
Oil change200 hReference
Hydrostatic transmission with forward-reverse tredle pedal and high-low range shift. Tractor must be stopped to shift range.Reference
PTO & Hydraulics
PTO (claimed)15.7 kWReference
Hydraulic system24.6 LReference
Typeopen center gear pumpReference
Capacity24.6 LReference
Pressure103.4 barReference
Pump flow18.9 lpmReference
Total flow30.3 lpmReference
Steering flow11.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)521 kgReference
Rear lift (at 24"/610mm)430 kgReference
Rear PTOindependentReference
ClutchelectricReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@3500Reference
Mid PTOindependentReference
Mid PTO Type2000 (1.000)Reference
Capacities
Fuel22.7 LReference
Dimensions
Wheelbase147 cmReference
Weight784 kgReference
Weight430 kgReference
Lawn/turf front23x9.5-12Reference
Lawn/turf rear31x12-15Reference
Industrial front23x8.5Reference
Industrial rear12x16.5Reference
Length231 cmReference
Length276 cmReference
Width121 cmReference
Height142 cmReference
Height (ROPS)208 cmReference
Ground clearance25 cmReference
Cub Cadet 7304 attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps30Reference
Battery CCA500Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
In addition to the mid-mount mowers, the Cub Cadet 7304 was advertised as compatible with 60-inch rear-mount finish mower and 48-inch rotary cutter. Recommended ground tools included a 48-inch box blade, 60-inch rear blade, and 60- or 72-inch tillers.Reference
Cub Cadet 612 Backhoe
Backhoe typeCub Cadet 612 BackhoeReference
Digging depth198 cmReference
Reach from pivot238 cmReference
Loading height133 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force877 kgReference
Dipperstick force458 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
