Tractor · 1998Unverified

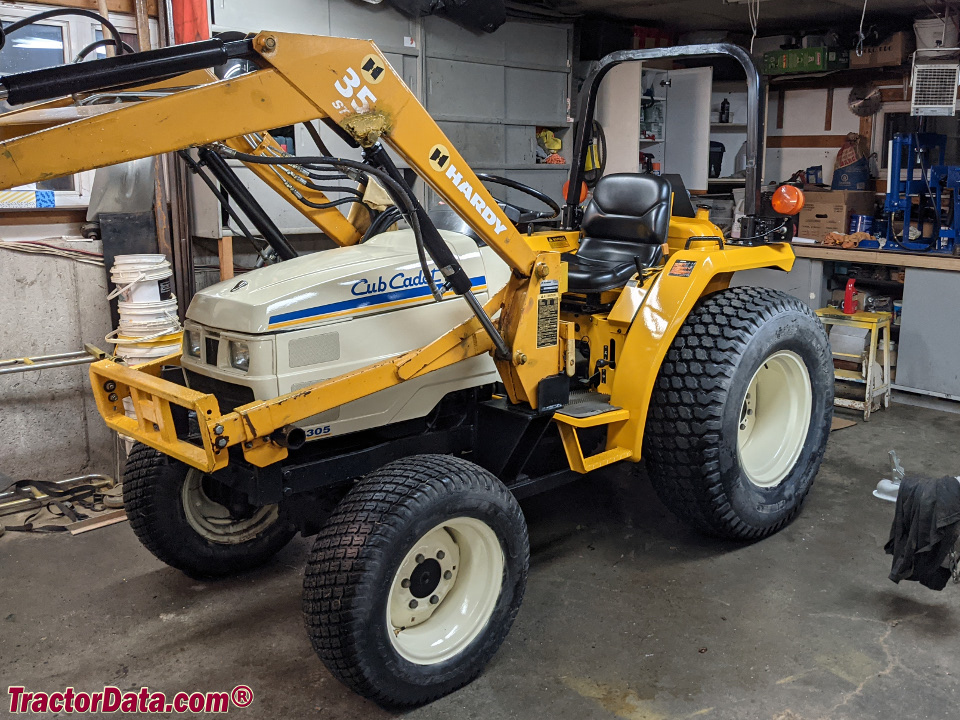

Cub Cadet 7305
Cub Cadet 7305 — Compact Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
2465 to 2685 pounds
Hover a source tag to verify
Overview
ManufacturerCub CadetReference
Compact Utility tractorReference
Original price$15,975 (2000 )Reference
Original price$17,700 (2003 )Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Variants
7300gear driveReference
7305hydrostaticReference
Engine
Mitsubishi 1.5L 3-cyl dieselReference
Engine (gross)22.4 kWReference
Engine (net)20.1 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power (net)20.1 kWReference
Power (gross)22.4 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression18:1Reference
Rated RPM2750Reference
Idle RPM970-2980Reference
Firing order1-3-2Reference
Starter volts12Reference
Starter power1.6 kWReference
Coolant capacity6.3 LReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.254 mmReference
Oil capacity4.7 LReference
Oil change100 hReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Clutch215mm dry discReference
Oil capacity22.0 LReference
PTO & Hydraulics
PTO (claimed)17.9 kWReference
Typeopen centerReference
Pressure147.1 barReference
Valves1 or 2Reference
Pump flow29.9 lpmReference
Total flow43.5 lpmReference
Steering flow13.6 lpmReference
Rear TypeIReference
Controlposition control with optional draft controlReference
Rear lift (at 24"/610mm)749 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2376Reference
Mid PTOliveReference
Mid PTO Type2000Reference
Engine RPM2000@2632Reference
Capacities
Fuel29.9 LReference
Front axle4.0 LReference
Max capacity2199 kgReference
Dimensions
Wheelbase170 cmReference
Weight2465 to 2685 poundsReference
Front tire7.2-16Reference
Rear tire12.4-24Reference
Weight453 kgReference
Ag front7.2-16Reference
Ag rear12.4-24Reference
Lawn/turf front27x10.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front27x8.5-15Reference
Industrial rear15-19.5Reference
Length292 cmReference
Width137 cmReference
Height (ROPS)214 cmReference
Ground clearance32 cmReference
1118 kgReference
Shipping1217 kgReference
Max Drawbar379 kgReference
Max front axle969 kgReference
Max rear axle1349 kgReference
Cub Cadet 7305 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
front-end loaderReference
backhoeReference
7305 Serial Numbers
Location:Serial number plate on the right side of the tractor frame, just behind the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Charging volts12Reference
Battery CCA500Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
Cub Cadet 590-408-100 Backhoe
Backhoe typeCub Cadet 590-408-100 BackhoeReference
Transport height182 cmReference
Bucket width20 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Digging depth228 cmReference
Reach from pivot284 cmReference
Loading height172 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1224 kgReference
Dipperstick force816 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
