Tractor · 2000Unverified

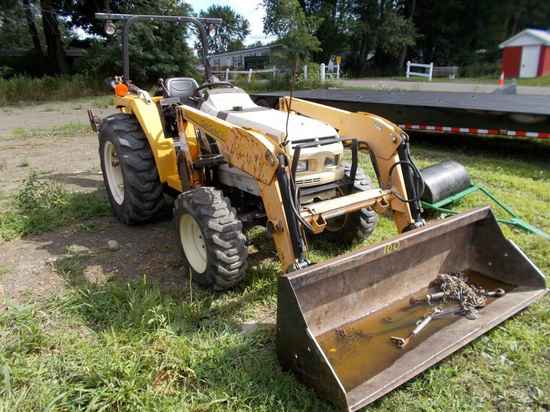

Cub Cadet 7360
Cub Cadet 7360 — Compact Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1450 kg
Hover a source tag to verify
Overview
ManufacturerCub CadetReference
Compact Utility tractorReference
Original price was $19,000 in 2000Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.8L 4-cyl dieselReference
Fuel tank34.8 LReference
Engine26.8 kWReference
MitsubishiReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement1.8 LReference
Bore/Stroke78 x 92 mmReference
Power26.8 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Compression22:1Reference
Rated RPM2700Reference
Idle RPM970-2880Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Coolant capacity7.1 LReference
Oil capacity4.5 LReference
Oil change100 hReference
Transmission
8-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Oil capacity43.1 LReference
Four synchronized gears in four ranges with mechanical shuttle. Tractor must be stopped, and clutch used, to shift range or direction.Reference
PTO & Hydraulics
PTO (claimed)22.0 kWReference
Typeopen centerReference
Pressure166.4 barReference
Pump flow31.4 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Rear lift (at ends)1546 kgReference
Rear lift (at 24"/610mm)929 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2484Reference
Dimensions
Wheelbase183 cmReference
Weight1450 kgReference
Front tire8.3x16Reference
Rear tire13.6x24Reference
Weight453 kgReference
Ag front8.3x16Reference
Ag rear13.6x24Reference
Lawn/turf front29x12.5-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front10x16.5-15Reference
Industrial rear14.9-24Reference
Length329 cmReference
Width148 cmReference
Height (ROPS)214 cmReference
Max weight2849 kgReference
Cub Cadet 7360 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery CCA500Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Cub Cadet 408 Backhoe
Backhoe typeCub Cadet 408 BackhoeReference
Transport height182 cmReference
Bucket width20 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Digging depth228 cmReference
Reach from pivot284 cmReference
Loading height172 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1224 kgReference
Dipperstick force816 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
