Tractor · 2004Unverified

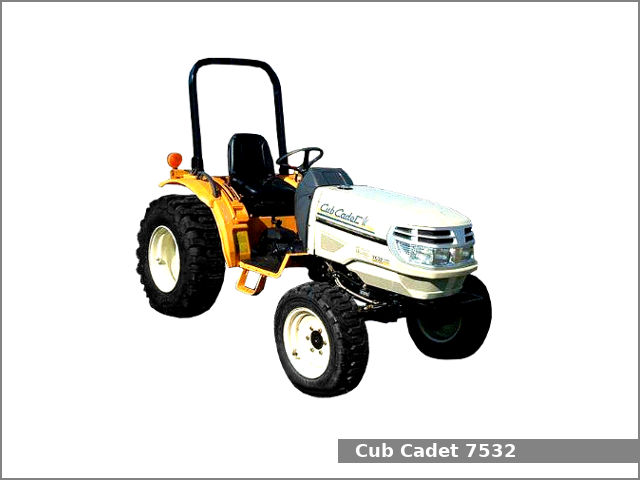

Cub Cadet 7532

Name: Cub Cadet 7532
Brand: Cub Cadet

Cub Cadet 7532 — Compact Utility tractor · 26 hp. Reference specifications; pending source verification.

The Cub Cadet 7532 is a tractor with a rating of approximately 26 hp, placing it at the lighter end of its class. Produced from 2004 to 2010, it features a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its listed operating weight is 1114 kg, suitable for operations of up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

26 hp

Weight

1114 kg

Catalogue coverage

Variants represented

Richest spec table

93 rows

Recorded power

26 hp

Recorded weight

1114 kg

Transmissions

hydrostatic

Production years

2004-2010

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCub CadetReference

ManufacturerMitsubishiReference

Compact Utility tractorReference

Original price was $13,800 in 2007Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Mitsubishi 1.5L 3-cyl dieselReference

Engine23.9 kWReference

Mitsubishi K3MReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

Power23.9 kWReference

Fuel systemBosch pump with DLLA 150 P injectorsReference

Pre-heatingglow plugsReference

Pre-heatingthermostartReference

Compression18:1Reference

Rated RPM2500Reference

Firing order1-3-2Reference

Starter volts12Reference

Coolant capacity5.5 LReference

Intake valve clearance0.254 mmReference

Exhaust valve clearance0.254 mmReference

Oil capacity5.0 LReference

Oil change100 hReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity30.9 LReference

PTO & Hydraulics

PTO (claimed)19.0 kWReference

Hydraulic system31.0 LReference

Typeopen centerReference

Capacity31.0 LReference

Pressure152.0 barReference

Pump flow27.3 lpmReference

Total flow39.7 lpmReference

Steering flow12.5 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1200 kgReference

Rear lift (at 24"/610mm)780 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2376Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Capacities

Fuel26.9 LReference

Front axle4.0 LReference

Dimensions

Wheelbase170 cmReference

Weight1114 kgReference

Front tire7-16Reference

Rear tire11.2-24Reference

Weight432 kgReference

Ag front7-16Reference

Ag rear11.2-24Reference

Lawn/turf front25 x 8.5-14Reference

Lawn/turf rear13.6-16Reference

Industrial front27 x 8.5-15Reference

Industrial rear15 x 19.5Reference

Length307 cmReference

Width137 cmReference

Height (ROPS)214 cmReference

Max Drawbar439 kgReference

Ground clearance32 cmReference

Cub Cadet 7532 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Charging volts12Reference

Battery CCA500Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Cub Cadet 633 Backhoe

Backhoe typeCub Cadet 633 BackhoeReference

Transport height182 cmReference

Bucket width20 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Digging depth228 cmReference

Reach from pivot284 cmReference

Loading height172 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1224 kgReference

Dipperstick force816 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
