Tractor · 2007Unverified

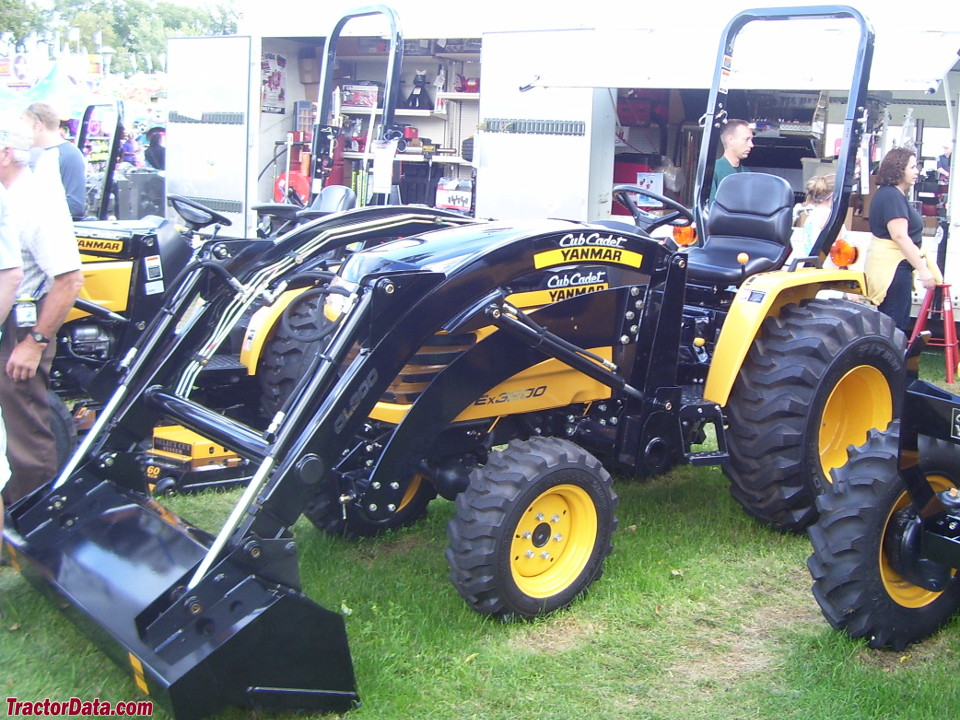

Cub Cadet Ex3200
Cub Cadet Ex3200 — Ex Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
1156 kg
Hover a source tag to verify
Overview
DistributorCub CadetReference
ManufacturerYanmarReference
Compact Utility tractorReference
Original price$17,329 (2009)Reference
Four-wheel driveReference
SteeringpowerReference
Wet disc brakesReference
Foldable ROPS standard. Optional steel cab.Reference
Engine
Yanmar 1.6L 3-cyl dieselReference
Fuel tank23.8 LReference
Engine23.9 kWReference
YanmarReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke88 x 90 mmReference
Power23.9 kWReference
Air cleanerdual dry elementsReference
Rated RPM2600Reference
Oil capacity4.0 LReference
Coolant capacity4.4 LReference
Transmission
HydrostaticReference
TypeHydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity20.4 LReference
PTO & Hydraulics
PTO (claimed)19.0 kWReference
Typeopen centerReference
Pump flow21.2 lpmReference
Total flow37.5 lpmReference
Steering flow16.3 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)498 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTO Type2100Reference
Dimensions
Wheelbase154 cmReference
Weight1156 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Ag front7-14Reference
Ag rear11.2-24Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear13.6-16Reference
Industrial front25x8.5-14Reference
Industrial rear15-19.5Reference
Length278 cmReference
Width150 cmReference
Operating weight1156 kgReference
Ground clearance25 cmReference
Cub Cadet Ex3200 attachments
front-end loaderReference
backhoeReference
Attachment overview
Front-end loaderReference
BackhoeReference
Cub Cadet CB75 Backhoe
Backhoe typeCub Cadet CB75 BackhoeReference
Digging depth226 cmReference
2-Foot flat digging depth220 cmReference
Reach from pivot314 cmReference
Loading height204 cmReference
Bucket force1182 kgReference
Dipperstick force826 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
